Description

template<typename E, typename V = int64_t>
class Sawyer::BitFlags< E, V >

Stores a vector of enum bit flags.

This is a more self-documenting and terse way to use bit flags. For example, consider this original code:

class TableCharacter {
    enum Corner { NONE = 0, LEFT = 1, RIGHT = 2, TOP = 4, BOTTOM = 8 };

    unsigned current; // bit vector of Corner flags for current character
    unsigned previous; // bit vector of Corner flags for previous character

    TableCharacter(): current(NONE), previous(NONE) {}

    void process(unsigned next) { // next is vector of Corner bit flags
        if ((current & LEFT) != 0) {
            previous |= LEFT;
            current &= ~LEFT;
        }
        if ((next & TOP) == 0) {
            current &= ~TOP;
            current |= BOTTOM;
        }
    }
};

Now rewritten to use this class:

class TableCharacter {
    enum Corner { NONE = 0, LEFT = 1, RIGHT = 2, TOP = 4, BOTTOM = 8 };

    BitFlags<Corner> current;
    BitFlags<Corner> previous;

    TableCharacters(): current(NONE), previous(NONE) {}

    void process(BitFlags<Corner> next) {
        if (current.testAndClear(LEFT))
            previous.set(LEFT);
        if (next.isClear(TOP))
            current.clear(TOP).set(BOTTOM);
    }
};

Definition at line 63 of file Sawyer/BitFlags.h.

#include <Sawyer/BitFlags.h>

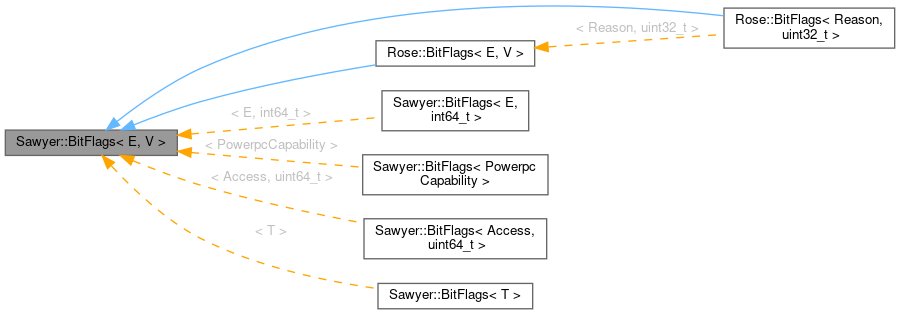

Inheritance diagram for Sawyer::BitFlags< E, V >:

[legend]

Public Types
typedef E	Enum

typedef V	Vector

Public Member Functions
	BitFlags ()
	Default constructor with all bits clear.

	BitFlags (Vector v)
	Construct bit vector from value or bit.

	BitFlags (E e)

	BitFlags (const BitFlags &other)
	Copy constructor.

Vector	vector () const
	Current value of the bit vector.

bool	isSet (Enum e) const
	Test whether a bit is set.

bool	isAllSet (BitFlags other) const
	True if all specified bits are set.

bool	isAnySet (BitFlags other) const
	True if any of the specified bits are set.

bool	isAnySet () const
	True if any bit is set.

bool	isEmpty () const
	True if no bits are set.

bool	isClear (Enum e) const
	Test whether a bit is clear.

bool	isAllClear (const BitFlags other) const
	True if all specified bits are clear.

bool	isAnyClear (const BitFlags other) const
	True if any specified bit is clear.

BitFlags &	set (Enum e)
	Set the specified bit.

BitFlags &	set (BitFlags other)
	Set all bits that are set in `other`.

BitFlags &	clear (Enum e)
	Clear the specified bit.

BitFlags &	clear (BitFlags other)
	Clear all bits that are set in `other`.

BitFlags &	clear ()
	Clear all bits.

bool	testAndClear (Enum e)
	Test whether a bit is set, then clear it.

bool	testAndSet (Enum e)
	Test whether a bit is set, then set it.

BitFlags &	operator= (Vector v)
	Set the vector to an exact value.

BitFlags &	operator= (BitFlags other)
	Set the vector to the same as another.

std::vector< Enum >	split (std::vector< int64_t > constants, Vector &leftovers) const
	Split a vector into the individual enum values.

std::vector< Enum >	split () const
	Split a vector into the individual bits values.


BitFlags	operator\| (BitFlags other) const
	Create a new vector that's the union of two vectors.

BitFlags	operator\| (Enum e) const
	Create a new vector that's the union of two vectors.


BitFlags	intersection (BitFlags other) const
	Create a new vector that's the intersection of two vectors.

BitFlags	intersection (Enum e) const
	Create a new vector that's the intersection of two vectors.

BitFlags	operator& (BitFlags other) const
	Create a new vector that's the intersection of two vectors.

BitFlags	operator& (Enum e) const
	Create a new vector that's the intersection of two vectors.


bool	operator== (BitFlags other) const
	Compare two vectors.

bool	operator!= (BitFlags other) const
	Compare two vectors.

bool	operator< (BitFlags other) const
	Compare two vectors.

bool	operator<= (BitFlags other) const
	Compare two vectors.

bool	operator> (BitFlags other) const
	Compare two vectors.

bool	operator>= (BitFlags other) const
	Compare two vectors.

Member Typedef Documentation

◆ Enum

template<typename E , typename V = int64_t>

typedef E Sawyer::BitFlags< E, V >::Enum

Definition at line 65 of file Sawyer/BitFlags.h.

◆ Vector

template<typename E , typename V = int64_t>

typedef V Sawyer::BitFlags< E, V >::Vector

Definition at line 66 of file Sawyer/BitFlags.h.

Constructor & Destructor Documentation

◆ BitFlags() [1/4]

template<typename E , typename V = int64_t>

Sawyer::BitFlags< E, V >::BitFlags ( )

inline

Default constructor with all bits clear.

Definition at line 93 of file Sawyer/BitFlags.h.

◆ BitFlags() [2/4]

template<typename E , typename V = int64_t>

Sawyer::BitFlags< E, V >::BitFlags ( Vector v )

inline

Construct bit vector from value or bit.

Definition at line 97 of file Sawyer/BitFlags.h.

◆ BitFlags() [3/4]

template<typename E , typename V = int64_t>

Sawyer::BitFlags< E, V >::BitFlags ( E e )

inline

Definition at line 100 of file Sawyer/BitFlags.h.

◆ BitFlags() [4/4]

template<typename E , typename V = int64_t>

Sawyer::BitFlags< E, V >::BitFlags ( const BitFlags< E, V > & other )

inline

Copy constructor.

Definition at line 104 of file Sawyer/BitFlags.h.

Member Function Documentation

◆ vector()

template<typename E , typename V = int64_t>

Vector Sawyer::BitFlags< E, V >::vector ( ) const

inline

Current value of the bit vector.

Definition at line 108 of file Sawyer/BitFlags.h.

Referenced by Rose::BitFlags< E, V >::toString().

◆ isSet()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isSet ( Enum e ) const

inline

Test whether a bit is set.

Definition at line 113 of file Sawyer/BitFlags.h.

Referenced by Sawyer::BitFlags< E, V >::isClear(), Sawyer::BitFlags< E, V >::split(), Sawyer::BitFlags< E, V >::testAndClear(), Sawyer::BitFlags< E, V >::testAndSet(), and Rose::BinaryAnalysis::Debugger::Base::trace().

◆ isAllSet()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isAllSet ( BitFlags< E, V > other ) const

inline

True if all specified bits are set.

Definition at line 118 of file Sawyer/BitFlags.h.

◆ isAnySet() [1/2]

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isAnySet ( BitFlags< E, V > other ) const

inline

True if any of the specified bits are set.

Definition at line 123 of file Sawyer/BitFlags.h.

◆ isAnySet() [2/2]

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isAnySet ( ) const

inline

True if any bit is set.

Definition at line 128 of file Sawyer/BitFlags.h.

◆ isEmpty()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isEmpty ( ) const

inline

True if no bits are set.

Definition at line 133 of file Sawyer/BitFlags.h.

◆ isClear()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isClear ( Enum e ) const

inline

Test whether a bit is clear.

Definition at line 138 of file Sawyer/BitFlags.h.

References Sawyer::BitFlags< E, V >::isSet().

Referenced by Rose::BinaryAnalysis::Debugger::Base::trace().

◆ isAllClear()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isAllClear ( const BitFlags< E, V > other ) const

inline

True if all specified bits are clear.

Definition at line 143 of file Sawyer/BitFlags.h.

◆ isAnyClear()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::isAnyClear ( const BitFlags< E, V > other ) const

inline

True if any specified bit is clear.

Definition at line 148 of file Sawyer/BitFlags.h.

◆ set() [1/2]

template<typename E , typename V = int64_t>

BitFlags & Sawyer::BitFlags< E, V >::set ( Enum e )

inline

Set the specified bit.

Definition at line 153 of file Sawyer/BitFlags.h.

Referenced by Sawyer::BitFlags< E, V >::testAndSet().

◆ set() [2/2]

template<typename E , typename V = int64_t>

BitFlags & Sawyer::BitFlags< E, V >::set ( BitFlags< E, V > other )

inline

Set all bits that are set in other.

Definition at line 159 of file Sawyer/BitFlags.h.

◆ clear() [1/3]

template<typename E , typename V = int64_t>

BitFlags & Sawyer::BitFlags< E, V >::clear ( Enum e )

inline

Clear the specified bit.

Definition at line 165 of file Sawyer/BitFlags.h.

◆ clear() [2/3]

template<typename E , typename V = int64_t>

BitFlags & Sawyer::BitFlags< E, V >::clear ( BitFlags< E, V > other )

inline

Clear all bits that are set in other.

Definition at line 171 of file Sawyer/BitFlags.h.

◆ clear() [3/3]

template<typename E , typename V = int64_t>

BitFlags & Sawyer::BitFlags< E, V >::clear ( )

inline

Clear all bits.

Definition at line 177 of file Sawyer/BitFlags.h.

Referenced by Sawyer::BitFlags< E, V >::testAndClear().

◆ testAndClear()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::testAndClear ( Enum e )

inline

Test whether a bit is set, then clear it.

Definition at line 183 of file Sawyer/BitFlags.h.

References Sawyer::BitFlags< E, V >::clear(), and Sawyer::BitFlags< E, V >::isSet().

◆ testAndSet()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::testAndSet ( Enum e )

inline

Test whether a bit is set, then set it.

Definition at line 190 of file Sawyer/BitFlags.h.

References Sawyer::BitFlags< E, V >::isSet(), and Sawyer::BitFlags< E, V >::set().

◆ operator=() [1/2]

template<typename E , typename V = int64_t>

BitFlags & Sawyer::BitFlags< E, V >::operator= ( Vector v )

inline

Set the vector to an exact value.

Definition at line 197 of file Sawyer/BitFlags.h.

◆ operator=() [2/2]

template<typename E , typename V = int64_t>

BitFlags & Sawyer::BitFlags< E, V >::operator= ( BitFlags< E, V > other )

inline

Set the vector to the same as another.

Definition at line 203 of file Sawyer/BitFlags.h.

◆ operator|() [1/2]

template<typename E , typename V = int64_t>

BitFlags Sawyer::BitFlags< E, V >::operator| ( BitFlags< E, V > other ) const

inline

Create a new vector that's the union of two vectors.

Definition at line 211 of file Sawyer/BitFlags.h.

◆ operator|() [2/2]

template<typename E , typename V = int64_t>

BitFlags Sawyer::BitFlags< E, V >::operator| ( Enum e ) const

inline

Create a new vector that's the union of two vectors.

Definition at line 214 of file Sawyer/BitFlags.h.

◆ intersection() [1/2]

template<typename E , typename V = int64_t>

BitFlags Sawyer::BitFlags< E, V >::intersection ( BitFlags< E, V > other ) const

inline

Create a new vector that's the intersection of two vectors.

Definition at line 222 of file Sawyer/BitFlags.h.

Referenced by Sawyer::BitFlags< E, V >::operator&(), and Sawyer::BitFlags< E, V >::operator&().

◆ intersection() [2/2]

template<typename E , typename V = int64_t>

BitFlags Sawyer::BitFlags< E, V >::intersection ( Enum e ) const

inline

Create a new vector that's the intersection of two vectors.

Definition at line 225 of file Sawyer/BitFlags.h.

◆ operator&() [1/2]

template<typename E , typename V = int64_t>

BitFlags Sawyer::BitFlags< E, V >::operator& ( BitFlags< E, V > other ) const

inline

Create a new vector that's the intersection of two vectors.

Definition at line 228 of file Sawyer/BitFlags.h.

References Sawyer::BitFlags< E, V >::intersection().

◆ operator&() [2/2]

template<typename E , typename V = int64_t>

BitFlags Sawyer::BitFlags< E, V >::operator& ( Enum e ) const

inline

Create a new vector that's the intersection of two vectors.

Definition at line 231 of file Sawyer/BitFlags.h.

References Sawyer::BitFlags< E, V >::intersection().

◆ operator==()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::operator== ( BitFlags< E, V > other ) const

inline

Compare two vectors.

Definition at line 239 of file Sawyer/BitFlags.h.

◆ operator!=()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::operator!= ( BitFlags< E, V > other ) const

inline

Compare two vectors.

Definition at line 242 of file Sawyer/BitFlags.h.

◆ operator<()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::operator< ( BitFlags< E, V > other ) const

inline

Compare two vectors.

Definition at line 245 of file Sawyer/BitFlags.h.

◆ operator<=()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::operator<= ( BitFlags< E, V > other ) const

inline

Compare two vectors.

Definition at line 248 of file Sawyer/BitFlags.h.

◆ operator>()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::operator> ( BitFlags< E, V > other ) const

inline

Compare two vectors.

Definition at line 251 of file Sawyer/BitFlags.h.

◆ operator>=()

template<typename E , typename V = int64_t>

bool Sawyer::BitFlags< E, V >::operator>= ( BitFlags< E, V > other ) const

inline

Compare two vectors.

Definition at line 254 of file Sawyer/BitFlags.h.

◆ split() [1/2]

template<typename E , typename V = int64_t>

std::vector< Enum > Sawyer::BitFlags< E, V >::split	(	std::vector< int64_t >	constants,
		Vector &	leftovers
	)		const

inline

Split a vector into the individual enum values.

The enum constants are first sorted so that those with more set bits appear before those with fewer bits. Then each constant is searched in the bit vector and those bits are removed. This continues until either no bits remain or no matching constant is found. The leftovers is set to those bits that could not be matched by this process.

Definition at line 264 of file Sawyer/BitFlags.h.

◆ split() [2/2]

template<typename E , typename V = int64_t>

std::vector< Enum > Sawyer::BitFlags< E, V >::split ( ) const

inline

Split a vector into the individual bits values.

Definition at line 287 of file Sawyer/BitFlags.h.

References Sawyer::BitFlags< E, V >::isSet().

Referenced by Rose::BitFlags< E, V >::toString().

The documentation for this class was generated from the following file:

Sawyer/BitFlags.h

Description

Public Types

Public Member Functions

Member Typedef Documentation

◆ Enum

◆ Vector

Constructor & Destructor Documentation

◆ BitFlags() [1/4]

◆ BitFlags() [2/4]

◆ BitFlags() [3/4]

◆ BitFlags() [4/4]

Member Function Documentation

◆ vector()

◆ isSet()

◆ isAllSet()

◆ isAnySet() [1/2]

◆ isAnySet() [2/2]

◆ isEmpty()

◆ isClear()

◆ isAllClear()

◆ isAnyClear()

◆ set() [1/2]

◆ set() [2/2]

◆ clear() [1/3]

◆ clear() [2/3]

◆ clear() [3/3]

◆ testAndClear()

◆ testAndSet()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator|() [1/2]

◆ operator|() [2/2]

◆ intersection() [1/2]

◆ intersection() [2/2]

◆ operator&() [1/2]

◆ operator&() [2/2]

◆ operator==()

◆ operator!=()

◆ operator<()

◆ operator<=()

◆ operator>()

◆ operator>=()

◆ split() [1/2]

◆ split() [2/2]
