Description

This class represents modifiers for SgDeclaration (declaration statements).

See also: Example of using a SgDeclarationModifier object

Definition at line 17973 of file Cxx_Grammar.h.

Inheritance diagram for SgDeclarationModifier:

[legend]

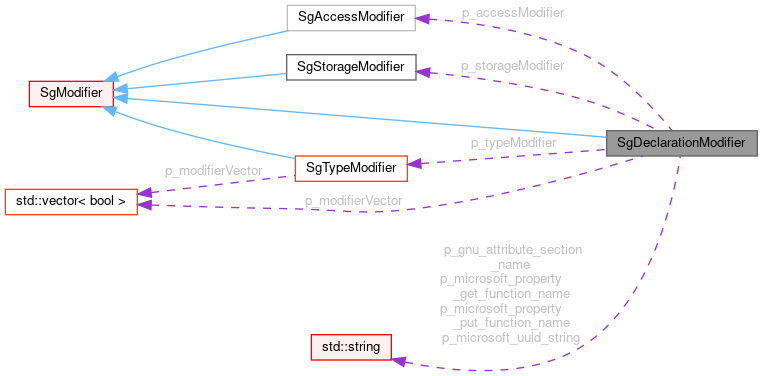

Collaboration diagram for SgDeclarationModifier:

[legend]

Public Types
enum	declaration_modifier_enum { e_unknown = 0 , e_default = 1 , e_friend = 2 , e_typedef = 3 , e_export = 4 , e_throw = 5 , e_bind = 6 , e_final = 7 , e_override = 8 , e_java_abstract = 9 , e_jovial_def = 10 , e_jovial_ref = 11 , e_jovial_static = 12 , e_ms_declspec_align = 13 , e_ms_declspec_allocate = 14 , e_ms_declspec_appdomain = 15 , e_ms_declspec_code_seg = 16 , e_ms_declspec_deprecated = 17 , e_ms_declspec_dllimport = 18 , e_ms_declspec_dllexport = 19 , e_ms_declspec_jitintrinsic = 20 , e_ms_declspec_naked = 21 , e_ms_declspec_noalias = 22 , e_ms_declspec_noinline = 23 , e_ms_declspec_noreturn = 24 , e_ms_declspec_nothrow = 25 , e_ms_declspec_novtable = 26 , e_ms_declspec_process = 27 , e_ms_declspec_property = 28 , e_ms_declspec_restrict = 29 , e_ms_declspec_safebuffers = 30 , e_ms_declspec_selectany = 31 , e_ms_declspec_thread = 32 , e_ms_declspec_uuid = 33 , e_ada_abstract = 34 , e_ada_limited = 35 , e_ada_tagged = 36 , e_ada_separate = 37 , e_last_modifier }
	Declaration Modifiers (only one value can be specified) More...

enum	gnu_declaration_visability_enum { e_unknown_visibility = 0 , e_error_visibility = 1 , e_unspecified_visibility = 2 , e_hidden_visibility = 3 , e_protected_visibility = 4 , e_internal_visibility = 5 , e_default_visibility = 6 , e_last_visibility_attribute }
	GNU attribute for visability (only one value can be specified) More...

enum	{ static_variant = V_SgDeclarationModifier }
	static variant value More...

typedef SgModifier	base_node_type

Public Types inherited from SgModifier
enum	{ static_variant = V_SgModifier }
	static variant value More...

typedef SgSupport	base_node_type

Public Types inherited from SgSupport
enum	{ static_variant = V_SgSupport }
	static variant value More...

typedef SgNode	base_node_type

Public Types inherited from SgNode
enum	{ static_variant = V_SgNode }
	static variant value More...

enum	{ static_variant = V_SgNode }
	static variant value More...

Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const override

	SgDeclarationModifier (const SgDeclarationModifier &X)

SgDeclarationModifier &	operator= (const SgDeclarationModifier &X)
	This is the assignment operator.

void	post_construction_initialization () override
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

SgTypeModifier &	get_typeModifier ()

SgAccessModifier &	get_accessModifier ()

SgStorageModifier &	get_storageModifier ()

const SgTypeModifier &	get_typeModifier () const

const SgAccessModifier &	get_accessModifier () const

const SgStorageModifier &	get_storageModifier () const

bool	isUnknown () const
	Declaration modifier is unknown (not set).

void	setUnknown ()
	Set bit flag.

void	unsetUnknown ()
	Clear (unset) bit flag.

bool	isDefault () const
	Declaration modifier is default (default setting).

void	setDefault ()
	Set bit flag.

void	unsetDefault ()
	Clear (unset) bit flag.

bool	isFriend () const
	declaration modifier is friend.

void	setFriend ()
	Set bit flag.

void	unsetFriend ()
	Clear (unset) bit flag.

bool	isTypedef () const
	Declaration modifier is a typedef.

void	setTypedef ()
	Set bit flag.

void	unsetTypedef ()
	Clear (unset) bit flag.

bool	isExport () const
	Declaration modifier is export.

void	setExport ()
	Set bit flag.

void	unsetExport ()
	Clear (unset) bit flag.

bool	isThrow () const
	Declaration modifier is throw.

void	setThrow ()
	Set bit flag.

void	unsetThrow ()
	Clear (unset) bit flag.

bool	isBind () const

void	setBind ()

void	unsetBind ()

bool	isFinal () const

void	setFinal ()

void	unsetFinal ()

bool	isOverride () const

void	setOverride ()

void	unsetOverride ()

bool	isJavaAbstract () const

void	setJavaAbstract ()

void	unsetJavaAbstract ()

bool	isJovialDef () const

void	setJovialDef ()

void	unsetJovialDef ()

bool	isJovialRef () const

void	setJovialRef ()

void	unsetJovialRef ()

bool	isJovialStatic () const

void	setJovialStatic ()

void	unsetJovialStatic ()

bool	is_ms_declspec_align () const

void	set_ms_declspec_align ()

void	unset_ms_declspec_align ()

bool	is_ms_declspec_allocate () const

void	set_ms_declspec_allocate ()

void	unset_ms_declspec_allocate ()

bool	is_ms_declspec_appdomain () const

void	set_ms_declspec_appdomain ()

void	unset_ms_declspec_appdomain ()

bool	is_ms_declspec_code_seg () const

void	set_ms_declspec_code_seg ()

void	unset_ms_declspec_code_seg ()

bool	is_ms_declspec_deprecated () const

void	set_ms_declspec_deprecated ()

void	unset_ms_declspec_deprecated ()

bool	is_ms_declspec_dllimport () const

void	set_ms_declspec_dllimport ()

void	unset_ms_declspec_dllimport ()

bool	is_ms_declspec_dllexport () const

void	set_ms_declspec_dllexport ()

void	unset_ms_declspec_dllexport ()

bool	is_ms_declspec_jitintrinsic () const

void	set_ms_declspec_jitintrinsic ()

void	unset_ms_declspec_jitintrinsic ()

bool	is_ms_declspec_naked () const

void	set_ms_declspec_naked ()

void	unset_ms_declspec_naked ()

bool	is_ms_declspec_noalias () const

void	set_ms_declspec_noalias ()

void	unset_ms_declspec_noalias ()

bool	is_ms_declspec_noinline () const

void	set_ms_declspec_noinline ()

void	unset_ms_declspec_noinline ()

bool	is_ms_declspec_noreturn () const

void	set_ms_declspec_noreturn ()

void	unset_ms_declspec_noreturn ()

bool	is_ms_declspec_nothrow () const

void	set_ms_declspec_nothrow ()

void	unset_ms_declspec_nothrow ()

bool	is_ms_declspec_novtable () const

void	set_ms_declspec_novtable ()

void	unset_ms_declspec_novtable ()

bool	is_ms_declspec_process () const

void	set_ms_declspec_process ()

void	unset_ms_declspec_process ()

bool	is_ms_declspec_property () const

void	set_ms_declspec_property ()

void	unset_ms_declspec_property ()

bool	is_ms_declspec_restrict () const

void	set_ms_declspec_restrict ()

void	unset_ms_declspec_restrict ()

bool	is_ms_declspec_safebuffers () const

void	set_ms_declspec_safebuffers ()

void	unset_ms_declspec_safebuffers ()

bool	is_ms_declspec_selectany () const

void	set_ms_declspec_selectany ()

void	unset_ms_declspec_selectany ()

bool	is_ms_declspec_thread () const

void	set_ms_declspec_thread ()

void	unset_ms_declspec_thread ()

bool	is_ms_declspec_uuid () const

void	set_ms_declspec_uuid ()

void	unset_ms_declspec_uuid ()

bool	isAdaAbstract () const

void	setAdaAbstract ()

void	unsetAdaAbstract ()

bool	isAdaLimited () const

void	setAdaLimited ()

void	unsetAdaLimited ()

bool	isAdaTagged () const

void	setAdaTagged ()

void	unsetAdaTagged ()

bool	isAdaSeparate () const

void	setAdaSeparate ()

void	unsetAdaSeparate ()

std::string	displayString () const

void	display (std::string label) const

void	reset ()

virtual std::string	class_name () const override
	returns a string representing the class name

virtual VariantT	variantT () const override
	returns new style SageIII enum values

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

virtual std::vector< SgNode * >	get_traversalSuccessorContainer () override
	container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

virtual std::vector< std::string >	get_traversalSuccessorNamesContainer () override
	container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

virtual size_t	get_numberOfTraversalSuccessors () override
	return number of children in the traversal successor list

virtual SgNode *	get_traversalSuccessorByIndex (size_t idx) override
	index-based access to traversal successors by index number

virtual size_t	get_childIndex (SgNode *child) override
	index-based access to traversal successors by child node

virtual RTIReturnType	roseRTI () override
	return C++ Runtime-Time-Information

virtual const char *	sage_class_name () const override

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

virtual void	accept (ROSE_VisitorPattern &visitor) override
	support for the classic visitor pattern done in GoF

virtual bool	isInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual void	checkDataMemberPointersIfInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const override
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *) override
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

virtual long	getChildIndex (SgNode *childNode) const override
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

	SgDeclarationModifier (const SgDeclarationModifierStorageClass &source)
	IR node constructor to support AST File I/O.

SgDeclarationModifier *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

SgBitVector	get_modifierVector () const

void	set_modifierVector (SgBitVector modifierVector)

std::string	get_gnu_attribute_section_name () const

void	set_gnu_attribute_section_name (std::string gnu_attribute_section_name)

SgDeclarationModifier::gnu_declaration_visability_enum	get_gnu_attribute_visability () const

void	set_gnu_attribute_visability (SgDeclarationModifier::gnu_declaration_visability_enum gnu_attribute_visability)

std::string	get_microsoft_uuid_string () const

void	set_microsoft_uuid_string (std::string microsoft_uuid_string)

std::string	get_microsoft_property_get_function_name () const

void	set_microsoft_property_get_function_name (std::string microsoft_property_get_function_name)

std::string	get_microsoft_property_put_function_name () const

void	set_microsoft_property_put_function_name (std::string microsoft_property_put_function_name)

virtual	~SgDeclarationModifier ()
	This is the destructor.

	SgDeclarationModifier ()
	This is the constructor.

Public Member Functions inherited from SgModifier
	SgModifier (const SgModifier &X)

SgModifier &	operator= (const SgModifier &X)
	This is the assignment operator.

bool	checkBit (unsigned int bit, const SgBitVector &bitVector) const
	This function returns the value of the bit in the STL vector<bool> object.

void	setBit (unsigned int bit, SgBitVector &bitVector) const
	This function sets the bit in the STL vector<bool> object (sets value to true).

void	unsetBit (unsigned int bit, SgBitVector &bitVector) const
	This function clears the bit in the STL vector<bool> object (sets value to false).

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgModifier (const SgModifierStorageClass &source)
	IR node constructor to support AST File I/O.

SgModifier *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

virtual	~SgModifier ()
	This is the destructor.

	SgModifier ()
	This is the constructor.

Public Member Functions inherited from SgSupport
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgSupport (const SgSupportStorageClass &source)
	IR node constructor to support AST File I/O.

SgSupport *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

virtual	~SgSupport ()
	This is the destructor.

	SgSupport ()
	This is the constructor.

Public Member Functions inherited from SgNode
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

int	variant () const
	Older version function returns enum value "NODE".

virtual void	addNewAttribute (std::string s, AstAttribute *a)
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a)
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a)
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s)
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const
	Returns the number of attributes on this IR node.

virtual AstAttributeMechanism *	get_attributeMechanism () const
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

virtual void	set_attributeMechanism (AstAttributeMechanism *a)
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const

virtual Sg_File_Info *	get_file_info (void) const
	File information containing filename, line number, column number, and if the SgNode is a part of a new transformation, etc.

virtual Sg_File_Info *	get_startOfConstruct (void) const
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

virtual	~SgNode ()
	This is the destructor.

	SgNode ()
	This is the constructor.

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

int	variant () const

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

virtual void	addNewAttribute (std::string s, AstAttribute *a)
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a)
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a)
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s)
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const
	Returns the number of attributes on this IR node.

virtual AstAttributeMechanism *	get_attributeMechanism () const
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

virtual void	set_attributeMechanism (AstAttributeMechanism *a)
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const

virtual Sg_File_Info *	get_file_info (void) const
	File information containing filename, line number, column number, and if the SgNode is a part of a new transformation, etc.

virtual Sg_File_Info *	get_startOfConstruct (void) const
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

Static Public Member Functions
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgDeclarationModifier *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgDeclarationModifier *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgDeclarationModifier *sgnode)

Static Public Member Functions inherited from SgModifier
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgModifier *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgModifier *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgModifier *sgnode)

Static Public Member Functions inherited from SgSupport
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgSupport *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgSupport *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgSupport *sgnode)

Static Public Member Functions inherited from SgNode
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

Protected Attributes
SgBitVector	p_modifierVector
	Bit vector permitting specification of flags for friend, typedef, export, throw.

SgTypeModifier	p_typeModifier
	Modifier for type information.

SgAccessModifier	p_accessModifier
	Modifier for access information (only set for declarations in class and struct definitions)

SgStorageModifier	p_storageModifier
	Modified for storage information.

std::string	p_gnu_attribute_section_name

SgDeclarationModifier::gnu_declaration_visability_enum	p_gnu_attribute_visability

std::string	p_microsoft_uuid_string

std::string	p_microsoft_property_get_function_name

std::string	p_microsoft_property_put_function_name

Protected Attributes inherited from SgNode
SgNode *	p_parent
	This is the pointer to the parent IR node in the AST.

bool	p_isModified
	Records if IR node has been modified (data members reset).

bool	p_containsTransformation

SgNode *	p_freepointer
	This is the pointer to the chain of previously freed objects.

Additional Inherited Members
Protected Member Functions inherited from SgNode
virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

Static Protected Attributes inherited from SgNode
static std::vector< std::tuple< unsigned char *, unsigned, VariantT > >	all_pools

static SgFunctionTypeTable *	p_globalFunctionTypeTable
	Pointer to symbol table specific to function types.

static SgTypeTable *	p_globalTypeTable

static std::map< SgNode *, std::string >	p_globalMangledNameMap
	Cache of mangled names to avoid regeneration of previously build mangled names or parts of mangled names. This is a performance optimization.

static std::map< std::string, uint64_t >	p_shortMangledNameCache
	STL map used as a cache to shorten generated mangled names. This is mostly a space optimization ofr mangled names of templates.

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForNames

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTypes

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTemplateHeaders

static std::map< SgNode *, std::string >	p_globalTypeNameMap

static std::map< SgNode , std::map< SgNode , std::string > >	p_globalQualifiedNameMapForMapsOfTypes

Member Typedef Documentation

◆ base_node_type

typedef SgModifier SgDeclarationModifier::base_node_type

Definition at line 18672 of file Cxx_Grammar.h.

Member Enumeration Documentation

◆ declaration_modifier_enum

enum SgDeclarationModifier::declaration_modifier_enum

Declaration Modifiers (only one value can be specified)

Modifier information about (friend, typedef, export, and throw).

Enumerator
e_unknown	Unknown value (error)
e_default	Default value
e_friend	Friend qualifier
e_typedef	Typedef qualifier (not clear if this is used, I don't think typedef is a modifier)
e_export	Export qualifier
e_throw	Exception handling support (throw)
e_bind	Fortran bind attribute for declarations (functions, variable, and classes)
e_final	PHP, Java, and C++11 support for specification to not be extended
e_override	C++11 support for specification to not be extended
e_java_abstract	abstract keyword for Java functions, classes and interfaces
e_jovial_def	Definition specification for Jovial declarations
e_jovial_ref	Reference specification for Jovial declarations
e_jovial_static	Explicitly marked as STATIC in Jovial
e_ms_declspec_align	Microsoft declspec() attributes
e_ms_declspec_allocate	Microsoft declspec() attributes
e_ms_declspec_appdomain	Microsoft declspec() attributes
e_ms_declspec_code_seg	Microsoft declspec() attributes
e_ms_declspec_deprecated	Microsoft declspec() attributes
e_ms_declspec_dllimport	Microsoft declspec() attributes
e_ms_declspec_dllexport	Microsoft declspec() attributes
e_ms_declspec_jitintrinsic	Microsoft declspec() attributes
e_ms_declspec_naked	Microsoft declspec() attributes
e_ms_declspec_noalias	Microsoft declspec() attributes
e_ms_declspec_noinline	Microsoft declspec() attributes
e_ms_declspec_noreturn	Microsoft declspec() attributes
e_ms_declspec_nothrow	Microsoft declspec() attributes
e_ms_declspec_novtable	Microsoft declspec() attributes
e_ms_declspec_process	Microsoft declspec() attributes
e_ms_declspec_property	Microsoft declspec() attributes
e_ms_declspec_restrict	Microsoft declspec() attributes
e_ms_declspec_safebuffers	Microsoft declspec() attributes
e_ms_declspec_selectany	Microsoft declspec() attributes
e_ms_declspec_thread	Microsoft declspec() attributes
e_ms_declspec_uuid	Microsoft declspec() attributes
e_ada_abstract	Ada abstract declaration
e_ada_limited	Ada limited declaration
e_ada_tagged	Ada tagged declaration
e_ada_separate	Ada separate declaration
e_last_modifier	last modifier value (upper bound on range of values, used in error checking)

Definition at line 17993 of file Cxx_Grammar.h.

◆ gnu_declaration_visability_enum

enum SgDeclarationModifier::gnu_declaration_visability_enum

GNU attribute for visability (only one value can be specified)

visability values are: default, hidden, protected or internal visibility.

Enumerator
e_unknown_visibility	Unknown value (error)
e_error_visibility	Error value (error)
e_unspecified_visibility	Unspecified visibility (not the default value)
e_hidden_visibility	hidden visibility
e_protected_visibility	protected visibility
e_internal_visibility	internal visibility (not clear if this is used, I don't think typedef is a modifier)
e_default_visibility	default visibility
e_last_visibility_attribute	last visibility attribute (upper bound on range of values, used in error checking)

Definition at line 18051 of file Cxx_Grammar.h.

◆ anonymous enum

anonymous enum

static variant value

Definition at line 18293 of file Cxx_Grammar.h.

Constructor & Destructor Documentation

◆ ~SgDeclarationModifier()

SgDeclarationModifier::~SgDeclarationModifier ( )

virtual

This is the destructor.

There is nothing to delete in this object.

◆ SgDeclarationModifier()

SgDeclarationModifier::SgDeclarationModifier ( )

This is the constructor.

This constructor builds the SgDeclarationModifier base class.

See also: Example:create an SgDeclarationModifier object

Member Function Documentation

◆ copy()

virtual SgNode * SgDeclarationModifier::copy ( SgCopyHelp & help ) const

overridevirtual

Reimplemented from SgModifier.

◆ operator=()

SgDeclarationModifier::operator= ( const SgDeclarationModifier & X )

This is the assignment operator.

This is a simple assignment of the SgBitVector from X to the current object.

◆ post_construction_initialization()

void SgDeclarationModifier::post_construction_initialization ( )

overridevirtual

Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

Reimplemented from SgNode.

◆ isUnknown()

SgDeclarationModifier::isUnknown ( ) const

Declaration modifier is unknown (not set).

Returns: Returns bool.

◆ setUnknown()

SgDeclarationModifier::setUnknown ( )

Set bit flag.

Returns: Returns void.

◆ unsetUnknown()

SgDeclarationModifier::unsetUnknown ( )

Clear (unset) bit flag.

Returns: Returns void.

◆ isDefault()

SgDeclarationModifier::isDefault ( ) const

Declaration modifier is default (default setting).

Returns: Returns bool.

◆ setDefault()

SgDeclarationModifier::setDefault ( )

Set bit flag.

Returns: Returns void.

◆ unsetDefault()

SgDeclarationModifier::unsetDefault ( )

Clear (unset) bit flag.

Returns: Returns void.

◆ isFriend()

SgDeclarationModifier::isFriend ( ) const

declaration modifier is friend.

Returns: Returns bool.

Referenced by SageInterface::rebuildSymbolTable().

◆ setFriend()

SgDeclarationModifier::setFriend ( )

Set bit flag.

Returns: Returns void.

◆ unsetFriend()

SgDeclarationModifier::unsetFriend ( )

Clear (unset) bit flag.

Returns: Returns void.

◆ isTypedef()

SgDeclarationModifier::isTypedef ( ) const

Declaration modifier is a typedef.

Returns: Returns bool.

◆ setTypedef()

SgDeclarationModifier::setTypedef ( )

Set bit flag.

Returns: Returns void.

◆ unsetTypedef()

SgDeclarationModifier::unsetTypedef ( )

Clear (unset) bit flag.

Returns: Returns void.

◆ isExport()

SgDeclarationModifier::isExport ( ) const

Declaration modifier is export.

Returns: Returns bool.

◆ setExport()

SgDeclarationModifier::setExport ( )

Set bit flag.

Returns: Returns void.

◆ unsetExport()

SgDeclarationModifier::unsetExport ( )

Clear (unset) bit flag.

Returns: Returns void.

◆ isThrow()

SgDeclarationModifier::isThrow ( ) const

Declaration modifier is throw.

Returns: Returns bool.

◆ setThrow()

SgDeclarationModifier::setThrow ( )

Set bit flag.

Returns: Returns void.

◆ unsetThrow()

SgDeclarationModifier::unsetThrow ( )

Clear (unset) bit flag.

Returns: Returns void.

◆ class_name()

virtual std::string SgDeclarationModifier::class_name ( ) const

overridevirtual

returns a string representing the class name

Reimplemented from SgModifier.

◆ variantT()

virtual VariantT SgDeclarationModifier::variantT ( ) const

overridevirtual

returns new style SageIII enum values

Reimplemented from SgModifier.

◆ operator delete()

void SgDeclarationModifier::operator delete ( void * pointer )

inline

Definition at line 18348 of file Cxx_Grammar.h.

◆ get_traversalSuccessorContainer()

virtual std::vector< SgNode * > SgDeclarationModifier::get_traversalSuccessorContainer ( )

overridevirtual

container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

Reimplemented from SgModifier.

◆ get_traversalSuccessorNamesContainer()

virtual std::vector< std::string > SgDeclarationModifier::get_traversalSuccessorNamesContainer ( )

overridevirtual

container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

Reimplemented from SgModifier.

◆ get_numberOfTraversalSuccessors()

virtual size_t SgDeclarationModifier::get_numberOfTraversalSuccessors ( )

overridevirtual

return number of children in the traversal successor list

Reimplemented from SgModifier.

◆ get_traversalSuccessorByIndex()

virtual SgNode * SgDeclarationModifier::get_traversalSuccessorByIndex ( size_t idx )

overridevirtual

index-based access to traversal successors by index number

Reimplemented from SgModifier.

◆ get_childIndex()

virtual size_t SgDeclarationModifier::get_childIndex ( SgNode * child )

overridevirtual

index-based access to traversal successors by child node

Reimplemented from SgModifier.

◆ roseRTI()

virtual RTIReturnType SgDeclarationModifier::roseRTI ( )

overridevirtual

return C++ Runtime-Time-Information

Reimplemented from SgModifier.

◆ sage_class_name()

virtual const char * SgDeclarationModifier::sage_class_name ( ) const

overridevirtual

returns a C style string (char*) representing the class name

Reimplemented from SgModifier.

◆ accept()

virtual void SgDeclarationModifier::accept ( ROSE_VisitorPattern & visitor )

overridevirtual

support for the classic visitor pattern done in GoF

Reimplemented from SgModifier.

◆ isInMemoryPool()

virtual bool SgDeclarationModifier::isInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgModifier.

◆ checkDataMemberPointersIfInMemoryPool()

virtual void SgDeclarationModifier::checkDataMemberPointersIfInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgModifier.

◆ returnDataMemberPointers()

virtual std::vector< std::pair< SgNode *, std::string > > SgDeclarationModifier::returnDataMemberPointers ( ) const

overridevirtual

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns: STL vector of pairs of SgNode* and strings

Reimplemented from SgModifier.

◆ processDataMemberReferenceToPointers()

virtual void SgDeclarationModifier::processDataMemberReferenceToPointers ( ReferenceToPointerHandler * )

overridevirtual

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgModifier.

◆ getChildIndex()

virtual long SgDeclarationModifier::getChildIndex ( SgNode * childNode ) const

overridevirtual

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning: The mapping on children to integer values could change from release to release of ROSE.

Returns: long

Reimplemented from SgModifier.

◆ addRegExpAttribute()

SgDeclarationModifier * SgDeclarationModifier::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

Member Data Documentation

◆ p_modifierVector

SgBitVector SgDeclarationModifier::p_modifierVector

protected

Bit vector permitting specification of flags for friend, typedef, export, throw.

Definition at line 18714 of file Cxx_Grammar.h.

◆ p_typeModifier

SgTypeModifier SgDeclarationModifier::p_typeModifier

protected

Modifier for type information.

Definition at line 18718 of file Cxx_Grammar.h.

◆ p_accessModifier

SgAccessModifier SgDeclarationModifier::p_accessModifier

protected

Modifier for access information (only set for declarations in class and struct definitions)

Definition at line 18722 of file Cxx_Grammar.h.

◆ p_storageModifier

SgStorageModifier SgDeclarationModifier::p_storageModifier

protected

Modified for storage information.

Definition at line 18726 of file Cxx_Grammar.h.

◆ p_gnu_attribute_section_name

std::string SgDeclarationModifier::p_gnu_attribute_section_name

protected

Definition at line 18730 of file Cxx_Grammar.h.

◆ p_gnu_attribute_visability

SgDeclarationModifier::gnu_declaration_visability_enum SgDeclarationModifier::p_gnu_attribute_visability

protected

Definition at line 18734 of file Cxx_Grammar.h.

◆ p_microsoft_uuid_string

std::string SgDeclarationModifier::p_microsoft_uuid_string

protected

Definition at line 18738 of file Cxx_Grammar.h.

◆ p_microsoft_property_get_function_name

std::string SgDeclarationModifier::p_microsoft_property_get_function_name

protected

Definition at line 18742 of file Cxx_Grammar.h.

◆ p_microsoft_property_put_function_name

std::string SgDeclarationModifier::p_microsoft_property_put_function_name

protected

Definition at line 18746 of file Cxx_Grammar.h.

The documentation for this class was generated from the following files:

Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Member Typedef Documentation

◆ base_node_type

Member Enumeration Documentation

◆ declaration_modifier_enum

◆ gnu_declaration_visability_enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ ~SgDeclarationModifier()

◆ SgDeclarationModifier()

Member Function Documentation

◆ copy()

◆ operator=()

◆ post_construction_initialization()

◆ isUnknown()

◆ setUnknown()

◆ unsetUnknown()

◆ isDefault()

◆ setDefault()

◆ unsetDefault()

◆ isFriend()

◆ setFriend()

◆ unsetFriend()

◆ isTypedef()

◆ setTypedef()

◆ unsetTypedef()

◆ isExport()

◆ setExport()

◆ unsetExport()

◆ isThrow()

◆ setThrow()

◆ unsetThrow()

◆ class_name()

◆ variantT()

◆ operator delete()

◆ get_traversalSuccessorContainer()

◆ get_traversalSuccessorNamesContainer()

◆ get_numberOfTraversalSuccessors()

◆ get_traversalSuccessorByIndex()

◆ get_childIndex()

◆ roseRTI()

◆ sage_class_name()

◆ accept()

◆ isInMemoryPool()

◆ checkDataMemberPointersIfInMemoryPool()

◆ returnDataMemberPointers()

◆ processDataMemberReferenceToPointers()

◆ getChildIndex()

◆ addRegExpAttribute()

Member Data Documentation

◆ p_modifierVector

◆ p_typeModifier

◆ p_accessModifier

◆ p_storageModifier

◆ p_gnu_attribute_section_name

◆ p_gnu_attribute_visability

◆ p_microsoft_uuid_string

◆ p_microsoft_property_get_function_name

◆ p_microsoft_property_put_function_name
