Description

Definition at line 43286 of file Cxx_Grammar.h.

Inheritance diagram for SgUnparse_Info:

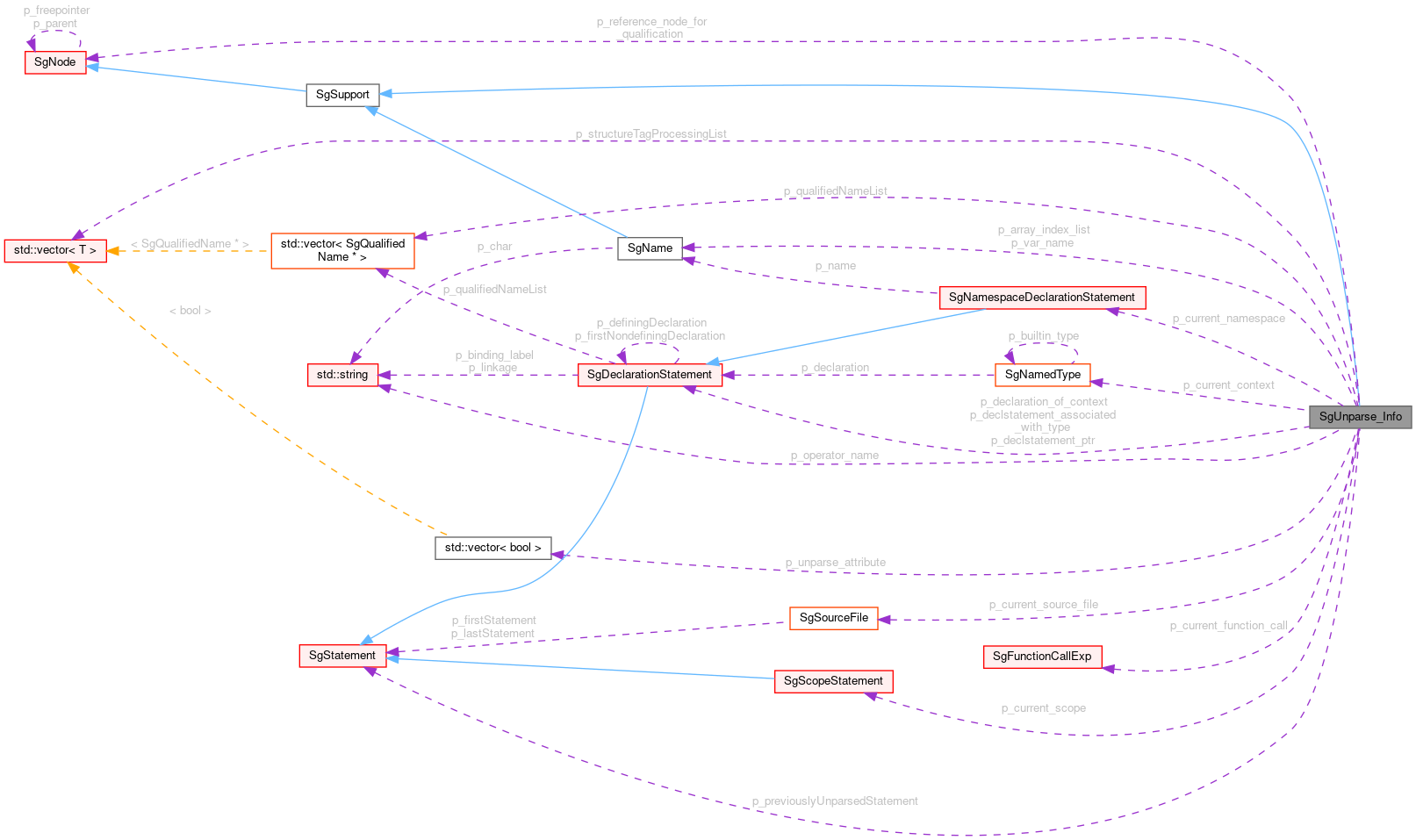

Collaboration diagram for SgUnparse_Info:

[legend]

Public Types
enum	unparse_type_num { b_enum_defaultValue = 0 , b_isPointerToSomething = 1 , b_isReferenceToSomething = 2 , b_inVarDecl = 3 , b_inArgList = 4 , b_SkipSemiColon = 5 , b_inEnumDecl = 6 , b_inTemplateList = 7 , b_SkipBaseType = 8 , b_inAggregateInitializer = 9 , b_isWithType = 10 , b_inConditional = 11 , b_SkipDefinition = 12 , b_SkipClassSpecifier = 13 , b_inEmbeddedDecl = 14 , b_SkipGlobal = 15 , b_SkipAtomic = 16 , b_PrintName = 17 , b_CheckAccess = 18 , b_SkipFunctionQualifier = 19 , b_isArrayType = 20 , b_inRhsExpr = 21 , b_SkipParen = 22 , b_isTypeSecondPart = 23 , b_isTypeFirstPart = 24 , b_SkipInitializer = 25 , b_SkipComments = 26 , b_SkipCPPDirectives = 27 , b_SkipEnumDefinition = 28 , b_SkipFunctionDefinition = 29 , b_SkipClassDefinition = 30 , b_AddSemiColonAfterDeclaration = 31 , b_SkipWhitespaces = 32 , b_SkipBasicBlock = 33 , b_outputClassTemplateName = 34 , b_outputCompilerGeneratedStatements = 35 , b_SkipConstantFoldedExpressions = 36 , b_forceQualifiedNames = 37 , b_SkipQualifiedNames = 38 , b_skipCheckAccess = 39 , b_requiresGlobalNameQualification = 40 , b_useTypeAttributes = 41 , b_SkipFormatting = 42 , b_outputFortranModFile = 43 , b_supressStrippedTypeName = 44 , b_prefixOperator = 45 , b_supressArrayBound = 46 , b_supressImplicitThisOperator = 47 , b_unparsedPartiallyUsingTokenStream = 48 , b_skipCompilerGeneratedSubExpressions = 49 , b_parentStatementListBeingUnparsedUsingPartialTokenSequence = 50 , b_cxx11_initialization_list = 51 , b_inTypedefDecl = 52 , b_SkipNameQualification = 53 , b_useAlternativeDefiningDeclaration = 54 , b_usedInUparseToStringFunction = 55 , UNPARSE_TYPE_LAST }
	Options available for unparsing the AST to generate source code. More...

enum	access_attr_enum { a_unset_access = 1 , a_private_access = 2 , a_protected_access = 3 , a_public_access = 4 , a_default_access = 5 }

enum	{ static_variant = V_SgUnparse_Info }
	static variant value More...

typedef SgSupport	base_node_type

Public Types inherited from SgSupport
enum	{ static_variant = V_SgSupport }
	static variant value More...

typedef SgNode	base_node_type

Public Types inherited from SgNode
enum	{ static_variant = V_SgNode }
	static variant value More...

enum	{ static_variant = V_SgNode }
	static variant value More...

Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const override

	SgUnparse_Info (const SgUnparse_Info &X)

SgUnparse_Info &	operator= (const SgUnparse_Info &X)

void	post_construction_initialization () override
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

bool	isUnsetAccess () const

void	set_isUnsetAccess ()

bool	isPrivateAccess () const

void	set_isPrivateAccess ()

bool	isProtectedAccess () const

void	set_isProtectedAccess ()

bool	isPublicAccess () const

void	set_isPublicAccess ()

bool	isDefaultAccess () const

void	set_isDefaultAccess ()

bool	isPointerToSomething () const

void	set_isPointerToSomething ()

void	unset_isPointerToSomething ()

bool	isReferenceToSomething () const

void	set_isReferenceToSomething ()

void	unset_isReferenceToSomething ()

bool	inVarDecl () const

void	set_inVarDecl ()

void	unset_inVarDecl ()

bool	inArgList () const

void	set_inArgList ()

void	unset_inArgList ()

bool	SkipSemiColon () const

void	set_SkipSemiColon ()

void	unset_SkipSemiColon ()

bool	inEnumDecl () const

void	set_inEnumDecl ()

void	unset_inEnumDecl ()

bool	inTemplateList () const

void	set_inTemplateList ()

void	unset_inTemplateList ()

bool	SkipBaseType () const

void	set_SkipBaseType ()

void	unset_SkipBaseType ()

bool	inAggregateInitializer () const

void	set_inAggregateInitializer ()

void	unset_inAggregateInitializer ()

bool	isWithType () const

void	set_isWithType ()

void	unset_isWithType ()

bool	inConditional () const

void	set_inConditional ()

void	unset_inConditional ()

bool	SkipDefinition () const

void	set_SkipDefinition ()

void	unset_SkipDefinition ()

bool	SkipClassSpecifier () const

void	set_SkipClassSpecifier ()

void	unset_SkipClassSpecifier ()

bool	inEmbeddedDecl () const

void	set_inEmbeddedDecl ()

void	unset_inEmbeddedDecl ()

bool	SkipGlobal () const

void	set_SkipGlobal ()

void	unset_SkipGlobal ()

bool	SkipAtomic () const

void	set_SkipAtomic ()

void	unset_SkipAtomic ()

bool	PrintName () const

void	set_PrintName ()

void	unset_PrintName ()

bool	CheckAccess () const

void	set_CheckAccess ()

void	unset_CheckAccess ()

bool	SkipFunctionQualifier () const

void	set_SkipFunctionQualifier ()

void	unset_SkipFunctionQualifier ()

bool	isArrayType () const

void	set_isArrayType ()

void	unset_isArrayType ()

bool	inRhsExpr () const

void	set_inRhsExpr ()

void	unset_inRhsExpr ()

bool	SkipParen () const

void	set_SkipParen ()

void	unset_SkipParen ()

bool	isTypeSecondPart () const
	Tests the setting of the flag to permit output of 2nd part of type.

void	set_isTypeSecondPart ()
	Sets flag to permit output of 2nd part of type.

void	unset_isTypeSecondPart ()
	Unsets the flag to permit output of 2nd part of type.

bool	isTypeFirstPart () const
	Tests the setting of the flag to permit output of 1st part of type.

void	set_isTypeFirstPart ()
	Sets flag to permit output of 1st part of type.

void	unset_isTypeFirstPart ()
	Unsets the flag to permit output of 1st part of type.

bool	SkipInitializer () const

void	set_SkipInitializer ()

void	unset_SkipInitializer ()

bool	SkipComments () const

void	set_SkipComments ()

void	unset_SkipComments ()

bool	SkipWhitespaces () const

void	set_SkipWhitespaces ()

void	unset_SkipWhitespaces ()

bool	SkipCPPDirectives () const

void	set_SkipCPPDirectives ()

void	unset_SkipCPPDirectives ()

bool	SkipEnumDefinition () const

void	set_SkipEnumDefinition ()

void	unset_SkipEnumDefinition ()

bool	SkipFunctionDefinition () const

void	set_SkipFunctionDefinition ()

void	unset_SkipFunctionDefinition ()

bool	SkipClassDefinition () const

void	set_SkipClassDefinition ()

void	unset_SkipClassDefinition ()

bool	AddSemiColonAfterDeclaration () const

void	set_AddSemiColonAfterDeclaration ()

void	unset_AddSemiColonAfterDeclaration ()

bool	SkipBasicBlock () const

void	set_SkipBasicBlock ()

void	unset_SkipBasicBlock ()

bool	outputClassTemplateName () const

void	set_outputClassTemplateName ()

void	unset_outputClassTemplateName ()

bool	outputCompilerGeneratedStatements () const

void	set_outputCompilerGeneratedStatements ()

void	unset_outputCompilerGeneratedStatements ()

bool	SkipConstantFoldedExpressions () const
	Control output of constant folded values, the default is to ignore constant folded values and unparse the original code (as if no constant folding were done).

void	set_SkipConstantFoldedExpressions ()

void	unset_SkipConstantFoldedExpressions ()

bool	forceQualifiedNames () const

void	set_forceQualifiedNames ()

void	unset_forceQualifiedNames ()

bool	skipCheckAccess () const

void	set_skipCheckAccess ()

void	unset_skipCheckAccess ()

bool	SkipQualifiedNames () const

void	set_SkipQualifiedNames ()

void	unset_SkipQualifiedNames ()

bool	requiresGlobalNameQualification () const

void	set_requiresGlobalNameQualification ()

void	unset_requiresGlobalNameQualification ()

bool	useTypeAttributes () const

void	set_useTypeAttributes ()

void	unset_useTypeAttributes ()

bool	SkipFormatting () const

void	set_SkipFormatting ()

void	unset_SkipFormatting ()

bool	supressStrippedTypeName () const

void	set_supressStrippedTypeName ()

void	unset_supressStrippedTypeName ()

std::string	get_operator_name ()

void	set_operator_name (const std::string &on)

SgName &	get_name ()

void	set_name (const SgName &name)

void	unset_name ()

SgDeclarationStatement *	get_decl_stmt ()

void	set_decl_stmt (SgDeclarationStatement *stmt)

void	unset_decl_stmt ()

int	get_nested_expression ()

void	set_nested_expression ()

void	unset_nested_expression ()

bool	isPrefixOperator () const

void	set_prefixOperator ()

void	unset_prefixOperator ()

bool	supressArrayBound () const

void	set_supressArrayBound ()

void	unset_supressArrayBound ()

bool	supressImplicitThisOperator () const

void	set_supressImplicitThisOperator ()

void	unset_supressImplicitThisOperator ()

bool	unparsedPartiallyUsingTokenStream () const

void	set_unparsedPartiallyUsingTokenStream ()

void	unset_unparsedPartiallyUsingTokenStream ()

bool	skipCompilerGeneratedSubExpressions () const

void	set_skipCompilerGeneratedSubExpressions ()

void	unset_skipCompilerGeneratedSubExpressions ()

bool	parentStatementListBeingUnparsedUsingPartialTokenSequence () const

void	set_parentStatementListBeingUnparsedUsingPartialTokenSequence ()

void	unset_parentStatementListBeingUnparsedUsingPartialTokenSequence ()

bool	get_cxx11_initialization_list () const

void	set_cxx11_initialization_list ()

void	unset_cxx11_initialization_list ()

bool	inTypedefDecl () const

void	set_inTypedefDecl ()

void	unset_inTypedefDecl ()

bool	SkipNameQualification () const

void	set_SkipNameQualification ()

void	unset_SkipNameQualification ()

bool	useAlternativeDefiningDeclaration () const

void	set_useAlternativeDefiningDeclaration ()

void	unset_useAlternativeDefiningDeclaration ()

bool	usedInUparseToStringFunction () const

void	set_usedInUparseToStringFunction ()

void	unset_usedInUparseToStringFunction ()

void	unset_declaration_of_context ()

void	unset_current_context ()

SgName	get_array_index_list ()

void	set_array_index_list (SgExpression *e, SgUnparse_Info finfo)

void	unset_array_index_list ()

void	addStructureTag (SgNamedType *structureTag)

SgTypePtrList &	getStructureTagList ()
	Access function for internal STL list of structure tags.

void	display (const std::string &label="") const

std::string	displayString (const std::string &label) const

bool	outputFortranModFile () const

void	set_outputFortranModFile ()

void	unset_outputFortranModFile ()

void	inc_nestingLevel ()

void	dec_nestingLevel ()

virtual std::string	class_name () const override
	returns a string representing the class name

virtual VariantT	variantT () const override
	returns new style SageIII enum values

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

virtual std::vector< SgNode * >	get_traversalSuccessorContainer () override
	container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

virtual std::vector< std::string >	get_traversalSuccessorNamesContainer () override
	container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

virtual size_t	get_numberOfTraversalSuccessors () override
	return number of children in the traversal successor list

virtual SgNode *	get_traversalSuccessorByIndex (size_t idx) override
	index-based access to traversal successors by index number

virtual size_t	get_childIndex (SgNode *child) override
	index-based access to traversal successors by child node

virtual RTIReturnType	roseRTI () override
	return C++ Runtime-Time-Information

virtual const char *	sage_class_name () const override

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

virtual void	accept (ROSE_VisitorPattern &visitor) override
	support for the classic visitor pattern done in GoF

virtual bool	isInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual void	checkDataMemberPointersIfInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const override
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *) override
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

virtual long	getChildIndex (SgNode *childNode) const override
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

	SgUnparse_Info (const SgUnparse_InfoStorageClass &source)
	IR node constructor to support AST File I/O.

SgUnparse_Info *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

int	get_access_attribute () const

void	set_access_attribute (int access_attribute)

SgDeclarationStatement *	get_declstatement_ptr () const

void	set_declstatement_ptr (SgDeclarationStatement *declstatement_ptr)

SgDeclarationStatement *	get_declaration_of_context () const

void	set_declaration_of_context (SgDeclarationStatement *declaration_of_context)

SgNamedType *	get_current_context () const

void	set_current_context (SgNamedType *current_context)

SgName	get_array_index_list () const

void	set_array_index_list (SgName array_index_list)

SgNamespaceDeclarationStatement *	get_current_namespace () const

void	set_current_namespace (SgNamespaceDeclarationStatement *current_namespace)

bool	get_outputCodeGenerationFormatDelimiters () const

void	set_outputCodeGenerationFormatDelimiters (bool outputCodeGenerationFormatDelimiters)

SgQualifiedNamePtrList	get_qualifiedNameList () const

void	set_qualifiedNameList (SgQualifiedNamePtrList qualifiedNameList)

SgFunctionCallExp *	get_current_function_call () const

void	set_current_function_call (SgFunctionCallExp *current_function_call)

SgScopeStatement *	get_current_scope () const

void	set_current_scope (SgScopeStatement *current_scope)

SgNode *	get_reference_node_for_qualification () const

void	set_reference_node_for_qualification (SgNode *reference_node_for_qualification)

int	get_name_qualification_length () const

void	set_name_qualification_length (int name_qualification_length)

bool	get_type_elaboration_required () const

void	set_type_elaboration_required (bool type_elaboration_required)

bool	get_global_qualification_required () const

void	set_global_qualification_required (bool global_qualification_required)

int	get_nestingLevel () const

void	set_nestingLevel (int nestingLevel)

SgFile::languageOption_enum	get_language () const

void	set_language (SgFile::languageOption_enum language)

SgSourceFile *	get_current_source_file () const

void	set_current_source_file (SgSourceFile *current_source_file)

bool	get_use_generated_name_for_template_arguments () const

void	set_use_generated_name_for_template_arguments (bool use_generated_name_for_template_arguments)

bool	get_user_defined_literal () const

void	set_user_defined_literal (bool user_defined_literal)

SgDeclarationStatement *	get_declstatement_associated_with_type () const

void	set_declstatement_associated_with_type (SgDeclarationStatement *declstatement_associated_with_type)

bool	get_context_for_added_parentheses () const

void	set_context_for_added_parentheses (bool context_for_added_parentheses)

Public Member Functions inherited from SgSupport
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgSupport (const SgSupportStorageClass &source)
	IR node constructor to support AST File I/O.

SgSupport *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

virtual	~SgSupport ()
	This is the destructor.

	SgSupport ()
	This is the constructor.

Public Member Functions inherited from SgNode
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

int	variant () const
	Older version function returns enum value "NODE".

virtual void	addNewAttribute (std::string s, AstAttribute *a)
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a)
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a)
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s)
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const
	Returns the number of attributes on this IR node.

virtual AstAttributeMechanism *	get_attributeMechanism () const
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

virtual void	set_attributeMechanism (AstAttributeMechanism *a)
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const

virtual Sg_File_Info *	get_file_info (void) const
	File information containing filename, line number, column number, and if the SgNode is a part of a new transformation, etc.

virtual Sg_File_Info *	get_startOfConstruct (void) const
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

virtual	~SgNode ()
	This is the destructor.

	SgNode ()
	This is the constructor.

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

int	variant () const

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

virtual void	addNewAttribute (std::string s, AstAttribute *a)
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a)
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a)
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s)
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const
	Returns the number of attributes on this IR node.

virtual AstAttributeMechanism *	get_attributeMechanism () const
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

virtual void	set_attributeMechanism (AstAttributeMechanism *a)
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const

virtual Sg_File_Info *	get_file_info (void) const
	File information containing filename, line number, column number, and if the SgNode is a part of a new transformation, etc.

virtual Sg_File_Info *	get_startOfConstruct (void) const
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

Static Public Member Functions
static bool	get_forceDefaultConstructorToTriggerError ()
	Added to debug use of the default constructor.

static void	set_forceDefaultConstructorToTriggerError (bool forceDefaultConstructorToTriggerError)

static bool	get_extern_C_with_braces ()

static void	set_extern_C_with_braces (bool extern_C_with_braces)

static SgStatement *	get_previouslyUnparsedStatement ()

static void	set_previouslyUnparsedStatement (SgStatement *previouslyUnparsedStatement)

static bool	get_previousStatementUnparsedFromTokenStream ()

static void	set_previousStatementUnparsedFromTokenStream (bool previousStatementUnparsedFromTokenStream)

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgUnparse_Info *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgUnparse_Info *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgUnparse_Info *sgnode)

Static Public Member Functions inherited from SgSupport
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgSupport *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgSupport *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgSupport *sgnode)

Static Public Member Functions inherited from SgNode
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

Protected Attributes
SgBitVector	p_unparse_attribute

int	p_access_attribute

int	p_nested_expression

std::string	p_operator_name

SgName	p_var_name

SgDeclarationStatement *	p_declstatement_ptr

SgDeclarationStatement *	p_declaration_of_context

SgNamedType *	p_current_context

SgName	p_array_index_list

SgNamespaceDeclarationStatement *	p_current_namespace

bool	p_outputCodeGenerationFormatDelimiters

SgQualifiedNamePtrList	p_qualifiedNameList

SgFunctionCallExp *	p_current_function_call

SgScopeStatement *	p_current_scope

SgNode *	p_reference_node_for_qualification

int	p_name_qualification_length

bool	p_type_elaboration_required

bool	p_global_qualification_required

int	p_nestingLevel

SgFile::languageOption_enum	p_language

SgSourceFile *	p_current_source_file

bool	p_use_generated_name_for_template_arguments

bool	p_user_defined_literal

SgDeclarationStatement *	p_declstatement_associated_with_type

bool	p_context_for_added_parentheses

Protected Attributes inherited from SgNode
SgNode *	p_parent
	This is the pointer to the parent IR node in the AST.

bool	p_isModified
	Records if IR node has been modified (data members reset).

bool	p_containsTransformation

SgNode *	p_freepointer
	This is the pointer to the chain of previously freed objects.

Static Protected Attributes
static SgTypePtrList	p_structureTagProcessingList

static bool	p_forceDefaultConstructorToTriggerError

static bool	p_extern_C_with_braces

static SgStatement *	p_previouslyUnparsedStatement

static bool	p_previousStatementUnparsedFromTokenStream

Static Protected Attributes inherited from SgNode
static std::vector< std::tuple< unsigned char *, unsigned, VariantT > >	all_pools

static SgFunctionTypeTable *	p_globalFunctionTypeTable
	Pointer to symbol table specific to function types.

static SgTypeTable *	p_globalTypeTable

static std::map< SgNode *, std::string >	p_globalMangledNameMap
	Cache of mangled names to avoid regeneration of previously build mangled names or parts of mangled names. This is a performance optimization.

static std::map< std::string, uint64_t >	p_shortMangledNameCache
	STL map used as a cache to shorten generated mangled names. This is mostly a space optimization ofr mangled names of templates.

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForNames

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTypes

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTemplateHeaders

static std::map< SgNode *, std::string >	p_globalTypeNameMap

static std::map< SgNode , std::map< SgNode , std::string > >	p_globalQualifiedNameMapForMapsOfTypes

Additional Inherited Members
Protected Member Functions inherited from SgNode
virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

Member Typedef Documentation

◆ base_node_type

typedef SgSupport SgUnparse_Info::base_node_type

Definition at line 44311 of file Cxx_Grammar.h.

Member Enumeration Documentation

◆ unparse_type_num

enum SgUnparse_Info::unparse_type_num

Options available for unparsing the AST to generate source code.

These options can be set or unset and are passed from each unparse function to any called unparse functions. Sometimes a new unparse info object is generated, always using the copy constructor, so that the options can be modified for unparsing different parts of the AST.

Enumerator
b_enum_defaultValue	DQ (11/4/2003): Build a default value to support initialization. default value
b_isPointerToSomething	to postponing the printing of name for ptr of function or array etc postponing the printing of name for ptr of function or array etc
b_isReferenceToSomething	postponing the printing of name for ptr of function or array etc
b_inVarDecl	if it is in Variable Declaration, output either , or ; for SgExprStmt if it is in Variable Declaration, output either , or ; for SgExprStmt
b_inArgList	in a function header, output type+ symbol in a function header, output type+ symbol
b_SkipSemiColon	no ';' for declaration statement no ';' for declaration statement
b_inEnumDecl	to setup for printing of enum var in a VariableDeclaration setup for printing of enum var in a VariableDeclaration
b_inTemplateList	not really being used (yet) not really being used (yet)
b_SkipBaseType	suppress printing of the base type suppress printing of the base type
b_inAggregateInitializer	for skip "=" if in aggregate initializer skip "=" if in aggregate initializer
b_isWithType	for print both type & sym name print both type and sym name
b_inConditional	it is in conditional expr is in conditional expr (context information)
b_SkipDefinition	skip printing definition part of a declaration skip output of definitions (sets b_SkipEnumDefinition, b_SkipFunctionDefinition, and b_SkipClassDefinition
b_SkipClassSpecifier	need to put in either class/struct/union keyword skip the class specifier (modifier)
b_inEmbeddedDecl	printing something within a variable declaration printing something within a variable declaration
b_SkipGlobal	suppress the printing of global and atomic suppress the printing of global and atomic (hold over from CC++, I think (not used)
b_SkipAtomic	suppress the printing of global and atomic (hold over from CC++, I think (not used)
b_PrintName	used by set/unsetName and set/unsetPrintName to bring down the Name to lower tree structure used by set/unsetName and set/unsetPrintName to bring down the Name to lower tree structure
b_CheckAccess	to set the need to check if need access specifier (avoids redundently specific access modifiers) set the need to check if need access specifier
b_SkipFunctionQualifier	to skip function qualifiers skip function qualifiers
b_isArrayType	to show that the type above current one is an array show that the type above current one is an array
b_inRhsExpr	to indicate that this is at the right hand side of a binary op indicate that this is at the right hand side of a binary op
b_SkipParen	to flag the skipping of () printing in a function call this is for a bug in g++ that can not handle (P::dval->B::mfcall)() skipping the toplevel only skip over output of matching "(" and ")"
b_isTypeSecondPart	for the case that this maybe a function type, separate the outputing of the type info into 2 parts, the return type part and the arg type by default this is always set to 0 unparse only second part of type
b_isTypeFirstPart	unparse only first part of type
b_SkipInitializer	Added by DQ to permit reuse of unparser code in generation of declarations in rewrite mechanism. skip output of initializers
b_SkipComments	Added by DQ to permit reuse of unparser code in generation of declarations in rewrite mechanism. ignore all comments in unparsing
b_SkipCPPDirectives	Added by DQ to permit reuse of unparser code in generation of declarations in rewrite mechanism. ignore all C preprocessor directives (except #pragma which is in the AST)
b_SkipEnumDefinition	Added by DQ to permit reuse of unparser code in generation of declarations in rewrite mechanism. skip over enum definition, if available
b_SkipFunctionDefinition	Added by DQ to permit reuse of unparser code in generation of declarations in rewrite mechanism. skip over the function definition, if available
b_SkipClassDefinition	Added by DQ to permit reuse of unparser code in generation of declarations in rewrite mechanism. skip over the class definition, if available
b_AddSemiColonAfterDeclaration	Added by DQ to permit reuse of unparser code in generation of declarations in rewrite mechanism. add ';' after declaration
b_SkipWhitespaces	MS: 09/03/02 Added by MS to make unparsing of white space optional currently only used in unparseToCompleteString (by removing whitespaces) I only added it here to follow the design but suggest to use varibles of type bool, and extend the ROSETTA code to add these attributes, and generate the access functions - unfortunately the naming scheme does not comply with ROSETTA's naming scheme for access functions. ignore any unrequired white space
b_SkipBasicBlock	DQ (11/3/2003): made all bit flags 64 bit long so that we could add a few more entries. Added bit flag to control generation of prefix scope statements. This permits unparsing SgForStmt, SgWhileStmt, SgSwitchStmt, etc., without their body so that we can capture the full context of the declarations associated with such statements. In the case of SgSwitchStmt it also permits replacement of case statements which are specific to SgSwitchStmt basic blocks and no other basic blocks. This verifies the correctness of transformation specified. skip over the unparsing of the basic block
b_outputClassTemplateName	Templates that are modified need to be output, but all other output of a class template only supports the output of the class template name (but in template form, e.g. "Rose_STL_Container<int>"). If the template has not been transformed then we have to control where it is output. The default can't be to output the template everywhere and then restrict it's use since the unparser can't turn that on, so we have to restrict it everywhere and turn it on in several places. outputClassTemplateName
b_outputCompilerGeneratedStatements	Control output of compiler-generated statements (typically template specialization declarations). this allows the unparing of comments and preprocessor declarations before the compiler-generated statements appearing with any non-compiler-generated statement. outputCompilerGeneratedStatements
b_SkipConstantFoldedExpressions	Control output of constant folded values. SkipConstantFoldedExpressions
b_forceQualifiedNames	Force qualified names.
b_SkipQualifiedNames	Control output of qualified names (not always wanted). skip qualified names (e.g. names of defining declarations).
b_skipCheckAccess	Control access specifiers use in generated code (public, protected, private). Skip access specifier (different from b_CheckAccess, above)
b_requiresGlobalNameQualification	Requires global qualifier on generated name.
b_useTypeAttributes	Fortran allows type attributes to be used in declarations (for example to dimension a collection of arrays).
b_SkipFormatting	Fortran code generation requires that we skip some formatting (e.g. column 7 formatting, even if fixed format output).
b_outputFortranModFile	Fortran mod file generation
b_supressStrippedTypeName	Unparsing of Fortran types with multiple attributes requires skipping the stripped base type name if it has already been output.
b_prefixOperator	Part of support to unparse code using overloaded operator names or operator syntax (to match the input code); this marks prefix operators to be unparsed before the LHS s output.
b_supressArrayBound	Supress output of array bound in array type. Used to support array declearations with empty bracket syntax for secondary (prototype) declarations (e.g. int array[];).
b_supressImplicitThisOperator	Supress output of SgThisExp (required to support lambda function code generation).
b_unparsedPartiallyUsingTokenStream	Record that the statement was partially unparsed using the token stream.
b_skipCompilerGeneratedSubExpressions	Supress compiler generated subexpressions (used to output fields in the 2nd parameter of the offsetof() function family.
b_parentStatementListBeingUnparsedUsingPartialTokenSequence	Controls output formatting (CR's) in mixing unparsing from token stream with unparsing from the AST.
b_cxx11_initialization_list	Indicate when we are in a C++11 specific initialization list.
b_inTypedefDecl	to setup unparsing of base types in typedef declarations (for SgPointerMemberType) which requires extra parenthesis. setup unparsing of base types in typedef declarations (for SgPointerMemberType) which requires extra parenthesis
b_SkipNameQualification	Skip the use of name qualification (used in generating strings of template instantiations)
b_useAlternativeDefiningDeclaration	Skip the use of name qualification (used in generating strings of template instantiations)
b_usedInUparseToStringFunction	Mark this use as being called from the unparseToString() functions (used in debugging)
UNPARSE_TYPE_LAST	DQ (12/6/2003): Added last value to use a upper bound in loops. last value used for debugging

Definition at line 43333 of file Cxx_Grammar.h.

◆ access_attr_enum

enum SgUnparse_Info::access_attr_enum

Access modifiers for use with SgUnparseInfo (only)

Enumerator
a_unset_access	default value
a_private_access	private access value
a_protected_access	protected access value
a_public_access	public access value
a_default_access	public access value

Definition at line 43510 of file Cxx_Grammar.h.

◆ anonymous enum

anonymous enum

static variant value

Definition at line 43932 of file Cxx_Grammar.h.

Member Function Documentation

◆ copy()

virtual SgNode * SgUnparse_Info::copy ( SgCopyHelp & help ) const

overridevirtual

Reimplemented from SgSupport.

◆ post_construction_initialization()

void SgUnparse_Info::post_construction_initialization ( )

overridevirtual

Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

Reimplemented from SgNode.

◆ set_isTypeSecondPart()

void SgUnparse_Info::set_isTypeSecondPart ( )

Sets flag to permit output of 2nd part of type.

This sets the flag for output of the 2nd part of a type and unsets the flag for the 1st part of the type.

◆ unset_isTypeSecondPart()

void SgUnparse_Info::unset_isTypeSecondPart ( )

Unsets the flag to permit output of 2nd part of type.

This only unsets the flag for the output of the 2nd part of a type (no change to the flag for the 1st part of the type).

◆ set_isTypeFirstPart()

void SgUnparse_Info::set_isTypeFirstPart ( )

Sets flag to permit output of 1st part of type.

This sets the flag for output of the 1st part of a type and unsets the flag for the 2nd part of the type.

◆ unset_isTypeFirstPart()

void SgUnparse_Info::unset_isTypeFirstPart ( )

Unsets the flag to permit output of 1st part of type.

This only unsets the flag for the output of the 1st part of a type (not change to the flag for the 2nd part of the type).

◆ SkipConstantFoldedExpressions()

bool SgUnparse_Info::SkipConstantFoldedExpressions ( ) const

Control output of constant folded values, the default is to ignore constant folded values and unparse the original code (as if no constant folding were done).

(default is unset)

◆ get_forceDefaultConstructorToTriggerError()

static bool SgUnparse_Info::get_forceDefaultConstructorToTriggerError ( )

static

Added to debug use of the default constructor.

Added to debug use of the default constructor (to restrict it from being used so that we could detect where it is being used in place of the copy constructor which should be used to implement the SgUnparse_Info object correctly as an inherited attribute within the ROSE unparser.

◆ class_name()

virtual std::string SgUnparse_Info::class_name ( ) const

overridevirtual

returns a string representing the class name

Reimplemented from SgSupport.

◆ variantT()

virtual VariantT SgUnparse_Info::variantT ( ) const

overridevirtual

returns new style SageIII enum values

Reimplemented from SgSupport.

◆ operator delete()

void SgUnparse_Info::operator delete ( void * pointer )

inline

Definition at line 43987 of file Cxx_Grammar.h.

◆ get_traversalSuccessorContainer()

virtual std::vector< SgNode * > SgUnparse_Info::get_traversalSuccessorContainer ( )

overridevirtual

container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

Reimplemented from SgSupport.

◆ get_traversalSuccessorNamesContainer()

virtual std::vector< std::string > SgUnparse_Info::get_traversalSuccessorNamesContainer ( )

overridevirtual

container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

Reimplemented from SgSupport.

◆ get_numberOfTraversalSuccessors()

virtual size_t SgUnparse_Info::get_numberOfTraversalSuccessors ( )

overridevirtual

return number of children in the traversal successor list

Reimplemented from SgSupport.

◆ get_traversalSuccessorByIndex()

virtual SgNode * SgUnparse_Info::get_traversalSuccessorByIndex ( size_t idx )

overridevirtual

index-based access to traversal successors by index number

Reimplemented from SgSupport.

◆ get_childIndex()

virtual size_t SgUnparse_Info::get_childIndex ( SgNode * child )

overridevirtual

index-based access to traversal successors by child node

Reimplemented from SgSupport.

◆ roseRTI()

virtual RTIReturnType SgUnparse_Info::roseRTI ( )

overridevirtual

return C++ Runtime-Time-Information

Reimplemented from SgSupport.

◆ sage_class_name()

virtual const char * SgUnparse_Info::sage_class_name ( ) const

overridevirtual

returns a C style string (char*) representing the class name

Reimplemented from SgSupport.

◆ accept()

virtual void SgUnparse_Info::accept ( ROSE_VisitorPattern & visitor )

overridevirtual

support for the classic visitor pattern done in GoF

Reimplemented from SgSupport.

◆ isInMemoryPool()

virtual bool SgUnparse_Info::isInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

◆ checkDataMemberPointersIfInMemoryPool()

virtual void SgUnparse_Info::checkDataMemberPointersIfInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

◆ returnDataMemberPointers()

virtual std::vector< std::pair< SgNode *, std::string > > SgUnparse_Info::returnDataMemberPointers ( ) const

overridevirtual

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns: STL vector of pairs of SgNode* and strings

Reimplemented from SgSupport.

◆ processDataMemberReferenceToPointers()

virtual void SgUnparse_Info::processDataMemberReferenceToPointers ( ReferenceToPointerHandler * )

overridevirtual

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgSupport.

◆ getChildIndex()

virtual long SgUnparse_Info::getChildIndex ( SgNode * childNode ) const

overridevirtual

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning: The mapping on children to integer values could change from release to release of ROSE.

Returns: long

Reimplemented from SgSupport.

◆ addRegExpAttribute()

SgUnparse_Info * SgUnparse_Info::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

Member Data Documentation

◆ p_unparse_attribute

SgBitVector SgUnparse_Info::p_unparse_attribute

protected

Definition at line 44415 of file Cxx_Grammar.h.

◆ p_access_attribute

int SgUnparse_Info::p_access_attribute

protected

Definition at line 44419 of file Cxx_Grammar.h.

◆ p_nested_expression

int SgUnparse_Info::p_nested_expression

protected

Definition at line 44423 of file Cxx_Grammar.h.

◆ p_operator_name

std::string SgUnparse_Info::p_operator_name

protected

Definition at line 44427 of file Cxx_Grammar.h.

◆ p_var_name

SgName SgUnparse_Info::p_var_name

protected

Definition at line 44431 of file Cxx_Grammar.h.

◆ p_declstatement_ptr

SgDeclarationStatement* SgUnparse_Info::p_declstatement_ptr

protected

Definition at line 44435 of file Cxx_Grammar.h.

◆ p_declaration_of_context

SgDeclarationStatement* SgUnparse_Info::p_declaration_of_context

protected

Definition at line 44439 of file Cxx_Grammar.h.

◆ p_current_context

SgNamedType* SgUnparse_Info::p_current_context

protected

Definition at line 44443 of file Cxx_Grammar.h.

◆ p_array_index_list

SgName SgUnparse_Info::p_array_index_list

protected

Definition at line 44447 of file Cxx_Grammar.h.

◆ p_structureTagProcessingList

SgTypePtrList SgUnparse_Info::p_structureTagProcessingList

staticprotected

Definition at line 44451 of file Cxx_Grammar.h.

◆ p_current_namespace

SgNamespaceDeclarationStatement* SgUnparse_Info::p_current_namespace

protected

Definition at line 44455 of file Cxx_Grammar.h.

◆ p_forceDefaultConstructorToTriggerError

bool SgUnparse_Info::p_forceDefaultConstructorToTriggerError

staticprotected

Definition at line 44459 of file Cxx_Grammar.h.

◆ p_outputCodeGenerationFormatDelimiters

bool SgUnparse_Info::p_outputCodeGenerationFormatDelimiters

protected

Definition at line 44463 of file Cxx_Grammar.h.

◆ p_qualifiedNameList

SgQualifiedNamePtrList SgUnparse_Info::p_qualifiedNameList

protected

Definition at line 44467 of file Cxx_Grammar.h.

◆ p_current_function_call

SgFunctionCallExp* SgUnparse_Info::p_current_function_call

protected

Definition at line 44471 of file Cxx_Grammar.h.

◆ p_current_scope

SgScopeStatement* SgUnparse_Info::p_current_scope

protected

Definition at line 44475 of file Cxx_Grammar.h.

◆ p_reference_node_for_qualification

SgNode* SgUnparse_Info::p_reference_node_for_qualification

protected

Definition at line 44479 of file Cxx_Grammar.h.

◆ p_name_qualification_length

int SgUnparse_Info::p_name_qualification_length

protected

Definition at line 44483 of file Cxx_Grammar.h.

◆ p_type_elaboration_required

bool SgUnparse_Info::p_type_elaboration_required

protected

Definition at line 44487 of file Cxx_Grammar.h.

◆ p_global_qualification_required

bool SgUnparse_Info::p_global_qualification_required

protected

Definition at line 44491 of file Cxx_Grammar.h.

◆ p_nestingLevel

int SgUnparse_Info::p_nestingLevel

protected

Definition at line 44495 of file Cxx_Grammar.h.

◆ p_language

SgFile::languageOption_enum SgUnparse_Info::p_language

protected

Definition at line 44499 of file Cxx_Grammar.h.

◆ p_current_source_file

SgSourceFile* SgUnparse_Info::p_current_source_file

protected

Definition at line 44503 of file Cxx_Grammar.h.

◆ p_use_generated_name_for_template_arguments

bool SgUnparse_Info::p_use_generated_name_for_template_arguments

protected

Definition at line 44507 of file Cxx_Grammar.h.

◆ p_user_defined_literal

bool SgUnparse_Info::p_user_defined_literal

protected

Definition at line 44511 of file Cxx_Grammar.h.

◆ p_declstatement_associated_with_type

SgDeclarationStatement* SgUnparse_Info::p_declstatement_associated_with_type

protected

Definition at line 44515 of file Cxx_Grammar.h.

◆ p_extern_C_with_braces

bool SgUnparse_Info::p_extern_C_with_braces

staticprotected

Definition at line 44519 of file Cxx_Grammar.h.

◆ p_context_for_added_parentheses

bool SgUnparse_Info::p_context_for_added_parentheses

protected

Definition at line 44523 of file Cxx_Grammar.h.

◆ p_previouslyUnparsedStatement

SgStatement* SgUnparse_Info::p_previouslyUnparsedStatement

staticprotected

Definition at line 44527 of file Cxx_Grammar.h.

◆ p_previousStatementUnparsedFromTokenStream

bool SgUnparse_Info::p_previousStatementUnparsedFromTokenStream

staticprotected

Definition at line 44531 of file Cxx_Grammar.h.

The documentation for this class was generated from the following file:

Cxx_Grammar.h

Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Member Typedef Documentation

◆ base_node_type

Member Enumeration Documentation

◆ unparse_type_num

◆ access_attr_enum

◆ anonymous enum

Member Function Documentation

◆ copy()

◆ post_construction_initialization()

◆ set_isTypeSecondPart()

◆ unset_isTypeSecondPart()

◆ set_isTypeFirstPart()

◆ unset_isTypeFirstPart()

◆ SkipConstantFoldedExpressions()

◆ get_forceDefaultConstructorToTriggerError()

◆ class_name()

◆ variantT()

◆ operator delete()

◆ get_traversalSuccessorContainer()

◆ get_traversalSuccessorNamesContainer()

◆ get_numberOfTraversalSuccessors()

◆ get_traversalSuccessorByIndex()

◆ get_childIndex()

◆ roseRTI()

◆ sage_class_name()

◆ accept()

◆ isInMemoryPool()

◆ checkDataMemberPointersIfInMemoryPool()

◆ returnDataMemberPointers()

◆ processDataMemberReferenceToPointers()

◆ getChildIndex()

◆ addRegExpAttribute()

Member Data Documentation

◆ p_unparse_attribute

◆ p_access_attribute

◆ p_nested_expression

◆ p_operator_name

◆ p_var_name

◆ p_declstatement_ptr

◆ p_declaration_of_context

◆ p_current_context

◆ p_array_index_list

◆ p_structureTagProcessingList

◆ p_current_namespace

◆ p_forceDefaultConstructorToTriggerError

◆ p_outputCodeGenerationFormatDelimiters

◆ p_qualifiedNameList

◆ p_current_function_call

◆ p_current_scope

◆ p_reference_node_for_qualification

◆ p_name_qualification_length

◆ p_type_elaboration_required

◆ p_global_qualification_required

◆ p_nestingLevel

◆ p_language

◆ p_current_source_file

◆ p_use_generated_name_for_template_arguments

◆ p_user_defined_literal

◆ p_declstatement_associated_with_type

◆ p_extern_C_with_braces

◆ p_context_for_added_parentheses

◆ p_previouslyUnparsedStatement

◆ p_previousStatementUnparsedFromTokenStream
