Description

This class represents the concept of a scope in C++ (e.g. global scope, fuction scope, etc.).

Scopes are an important aspect of language design. They allow declarations to have a local context and so promote good programming style. Scope statments in C++ include a number of different kinds of statements; the SgFunctionDefinition is a base class for these. Each scope statement contains a symbol table and the SgFunctionDefinitions role is mostly to provide this symbol table and an interface to accessing it.

Definition at line 232731 of file Cxx_Grammar.h.

Inheritance diagram for SgFunctionDefinition:

[legend]

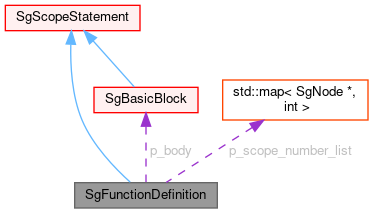

Collaboration diagram for SgFunctionDefinition:

[legend]

Public Types
enum	{ static_variant = V_SgFunctionDefinition }
	static variant value More...

typedef SgScopeStatement	base_node_type

Public Types inherited from SgScopeStatement
enum	{ static_variant = V_SgScopeStatement }
	static variant value More...

typedef SgStatement	base_node_type

Public Types inherited from SgStatement
enum	{ static_variant = V_SgStatement }
	static variant value More...

typedef SgLocatedNode	base_node_type

Public Types inherited from SgLocatedNode
enum	{ static_variant = V_SgLocatedNode }
	static variant value More...

typedef SgNode	base_node_type

Public Types inherited from SgNode
enum	{ static_variant = V_SgNode }
	static variant value More...

enum	{ static_variant = V_SgNode }
	static variant value More...

Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const override
	Makes a copy (deap of shallow depending on SgCopyHelp).

SgFunctionDeclaration *	get_declaration () const

void	set_declaration (SgFunctionDeclaration *new_val)

	SgFunctionDefinition (Sg_File_Info f, SgFunctionDeclaration d, SgBasicBlock *body=0)

	SgFunctionDefinition (SgFunctionDeclaration d, SgBasicBlock body)

void	append_statement (SgStatement *what)

void	prepend_statement (SgStatement *what)

virtual SgName	get_mangled_name (void) const override

std::map< SgNode *, int > &	get_scope_number_list ()

int	get_scope_number (const SgNode *scope) const

void	clearScopeNumbers ()

void	resetScopeNumbers ()

SgName	get_qualified_name () const override
	Returns SgName (a string) representing the name of the current scope.

virtual unsigned int	cfgIndexForEnd () const override
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int) const override
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n) override
	Find the index of n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index) override
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index) override
	Find the in edges of a CFG node – internal version.

virtual SgCtorInitializerList *	get_CtorInitializerList () const

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const override

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const override

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const override

virtual std::string	class_name () const override
	returns a string representing the class name

virtual VariantT	variantT () const override
	returns new style SageIII enum values

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

virtual std::vector< SgNode * >	get_traversalSuccessorContainer () override
	container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

virtual std::vector< std::string >	get_traversalSuccessorNamesContainer () override
	container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

virtual size_t	get_numberOfTraversalSuccessors () override
	return number of children in the traversal successor list

virtual SgNode *	get_traversalSuccessorByIndex (size_t idx) override
	index-based access to traversal successors by index number

virtual size_t	get_childIndex (SgNode *child) override
	index-based access to traversal successors by child node

virtual RTIReturnType	roseRTI () override
	return C++ Runtime-Time-Information

virtual const char *	sage_class_name () const override

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

virtual void	accept (ROSE_VisitorPattern &visitor) override
	support for the classic visitor pattern done in GoF

virtual bool	isInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual void	checkDataMemberPointersIfInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const override
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *) override
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

virtual long	getChildIndex (SgNode *childNode) const override
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

	SgFunctionDefinition (const SgFunctionDefinitionStorageClass &source)
	IR node constructor to support AST File I/O.

SgFunctionDefinition *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	post_construction_initialization () override
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

SgBasicBlock *	get_body () const
	Access function for p_body.

void	set_body (SgBasicBlock *body)
	Access function for p_body.

virtual	~SgFunctionDefinition ()
	This is the destructor.

	SgFunctionDefinition (Sg_File_Info startOfConstruct, SgBasicBlock body=NULL)

	SgFunctionDefinition (SgBasicBlock *body)

Public Member Functions inherited from SgScopeStatement
	SgScopeStatement (Sg_File_Info *file_info=NULL)
	This is the constructor.

size_t	count_symbol (const SgName &n)
	return number of entries in symbol table for the specified name (note that it is sometime OK for there to be more than 1).

size_t	count_alias_symbol (const SgName &n)
	Count for alias symbols of a specific name, used in name qualification support.

size_t	symbol_table_size ()
	Return the size of the symbol table.

void	insert_symbol (const SgName &n, SgSymbol *s)
	Puts a SgSymbol object into the local symbol table.

int	lookup_symbol (const SgName &n, SgSymbol *s) const

bool	symbol_exists (const SgName &, SgSymbol *sp) const

bool	symbol_exists (const SgName &name) const

bool	symbol_exists (const SgSymbol *sp) const

void	remove_symbol (SgSymbol *s)

SgSymbol *	lookup_symbol (const SgName &n, SgTemplateParameterPtrList templateParameterList=NULL, SgTemplateArgumentPtrList templateArgumentList=NULL) const
	get the first symbol with name (note that "" is a valid name and is used for unnamed declarations) the input name is stored as internal state to support the use of next_XXX_symbol() member function.

SgVariableSymbol *	lookup_var_symbol (const SgName &n) const

SgVariableSymbol *	lookup_variable_symbol (const SgName &n) const

SgClassSymbol *	lookup_class_symbol (const SgName &n, SgTemplateArgumentPtrList *templateArgumentsList=NULL) const

SgNonrealSymbol *	lookup_nonreal_symbol (const SgName &n, SgTemplateParameterPtrList templateParameterList=NULL, SgTemplateArgumentPtrList templateArgumentsList=NULL) const

SgFunctionSymbol *	lookup_function_symbol (const SgName &n) const

SgFunctionSymbol *	lookup_function_symbol (const SgName &n, const SgType t, SgTemplateArgumentPtrList templateArgumentsList=NULL) const

SgTypedefSymbol *	lookup_typedef_symbol (const SgName &n) const

SgEnumSymbol *	lookup_enum_symbol (const SgName &n) const

SgEnumFieldSymbol *	lookup_enum_field_symbol (const SgName &n) const

SgLabelSymbol *	lookup_label_symbol (const SgName &n) const

SgJavaLabelSymbol *	lookup_java_label_symbol (const SgName &n) const

SgNamespaceSymbol *	lookup_namespace_symbol (const SgName &n) const

SgTemplateClassSymbol *	lookup_template_class_symbol (const SgName &n, SgTemplateParameterPtrList templateParameterList, SgTemplateArgumentPtrList templateSpecializationArgumentList) const

SgTemplateTypedefSymbol *	lookup_template_typedef_symbol (const SgName &n) const

SgClassSymbol *	lookup_nontemplate_class_symbol (const SgName &n, SgTemplateArgumentPtrList *templateArgumentsList) const

SgTemplateFunctionSymbol *	lookup_template_function_symbol (const SgName &n, const SgType t, SgTemplateParameterPtrList templateParameterList) const

SgTemplateVariableSymbol *	lookup_template_variable_symbol (const SgName &n, SgTemplateParameterPtrList templateParameterList, SgTemplateArgumentPtrList templateArgumentsList) const

SgFunctionSymbol *	lookup_nontemplate_function_symbol (const SgName &n, const SgType t, SgTemplateArgumentPtrList templateArgumentsList=NULL) const

SgTemplateMemberFunctionSymbol *	lookup_template_member_function_symbol (const SgName &n, const SgType t, SgTemplateParameterPtrList templateParameterList) const

SgMemberFunctionSymbol *	lookup_nontemplate_member_function_symbol (const SgName &n, const SgType t, SgTemplateArgumentPtrList templateArgumentsList=NULL) const

SgAliasSymbol *	lookup_alias_symbol (const SgName &n, SgSymbol *sp) const

bool	hasAmbiguity (SgName &name, SgSymbol *symbol)

SgSymbol *	first_any_symbol () const
	get the first symbol independent of name (lack of name is stored as internal state)

SgVariableSymbol *	first_variable_symbol () const

SgClassSymbol *	first_class_symbol () const

SgFunctionSymbol *	first_function_symbol () const

SgTypedefSymbol *	first_typedef_symbol () const

SgEnumSymbol *	first_enum_symbol () const

SgEnumFieldSymbol *	first_enum_field_symbol () const

SgLabelSymbol *	first_label_symbol () const

SgNamespaceSymbol *	first_namespace_symbol () const

SgTemplateSymbol *	first_template_symbol () const

SgSymbol *	next_any_symbol () const
	Only use after lookup_XXX_symbol(const SgName&) or after first_XXX_symbol() These functions use the stored state of the name or lack of name (from the lookup_XXX_symbol(const SgName&) or after first_XXX_symbol() member function) and return the next symbol.

SgVariableSymbol *	next_variable_symbol () const

SgClassSymbol *	next_class_symbol () const

SgFunctionSymbol *	next_function_symbol () const

SgTypedefSymbol *	next_typedef_symbol () const

SgEnumSymbol *	next_enum_symbol () const

SgEnumFieldSymbol *	next_enum_field_symbol () const

SgLabelSymbol *	next_label_symbol () const

SgNamespaceSymbol *	next_namespace_symbol () const

SgTemplateSymbol *	next_template_symbol () const

void	print_symboltable (const std::string &str, std::ostream &os)

void	print_symboltable (const std::string &label, VariantT nodeType)

void	print_symboltable (const std::string &str)

bool	containsOnlyDeclarations () const
	This function is used to indicate if either the getDeclarationList() or getStatementList() can be called to return a reference to the list of IR nodes (manipulation of the list is then possible).

void	insertStatementInScope (SgStatement *newTransformationStatement, bool atTop)

SgDeclarationStatementPtrList &	getDeclarationList ()
	Gets reference to internal STL list of pointers to SgDeclarationStatement objects (only defined for scopes containing declarations, see bool containsOnlyDeclarations()).

SgStatementPtrList &	getStatementList ()
	Gets reference to internal STL list of pointers to SgStatement objects (only defined for scopes containing declarations, see bool containsOnlyDeclarations()).

const SgDeclarationStatementPtrList &	getDeclarationList () const

const SgStatementPtrList &	getStatementList () const

const SgStatementPtrList	generateStatementList () const
	Generate s list of statements from either the existing list of statements or the list of declarations.

bool	statementExistsInScope (SgStatement *statement)
	Test for existence of statement is scope.

bool	supportsDefiningFunctionDeclaration ()
	Reports if scope can support defining function declarations. Not all scopes permit function declarations. Any function prototype in a scope appropriate for a function definition triggers requirements for name qualification. This function returns true if the scope is appropriate for the definition of a function or member function (i.e. is a SgGlobal, SgClassDefinition, or SgNamespaceDefinitionStatement).

unsigned int	generateUniqueStatementNumberForScope (SgStatement *statement)
	Generate a unique number for the statement in the scope.

bool	generateUniqueStatementNumberForScopeHelper (unsigned int &counter, SgStatement *statement)
	Helper for generateUniqueStatementNumberForScope: return true if the element is found, incrementing the counter once for each element of tree up to either the element of the end of the sub-statements in the current statement.

std::set< SgSymbol * > &	get_type_elaboration_list ()
	This list of symbols represent types that will require type elaboration when source code is generated.

std::set< SgSymbol * > &	get_hidden_type_list ()
	This list of symbols represent types that will require name qualification when the type name is output.

std::set< SgSymbol * > &	get_hidden_declaration_list ()
	This list of symbols represent declarations that will require name qualification when the identifier name is output.

void	set_type_elaboration_list (const std::set< SgSymbol * > &type_elaboration_list)

void	set_hidden_type_list (const std::set< SgSymbol * > &hidden_type_list)

void	set_hidden_declaration_list (const std::set< SgSymbol * > &hidden_declaration_list)

void	append_statement (SgStatement *stmt)
	Higher level function to handle statements and declarations is scopes.

void	prepend_statement (SgStatement *stmt)

SgStatement *	firstStatement () const

SgStatement *	lastStatement () const

bool	isCaseInsensitive () const
	Query of scope symbol table behavior (is symbol table behavior case sensitive (C/C++) or case insensitive (Fortran).

void	setCaseInsensitive (bool b)

bool	isNamedScope ()
	Some scopes have associated names for purposed of name qualification. This returns true if the scope has a name, false if not.

SgName	associatedScopeName ()
	Some scopes have associated names for purposed of name qualification. This generates the associated name.

SgSymbolTable *	get_symbol_table () const
	Returns a pointer to the locally strored SgSymbolTable.

void	set_symbol_table (SgSymbolTable *symbol_table)
	Sets the pointer to the locally strored SgSymbolTable.

template<class T >
SgFunctionSymbol *	find_symbol_by_type_of_function (const SgName &name, const SgType func_type, SgTemplateParameterPtrList templateParameterList, SgTemplateArgumentPtrList *templateArgumentList)

template<class T >
SgSymbol *	find_symbol_from_declaration (const T *node) const

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgScopeStatement (const SgScopeStatementStorageClass &source)
	IR node constructor to support AST File I/O.

SgScopeStatement *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	post_construction_initialization () override
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

SgTypeTable *	get_type_table () const

void	set_type_table (SgTypeTable *type_table)

SgPragma *	get_pragma () const

void	set_pragma (SgPragma *pragma)

virtual	~SgScopeStatement ()
	This is the destructor.

Public Member Functions inherited from SgStatement
virtual SgScopeStatement *	get_scope (void) const
	Returns scope of current statement.

virtual void	setExtern ()
	This function sets "extern" status for the current statement.

virtual void	setStatic ()
	This function sets "static" status for the current statement.

void	insert_statement (SgStatement target, SgStatement newstmt, bool inFront=true)
	This function inserts a single statement at the position indicated by target.

void	insert_statement (SgStatement *target, const SgStatementPtrList &newstmtList, bool inFront=true)
	This function inserts a list of statements at the position indicated by target.

void	replace_statement (SgStatement target, SgStatement newstmt)
	This function replaces the target statement with a single statement.

void	replace_statement (SgStatement *target, const SgStatementPtrList &newstmtList)
	This function replaces the target statement with a list of statements.

void	remove_statement (SgStatement *)
	This function removes the target statement from the AST.

void	insert_statement_from_basicBlock (SgStatement target, SgStatement newstmt, bool inFront=true)
	This function inserts a statement at the position indicated by target. If newstmt is a basicBlock, statements inside newstmt are extracted and then inserted.

void	replace_statement_from_basicBlock (SgStatement target, SgStatement newstmt)
	This function replaces the target statement with a new statement. If newstmt is a basicBlock, statements inside newstmt are extracted and then inserted.

virtual int	replace_expression (SgExpression original_expression, SgExpression new_expression)
	support general replace functions, used in statements that directly contain SgExpression IR nodes.

virtual void	set_scope (SgScopeStatement *newScope)
	Support for setting scopes (only meaningful on IR statements that store the scope explicitly).

virtual bool	hasExplicitScope () const
	Support for where the scope is explicitly required.

virtual SgSymbol *	get_symbol_from_symbol_table () const
	Get the associated symbol from the symbol table in the stored scope.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n) override
	Find the index just after n in this node's CFG children.

virtual bool	isChildUsedAsLValue (const SgExpression *child) const
	Virtual function to determine if the provided expression is used as an l-value within the cotext of this statement.

virtual void	set_end_numeric_label (SgLabelRefExp *end_numeric_label)

virtual bool	has_end_numeric_label () const

bool	hasExplicitType ()
	Some statement store internal SgType pointers explicitly. This function is true if it has a data member that is a type (only applies to SgTypedefDeclaration).

void	post_construction_initialization () override
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgStatement (const SgStatementStorageClass &source)
	IR node constructor to support AST File I/O.

SgStatement *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

SgLabelRefExp *	get_numeric_label () const

void	set_numeric_label (SgLabelRefExp *numeric_label)

int	get_source_sequence_value () const

void	set_source_sequence_value (int source_sequence_value)

virtual	~SgStatement ()
	This is the destructor.

	SgStatement (Sg_File_Info *startOfConstruct)
	This is the constructor.

Public Member Functions inherited from SgLocatedNode
const std::string &	getFilenameString () const

void	addToAttachedPreprocessingInfo (PreprocessingInfo *prepInfoPtr, PreprocessingInfo::RelativePositionType locationInList=PreprocessingInfo::after)
	This function adds comment or CPP directives to the current IR node.

void	insertToAttachedPreprocessingInfo (PreprocessingInfo prepInfoPtr, PreprocessingInfo anchorInfoPtr, bool insertAfter=true)
	Insert prepInfo After (or before if last parameter is false) an anchor info ptr in the list of preprocessing info attached to the current node. This is useful to insert things in the middle.

virtual Sg_File_Info *	get_file_info () const override
	Interface function to implement original SAGE interface to SgFile_Info objects.

virtual void	set_file_info (Sg_File_Info *X)
	Access function calls set_startingConstruct(Sg_File_Info*) member function.

void	setCompilerGenerated ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as compiler generated.

void	unsetCompilerGenerated ()

bool	isCompilerGenerated () const
	Simple test for if this is a compiler generated node.

void	setTransformation ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as a transformation.

void	unsetTransformation ()

bool	isTransformation () const
	Simple test for if this is a part of a transformation.

void	setFrontendSpecific ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as front-end specific (generated by the front-end to support a specific backend compiler; e.g. GNU gcc and g++).

void	unsetFrontendSpecific ()

bool	isFrontendSpecific () const
	Simple test for if this is a frontend specific IR node.

void	setShared ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as shared.

void	unsetShared ()

bool	isShared () const
	Simple test for if this is a shared IR node.

void	setSourcePositionUnavailableInFrontend ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as to when the information was unavilable in the front-end (even if it typically is there are special cases).

void	unsetSourcePositionUnavailableInFrontend ()

void	setOutputInCodeGeneration ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as to when the information was unavilable in the front-end (even if it typically is there are special cases).

void	unsetOutputInCodeGeneration ()

bool	isOutputInCodeGeneration () const

int	get_physical_file_id ()
	Allow IR nodes (mostly SgLocatedNode) to be queried for there physical file ID.

AttachedPreprocessingInfoType *&	getAttachedPreprocessingInfo (void)
	Computes the number of nodes in the defined subtree of the AST.

Sg_File_Info *	generateMatchingFileInfo ()

virtual void	addNewAttribute (std::string s, AstAttribute *a) override
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const override
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a) override
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a) override
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s) override
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const override
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const override
	Returns the number of attributes on this IR node.

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgLocatedNode (const SgLocatedNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgLocatedNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

Sg_File_Info *	get_startOfConstruct () const override
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

void	set_startOfConstruct (Sg_File_Info *startOfConstruct)
	This function sets the current source location position of the start of the current construct.

Sg_File_Info *	get_endOfConstruct () const override
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

void	set_endOfConstruct (Sg_File_Info *endOfConstruct)
	This function sets the current source location position of the end of the current construct.

AttachedPreprocessingInfoType *	get_attachedPreprocessingInfoPtr () const

void	set_attachedPreprocessingInfoPtr (AttachedPreprocessingInfoType *attachedPreprocessingInfoPtr)

AstAttributeMechanism *	get_attributeMechanism () const override
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

void	set_attributeMechanism (AstAttributeMechanism *attributeMechanism) override
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

bool	get_containsTransformationToSurroundingWhitespace () const

void	set_containsTransformationToSurroundingWhitespace (bool containsTransformationToSurroundingWhitespace)

virtual	~SgLocatedNode ()
	This is the destructor.

	SgLocatedNode (Sg_File_Info *startOfConstruct=NULL)
	This is the constructor.

Public Member Functions inherited from SgNode
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

int	variant () const
	Older version function returns enum value "NODE".

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

virtual	~SgNode ()
	This is the destructor.

	SgNode ()
	This is the constructor.

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

int	variant () const

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

Static Public Member Functions
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgFunctionDefinition *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgFunctionDefinition *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgFunctionDefinition *sgnode)

Static Public Member Functions inherited from SgScopeStatement
static bool	isEquivalentScope (SgScopeStatement scope1, SgScopeStatement scope2)

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgScopeStatement *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgScopeStatement *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgScopeStatement *sgnode)

Static Public Member Functions inherited from SgStatement
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgStatement *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgStatement *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgStatement *sgnode)

Static Public Member Functions inherited from SgLocatedNode
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgLocatedNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgLocatedNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgLocatedNode *sgnode)

Static Public Member Functions inherited from SgNode
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

Protected Member Functions
virtual bool	replace_child (SgStatement , SgStatement , bool extractListFromBasicBlock=false) override
	Private supporting function for low level SageIII rewrite interface.

Protected Member Functions inherited from SgStatement
virtual bool	insert_child (SgStatement , SgStatement , bool inFront=true, bool extractListFromBasicBlock=false)
	Private supporting function for low level SageIII rewrite interface.

Protected Member Functions inherited from SgNode
virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

Protected Attributes
SgBasicBlock *	p_body
	This pointer is always valid and points to a SgBasicBlock holding all the statements in the function.

std::map< SgNode *, int >	p_scope_number_list

Protected Attributes inherited from SgScopeStatement
SgSymbolTable *	p_symbol_table
	This pointer is always valid and stores the symbl table.

SgTypeTable *	p_type_table

std::set< SgSymbol * >	p_type_elaboration_list

std::set< SgSymbol * >	p_hidden_type_list

std::set< SgSymbol * >	p_hidden_declaration_list

SgPragma *	p_pragma

Protected Attributes inherited from SgStatement
SgLabelRefExp *	p_numeric_label

int	p_source_sequence_value

Protected Attributes inherited from SgLocatedNode
Sg_File_Info *	p_startOfConstruct
	This pointer is always valid and stores the source position of the start of the current construct.

Sg_File_Info *	p_endOfConstruct
	This pointer is always valid and stores the source position of the end of the current construct.

AttachedPreprocessingInfoType *	p_attachedPreprocessingInfoPtr
	Holds comments and/or preprocessor directives located before or after the current statement of expression.

AstAttributeMechanism *	p_attributeMechanism

bool	p_containsTransformationToSurroundingWhitespace

Protected Attributes inherited from SgNode
SgNode *	p_parent
	This is the pointer to the parent IR node in the AST.

bool	p_isModified
	Records if IR node has been modified (data members reset).

bool	p_containsTransformation

SgNode *	p_freepointer
	This is the pointer to the chain of previously freed objects.

Additional Inherited Members
Static Protected Attributes inherited from SgNode
static std::vector< std::tuple< unsigned char *, unsigned, VariantT > >	all_pools

static SgFunctionTypeTable *	p_globalFunctionTypeTable
	Pointer to symbol table specific to function types.

static SgTypeTable *	p_globalTypeTable

static std::map< SgNode *, std::string >	p_globalMangledNameMap
	Cache of mangled names to avoid regeneration of previously build mangled names or parts of mangled names. This is a performance optimization.

static std::map< std::string, uint64_t >	p_shortMangledNameCache
	STL map used as a cache to shorten generated mangled names. This is mostly a space optimization ofr mangled names of templates.

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForNames

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTypes

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTemplateHeaders

static std::map< SgNode *, std::string >	p_globalTypeNameMap

static std::map< SgNode , std::map< SgNode , std::string > >	p_globalQualifiedNameMapForMapsOfTypes

Member Typedef Documentation

◆ base_node_type

typedef SgScopeStatement SgFunctionDefinition::base_node_type

Definition at line 233196 of file Cxx_Grammar.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

static variant value

Definition at line 232817 of file Cxx_Grammar.h.

Constructor & Destructor Documentation

◆ ~SgFunctionDefinition()

SgFunctionDefinition::~SgFunctionDefinition ( )

virtual

This is the destructor.

There are a lot of things to delete, but nothing is deleted in this destructor.

Member Function Documentation

◆ copy()

SgFunctionDefinition::copy ( SgCopyHelp & help ) const

overridevirtual

Makes a copy (deap of shallow depending on SgCopyHelp).

Returns: Returns pointer to copy of SgFunctionDefinition.

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ replace_child()

virtual bool SgFunctionDefinition::replace_child	(	SgStatement *	target,
		SgStatement *	newStmt,
		bool	extractListFromBasicBlock = `false`
	)

overrideprotectedvirtual

Private supporting function for low level SageIII rewrite interface.

This function implements special semantics for the insertion of a collection of statements in a block. If extractListFromBasicBlock is true then the statements in the block are extracts and placed into the same scope as the target position.

Returns: Returns bool.

Reimplemented from SgStatement.

◆ get_mangled_name()

virtual SgName SgFunctionDefinition::get_mangled_name ( void ) const

overridevirtual

Reimplemented from SgScopeStatement.

◆ get_qualified_name()

SgFunctionDefinition::get_qualified_name ( ) const

overridevirtual

Returns SgName (a string) representing the name of the current scope.

See discussion of mangled names in the documentation.

Returns: Returns SgName (a string).

Reimplemented from SgScopeStatement.

◆ cfgIndexForEnd()

virtual unsigned int SgFunctionDefinition::cfgIndexForEnd ( ) const

overridevirtual

Determine the CFG index for the end of this construct.

Reimplemented from SgStatement.

◆ cfgIsIndexInteresting()

virtual bool SgFunctionDefinition::cfgIsIndexInteresting ( unsigned int index ) const

overridevirtual

Determine whether a particular CFG node index is "interesting" for this kind of node.

Reimplemented from SgStatement.

◆ cfgFindChildIndex()

virtual unsigned int SgFunctionDefinition::cfgFindChildIndex ( SgNode * n )

overridevirtual

Find the index of n in this node's CFG children.

Reimplemented from SgStatement.

◆ cfgOutEdges()

virtual std::vector< VirtualCFG::CFGEdge > SgFunctionDefinition::cfgOutEdges ( unsigned int index )

overridevirtual

Find the out edges of a CFG node – internal version.

Reimplemented from SgStatement.

◆ cfgInEdges()

virtual std::vector< VirtualCFG::CFGEdge > SgFunctionDefinition::cfgInEdges ( unsigned int index )

overridevirtual

Find the in edges of a CFG node – internal version.

Reimplemented from SgStatement.

◆ fixupCopy_scopes()

virtual void SgFunctionDefinition::fixupCopy_scopes	(	SgNode *	copy,
		SgCopyHelp &	help
	)		const

overridevirtual

Reimplemented from SgScopeStatement.

◆ fixupCopy_symbols()

virtual void SgFunctionDefinition::fixupCopy_symbols	(	SgNode *	copy,
		SgCopyHelp &	help
	)		const

overridevirtual

Reimplemented from SgScopeStatement.

◆ fixupCopy_references()

virtual void SgFunctionDefinition::fixupCopy_references	(	SgNode *	copy,
		SgCopyHelp &	help
	)		const

overridevirtual

Reimplemented from SgScopeStatement.

◆ class_name()

virtual std::string SgFunctionDefinition::class_name ( ) const

overridevirtual

returns a string representing the class name

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

Referenced by SageInterface::call_liveness_analysis().

◆ variantT()

virtual VariantT SgFunctionDefinition::variantT ( ) const

overridevirtual

returns new style SageIII enum values

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ operator delete()

void SgFunctionDefinition::operator delete ( void * pointer )

inline

Definition at line 232872 of file Cxx_Grammar.h.

◆ get_traversalSuccessorContainer()

virtual std::vector< SgNode * > SgFunctionDefinition::get_traversalSuccessorContainer ( )

overridevirtual

container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ get_traversalSuccessorNamesContainer()

virtual std::vector< std::string > SgFunctionDefinition::get_traversalSuccessorNamesContainer ( )

overridevirtual

container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ get_numberOfTraversalSuccessors()

virtual size_t SgFunctionDefinition::get_numberOfTraversalSuccessors ( )

overridevirtual

return number of children in the traversal successor list

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ get_traversalSuccessorByIndex()

virtual SgNode * SgFunctionDefinition::get_traversalSuccessorByIndex ( size_t idx )

overridevirtual

index-based access to traversal successors by index number

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ get_childIndex()

virtual size_t SgFunctionDefinition::get_childIndex ( SgNode * child )

overridevirtual

index-based access to traversal successors by child node

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ roseRTI()

virtual RTIReturnType SgFunctionDefinition::roseRTI ( )

overridevirtual

return C++ Runtime-Time-Information

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ sage_class_name()

virtual const char * SgFunctionDefinition::sage_class_name ( ) const

overridevirtual

returns a C style string (char*) representing the class name

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ accept()

virtual void SgFunctionDefinition::accept ( ROSE_VisitorPattern & visitor )

overridevirtual

support for the classic visitor pattern done in GoF

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ isInMemoryPool()

virtual bool SgFunctionDefinition::isInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ checkDataMemberPointersIfInMemoryPool()

virtual void SgFunctionDefinition::checkDataMemberPointersIfInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ returnDataMemberPointers()

virtual std::vector< std::pair< SgNode *, std::string > > SgFunctionDefinition::returnDataMemberPointers ( ) const

overridevirtual

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns: STL vector of pairs of SgNode* and strings

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ processDataMemberReferenceToPointers()

virtual void SgFunctionDefinition::processDataMemberReferenceToPointers ( ReferenceToPointerHandler * )

overridevirtual

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ getChildIndex()

virtual long SgFunctionDefinition::getChildIndex ( SgNode * childNode ) const

overridevirtual

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning: The mapping on children to integer values could change from release to release of ROSE.

Returns: long

Reimplemented from SgScopeStatement.

Reimplemented in SgTemplateFunctionDefinition.

◆ addRegExpAttribute()

SgFunctionDefinition * SgFunctionDefinition::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

◆ post_construction_initialization()

void SgFunctionDefinition::post_construction_initialization ( )

overridevirtual

Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

Reimplemented from SgNode.

Reimplemented in SgTemplateFunctionDefinition.

◆ get_body()

SgFunctionDefinition::get_body ( ) const

Access function for p_body.

Returns: Returns a pointer to a SgBasicBlock.

Referenced by SageInterface::checkSymbolTables(), SageInterface::collectReadWriteRefs(), SageInterface::instrumentEndOfFunction(), and SageInterface::normalizeForLoopInitDeclaration().

◆ set_body()

SgFunctionDefinition::set_body ( SgBasicBlock * body )

Access function for p_body.

Parameters

body	SgBasicBlock pointer

Returns: Returns void.

Referenced by SageBuilder::buildDefiningFunctionDeclaration_T().

Member Data Documentation

◆ p_body

SgFunctionDefinition::p_body

protected

This pointer is always valid and points to a SgBasicBlock holding all the statements in the function.

Definition at line 233224 of file Cxx_Grammar.h.

◆ p_scope_number_list

std::map<SgNode*,int> SgFunctionDefinition::p_scope_number_list

protected

Definition at line 233228 of file Cxx_Grammar.h.

The documentation for this class was generated from the following files:

Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Typedef Documentation

◆ base_node_type

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ ~SgFunctionDefinition()

Member Function Documentation

◆ copy()

◆ replace_child()

◆ get_mangled_name()

◆ get_qualified_name()

◆ cfgIndexForEnd()

◆ cfgIsIndexInteresting()

◆ cfgFindChildIndex()

◆ cfgOutEdges()

◆ cfgInEdges()

◆ fixupCopy_scopes()

◆ fixupCopy_symbols()

◆ fixupCopy_references()

◆ class_name()

◆ variantT()

◆ operator delete()

◆ get_traversalSuccessorContainer()

◆ get_traversalSuccessorNamesContainer()

◆ get_numberOfTraversalSuccessors()

◆ get_traversalSuccessorByIndex()

◆ get_childIndex()

◆ roseRTI()

◆ sage_class_name()

◆ accept()

◆ isInMemoryPool()

◆ checkDataMemberPointersIfInMemoryPool()

◆ returnDataMemberPointers()

◆ processDataMemberReferenceToPointers()

◆ getChildIndex()

◆ addRegExpAttribute()

◆ post_construction_initialization()

◆ get_body()

◆ set_body()

Member Data Documentation

◆ p_body

◆ p_scope_number_list
