SgIncidenceDirectedGraph Class Reference

Description

Definition at line 40853 of file Cxx_Grammar.h.

Inheritance diagram for SgIncidenceDirectedGraph:
Inheritance graph
[legend]

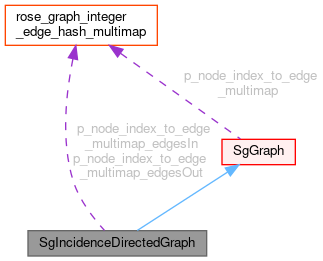

Collaboration diagram for SgIncidenceDirectedGraph:
Collaboration graph
[legend]

Public Types

enum  { static_variant = V_SgIncidenceDirectedGraph }
 static variant value

typedef SgGraph base_node_type

- Public Types inherited from SgGraph
enum  GraphEdgeType {
  e_type_error,
  none,
  cfg,
  usage,
  e_last_type
}
 Edge Type. More...

enum  GraphProperties {
  e_property_error,
  name,
  type,
  nodest_jmp,
  itself_call,
  nodest_call,
  interrupt,
  eval,
  regs,
  done,
  dfa_standard,
  dfa_resolved_func,
  dfa_unresolved_func,
  dfa_variable,
  dfa_conditional_def,
  edgeLabel,
  visitedCounter,
  variable,
  dfa_bufferoverflow,
  e_last_property
}
 Graph Properties. More...

enum  { static_variant = V_SgGraph }
 static variant value

typedef std::pair< int, int > BoostEdgeType
 Simple edge type used to input data to Boost algorithms.

typedef std::vector< BoostEdgeTypeSgBoostEdgeList

typedef std::vector< int > SgBoostEdgeWeightList

typedef SgSupport base_node_type

- Public Types inherited from SgSupport
enum  { static_variant = V_SgSupport }
 static variant value

typedef SgNode base_node_type

- Public Types inherited from SgNode
enum  { static_variant = V_SgNode }
 static variant value


Public Member Functions

virtual SgNodecopy (SgCopyHelp &help) const override
 This function clones the current IR node object recursively or not, depending on the argument. More...

std::set< SgGraphEdge * > getEdge (SgGraphNode *src)

bool checkIfGraphEdgeExists (SgGraphNode *src)

void post_construction_initialization () override
 Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

SgDirectedGraphEdgeaddDirectedEdge (SgGraphNode *a, SgGraphNode *b, const std::string &name="")
 Support for adding SgGraphEdge to SgGraph.

SgDirectedGraphEdgeaddDirectedEdge (SgDirectedGraphEdge *edge)
 Add support for externally build SgGraphNode objects.

bool removeDirectedEdge (SgDirectedGraphEdge *edge)
 Remove an edge from graph.

void getSuccessors (const SgGraphNode *node, std::vector< SgGraphNode * > &vec) const

void getPredecessors (const SgGraphNode *node, std::vector< SgGraphNode * > &vec) const

std::set< SgDirectedGraphEdge * > getDirectedEdge (SgGraphNode *src, SgGraphNode *trg)

bool checkIfDirectedGraphEdgeExists (SgGraphNode *src, SgGraphNode *trg)

std::set< SgDirectedGraphEdge * > computeEdgeSetIn (SgGraphNode *node)

std::set< int > computeEdgeSetIn (int node_index)

std::set< SgDirectedGraphEdge * > computeEdgeSetOut (SgGraphNode *node)

std::set< int > computeEdgeSetOut (int node_index)

virtual std::string class_name () const override
 returns a string representing the class name

virtual VariantT variantT () const override
 returns new style SageIII enum values

void * operator new (size_t size)
 returns pointer to newly allocated IR node

void operator delete (void *pointer, size_t size)
 deallocated memory for IR node (returns memory to memory pool for reuse)

void operator delete (void *pointer)

virtual std::vector< SgNode * > get_traversalSuccessorContainer () override
 container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

virtual std::vector< std::string > get_traversalSuccessorNamesContainer () override
 container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

virtual size_t get_numberOfTraversalSuccessors () override
 return number of children in the traversal successor list

virtual SgNodeget_traversalSuccessorByIndex (size_t idx) override
 index-based access to traversal successors by index number

virtual size_t get_childIndex (SgNode *child) override
 index-based access to traversal successors by child node

virtual RTIReturnType roseRTI () override
 return C++ Runtime-Time-Information

virtual const char * sage_class_name () const override ROSE_DEPRECATED_FUNCTION

void executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

virtual void accept (ROSE_VisitorPattern &visitor) override
 support for the classic visitor pattern done in GoF

virtual bool isInMemoryPool () override
 FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap. More...

virtual void checkDataMemberPointersIfInMemoryPool () override
 FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap. More...

virtual std::vector< std::pair< SgNode *, std::string > > returnDataMemberPointers () const override
 FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools More...

virtual void processDataMemberReferenceToPointers (ReferenceToPointerHandler *) override
 FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools More...

virtual long getChildIndex (SgNode *childNode) const override
 FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node. More...

 SgIncidenceDirectedGraph (const SgIncidenceDirectedGraphStorageClass &source)
 IR node constructor to support AST File I/O.

SgIncidenceDirectedGraphaddRegExpAttribute (std::string s, AstRegExAttribute *a)
 Support for AST matching using regular expression. More...

const rose_graph_integer_edge_hash_multimapget_node_index_to_edge_multimap_edgesOut () const

rose_graph_integer_edge_hash_multimapget_node_index_to_edge_multimap_edgesOut ()

const rose_graph_integer_edge_hash_multimapget_node_index_to_edge_multimap_edgesIn () const

rose_graph_integer_edge_hash_multimapget_node_index_to_edge_multimap_edgesIn ()

 SgIncidenceDirectedGraph (std::string name="")

- Public Member Functions inherited from SgGraph
int hashCode (const char *p, int len) const

void append_properties (int addr, const std::string &prop)

SgGraphNodeaddNode (const std::string &name="", SgNode *sg_node=NULL)
 Support for adding SgGraphNode to SgGraph.

SgGraphNodeaddNode (SgGraphNode *node)
 Add support for externally build SgGraphNode objects.

SgGraphEdgeaddEdge (SgGraphNode *a, SgGraphNode *b, const std::string &name="")
 Support for adding SgGraphEdge to SgGraph.

SgGraphEdgeaddEdge (SgGraphEdge *edge)
 Add support for externally build SgGraphNode objects.

std::vector< SgGraphEdge * > generateSpanningTree ()
 Support for Boost Minimum Spanning Tree.

std::string getProperty (SgGraph::GraphProperties property, SgGraphNode *node)

std::string getProperty (SgGraph::GraphProperties property, SgGraphEdge *edge)

void setProperty (SgGraph::GraphProperties property, SgGraphNode *node, std::string value)

void setProperty (SgGraph::GraphProperties property, SgGraphEdge *edge, std::string value)

void checkIfGraphNodeExists (const std::string &trg_mnemonic, std::vector< SgGraphNode * > &nodes)

bool exists (SgGraphNode *node)
 Check if the node is present in the graph.

bool exists (SgGraphEdge *edge)
 Check if the edge is present in the graph.

std::set< SgGraphEdge * > computeEdgeSet (SgGraphNode *node)
 Builds a set of edges that are associated with a specific node.

std::set< int > computeEdgeSet (int node_index)
 Integer index version of "std::set<SgGraphEdge*> computeEdgeSet( SgGraphNode* node );".

std::set< std::pair< int, int > > computeNodeIndexPairSet (int node_index)
 Build set of node index pairs associated with node index (one of the value of the pair will be equal to the input node_index).

std::set< SgGraphNode * > computeNodeSet (const std::string &label)
 Builds a set of node index values associated with a label.

std::set< SgGraphNode * > computeNodeSet ()
 Builds a set of all nodes in the graph.

std::set< int > computeNodeIndexSet (const std::string &label)
 Integer index version of "std::set<SgGraphNode*> computeNodeSet( const std::string & label );".

size_t numberOfGraphNodes () const

size_t numberOfGraphEdges () const

void display_node_index_to_edge_multimap () const

void display_node_index_to_node_map () const

void display_edge_index_to_edge_map () const

void display_node_index_pair_to_edge_multimap () const

void display_string_to_node_index_multimap () const

void display_string_to_edge_index_multimap () const

void resize_hash_maps (size_t numberOfNodes, size_t numberOfEdges=10)
 Resize the internal hash tables based on the number of nodes (hash_maps and hash_multimaps for edges are made larger by multiplying by the value "numberOfEdges" ).

size_t memory_usage ()
 Report the size in bytes of the graph (includes all edges and ndes from all hash_maps and hash_multimaps).

virtual void addNewAttribute (std::string s, AstAttribute *a) override
 Add a new attribute represented by the named string.

virtual AstAttributegetAttribute (std::string s) const override
 Returns attribute of name 's'.

virtual void updateAttribute (std::string s, AstAttribute *a) override
 Replace existing attribute of name 's' with new AstAttribute.

virtual void setAttribute (std::string s, AstAttribute *a) override
 This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void removeAttribute (std::string s) override
 Remove attribute of name 's' if present.

virtual bool attributeExists (std::string s) const override
 Tests if attribute of name 's' is present.

virtual int numberOfAttributes () const override
 Returns the number of attributes on this IR node.

void * operator new (size_t size)
 returns pointer to newly allocated IR node

void operator delete (void *pointer, size_t size)
 deallocated memory for IR node (returns memory to memory pool for reuse)

void operator delete (void *pointer)

void executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

 SgGraph (const SgGraphStorageClass &source)
 IR node constructor to support AST File I/O.

SgGraphaddRegExpAttribute (std::string s, AstRegExAttribute *a)
 Support for AST matching using regular expression. More...

std::string get_name () const

void set_name (std::string name)

const rose_graph_integer_node_hash_mapget_node_index_to_node_map () const

rose_graph_integer_node_hash_mapget_node_index_to_node_map ()

const rose_graph_integer_edge_hash_mapget_edge_index_to_edge_map () const

rose_graph_integer_edge_hash_mapget_edge_index_to_edge_map ()

const rose_graph_integerpair_edge_hash_multimapget_node_index_pair_to_edge_multimap () const

rose_graph_integerpair_edge_hash_multimapget_node_index_pair_to_edge_multimap ()

const rose_graph_string_integer_hash_multimapget_string_to_node_index_multimap () const

rose_graph_string_integer_hash_multimapget_string_to_node_index_multimap ()

const rose_graph_string_integer_hash_multimapget_string_to_edge_index_multimap () const

rose_graph_string_integer_hash_multimapget_string_to_edge_index_multimap ()

const rose_graph_integer_edge_hash_multimapget_node_index_to_edge_multimap () const

rose_graph_integer_edge_hash_multimapget_node_index_to_edge_multimap ()

int get_index () const

void set_index (int index)

const SgBoostEdgeList & get_boost_edges () const

SgBoostEdgeList & get_boost_edges ()

const SgBoostEdgeWeightList & get_boost_edge_weights () const

SgBoostEdgeWeightList & get_boost_edge_weights ()

AstAttributeMechanismget_attributeMechanism () const override
 FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error. More...

void set_attributeMechanism (AstAttributeMechanism *attributeMechanism) override
 FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism. More...

const std::map< int, std::string > & get_properties () const

std::map< int, std::string > & get_properties ()

 SgGraph (std::string name="")

- Public Member Functions inherited from SgSupport
void * operator new (size_t size)
 returns pointer to newly allocated IR node

void operator delete (void *pointer, size_t size)
 deallocated memory for IR node (returns memory to memory pool for reuse)

void operator delete (void *pointer)

void executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

 SgSupport (const SgSupportStorageClass &source)
 IR node constructor to support AST File I/O.

SgSupportaddRegExpAttribute (std::string s, AstRegExAttribute *a)
 Support for AST matching using regular expression. More...

virtual ~SgSupport ()
 This is the destructor. More...

 SgSupport ()
 This is the constructor. More...

- Public Member Functions inherited from SgNode
void * operator new (size_t size)
 returns pointer to newly allocated IR node

void operator delete (void *pointer, size_t size)
 deallocated memory for IR node (returns memory to memory pool for reuse)

void operator delete (void *pointer)

void executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

 SgNode (const SgNodeStorageClass &source)
 IR node constructor to support AST File I/O.

SgNodeaddRegExpAttribute (std::string s, AstRegExAttribute *a)
 Support for AST matching using regular expression. More...

void set_isModified (bool isModified)
 All nodes in the AST contain a isModified flag used to track changes to the AST. More...

void set_containsTransformation (bool containsTransformation)
 Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified. More...

bool get_isModified () const
 Acess function for isModified flag. More...

bool get_containsTransformation () const
 Acess function for containsTransformation flag. More...

void set_parent (SgNode *parent)
 All nodes in the AST contain a reference to a parent node. More...

SgNodeget_parent () const
 Access function for parent node. More...

SgNodeget_raw_parent () const
 Access function for direct access to uncomputed value of parent node.

bool isChild (SgNode *node) const
 Query function for if the input IR nodes is a child of the current IR node.

virtual std::string unparseToString (SgUnparse_Info *info) const
 This function unparses the AST node (excluding comments and unnecessary white space)

std::string unparseToString () const

std::string unparseToCompleteString ()
 This function unparses the AST node (including comments and white space) More...

int variant () const ROSE_DEPRECATED_FUNCTION
 Older version function returns enum value "NODE". More...

virtual void fixupCopy (SgNode *copy, SgCopyHelp &help) const

virtual Sg_File_Infoget_file_info (void) const
 File information containing filename, line number, column number, and if the SgNode is a part of a new transformation, etc.

virtual Sg_File_Infoget_startOfConstruct (void) const
 New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

virtual Sg_File_Infoget_endOfConstruct (void) const
 New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode cfgForBeginning ()
 Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode cfgForEnd ()
 Returns the CFG node for just after this AST node.

virtual unsigned int cfgIndexForEnd () const
 Determine the CFG index for the end of this construct.

virtual bool cfgIsIndexInteresting (unsigned int index) const
 Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int cfgFindChildIndex (SgNode *n)
 Find the index of n in this node's CFG children.

virtual unsigned int cfgFindNextChildIndex (SgNode *n)
 Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdgecfgOutEdges (unsigned int index=false)
 Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdgecfgInEdges (unsigned int index=false)
 Find the in edges of a CFG node – internal version.

int numberOfNodesInSubtree ()
 Computes the number of nodes in the defined subtree of the AST. More...

int depthOfSubtree ()
 Computes the depth of the current defined subtree of the AST. More...

template<class T >
T * initParentPointer (T *child, SgNode *parent)
 Generated for tree edge data member initializations. More...

SgNodeget_freepointer () const

void set_freepointer (SgNode *freepointer)

virtual ~SgNode ()
 This is the destructor. More...

 SgNode ()
 This is the constructor. More...

bool get_isVisited () const ROSE_DEPRECATED_FUNCTION
 DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals. More...

void set_isVisited (bool isVisited) ROSE_DEPRECATED_FUNCTION
 Access function for p_isVisited flag used previously by the AST traversals. More...

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type changeChildPointer (T &edge, T const &child)
 Set a child edge in a tree to point to a specific child. More...

template<class T >
std::enable_if< !std::is_pointer< T >::value, void >::type changeChildPointer (T &edge, T const &child)
 Set a child edge in a tree to point to a specific child. More...


Static Public Member Functions

static void deleteMemoryPool ()

static size_t numberOfNodes ()
 Returns the total number of IR nodes of this type.

static size_t memoryUsage ()
 Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

static void visitRepresentativeNode (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for type-based traversal.

static SgNodegetNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
 Find a node by its variant type, pool index, and item index.

static SgIncidenceDirectedGraphgetNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
 FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string getNodeIdString (SgIncidenceDirectedGraph *sgnode)
 compute the NodeId for a particular SgNode*.

static std::string getNodeIdStringInternal (SgIncidenceDirectedGraph *sgnode)

- Static Public Member Functions inherited from SgGraph
static void deleteMemoryPool ()

static size_t numberOfNodes ()
 Returns the total number of IR nodes of this type.

static size_t memoryUsage ()
 Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

static void visitRepresentativeNode (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for type-based traversal.

static SgNodegetNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
 Find a node by its variant type, pool index, and item index.

static SgGraphgetNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
 FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string getNodeIdString (SgGraph *sgnode)
 compute the NodeId for a particular SgNode*.

static std::string getNodeIdStringInternal (SgGraph *sgnode)

- Static Public Member Functions inherited from SgSupport
static void deleteMemoryPool ()

static size_t numberOfNodes ()
 Returns the total number of IR nodes of this type.

static size_t memoryUsage ()
 Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

static void visitRepresentativeNode (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for type-based traversal.

static SgNodegetNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
 Find a node by its variant type, pool index, and item index.

static SgSupportgetNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
 FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string getNodeIdString (SgSupport *sgnode)
 compute the NodeId for a particular SgNode*.

static std::string getNodeIdStringInternal (SgSupport *sgnode)

- Static Public Member Functions inherited from SgNode
static void deleteMemoryPool ()

static size_t numberOfNodes ()
 Returns the total number of IR nodes of this type.

static size_t memoryUsage ()
 Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
 FOR INTERNAL USE Support for visitor pattern.

static void visitRepresentativeNode (ROSE_VisitTraversal &visit)
 FOR INTERNAL USE Support for type-based traversal.

static SgNodegetNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
 Find a node by its variant type, pool index, and item index.

static SgNodegetNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
 FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string getNodeIdString (SgNode *sgnode)
 compute the NodeId for a particular SgNode*.

static std::string getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string > buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
 Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism. More...

static std::vector< VariantT > getClassHierarchySubTreeFunction (VariantT v)

static void getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > & get_globalMangledNameMap ()
 Access function for performance optimizing global mangled name map. More...

static void clearGlobalMangledNameMap ()
 Support to clear the performance optimizing global mangled name map.

static std::map< std::string, int > & get_shortMangledNameCache ()
 Access function for lower level optimizing of global mangled name map. More...

static std::map< SgNode *, std::string > & get_globalQualifiedNameMapForNames ()
 Access function for name qualification support (for names). More...

static void set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
 Access function for name qualification support (for names). More...

static std::map< SgNode *, std::string > & get_globalQualifiedNameMapForTypes ()
 Access function for name qualification support (for type). More...

static void set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
 Access function for name qualification support (for type). More...

static std::map< SgNode *, std::map< SgNode *, std::string > > & get_globalQualifiedNameMapForMapsOfTypes ()
 Access function for name qualification support (for maps of types). More...

static void set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode *, std::map< SgNode *, std::string > > &X)
 Access function for name qualification support (for maps of types). More...

static std::map< SgNode *, std::string > & get_globalQualifiedNameMapForTemplateHeaders ()
 Access function for name qualification support (for template headers in template declarations). More...

static void set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
 Access function for name qualification support (for template headers in template declarations). More...

static std::map< SgNode *, std::string > & get_globalTypeNameMap ()
 Access function for name qualification support (for names of types). More...

static void set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
 Access function for name qualification support (for names of types). More...

static SgFunctionTypeTableget_globalFunctionTypeTable ()
 Access function for symbol table specific to function types.

static void set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
 Access function for symbol table specific to function types.

static SgTypeTableget_globalTypeTable ()
 Access function for symbol table specific to non-function types.

static void set_globalTypeTable (SgTypeTable *globalTypeTable)
 Access function for symbol table specific to non-function types.

static VariantT variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type createAndParent (SgNode *parent)
 Allocate and return a new node after setting its parent. More...


Protected Attributes

rose_graph_integer_edge_hash_multimap p_node_index_to_edge_multimap_edgesOut

rose_graph_integer_edge_hash_multimap p_node_index_to_edge_multimap_edgesIn

- Protected Attributes inherited from SgGraph
std::string p_name

rose_graph_integer_node_hash_map p_node_index_to_node_map

rose_graph_integer_edge_hash_map p_edge_index_to_edge_map

rose_graph_integerpair_edge_hash_multimap p_node_index_pair_to_edge_multimap

rose_graph_string_integer_hash_multimap p_string_to_node_index_multimap

rose_graph_string_integer_hash_multimap p_string_to_edge_index_multimap

rose_graph_integer_edge_hash_multimap p_node_index_to_edge_multimap

int p_index

SgBoostEdgeList p_boost_edges

SgBoostEdgeWeightList p_boost_edge_weights

AstAttributeMechanismp_attributeMechanism

std::map< int, std::string > p_properties

- Protected Attributes inherited from SgNode
SgNodep_parent
 This is the pointer to the parent IR node in the AST. More...

bool p_isModified
 Records if IR node has been modified (data members reset). More...

bool p_containsTransformation

SgNodep_freepointer
 This is the pointer to the chain of previously freed objects.


Friends

ROSE_DLL_API friend SgIncidenceDirectedGraphisSgIncidenceDirectedGraph (SgNode *s)
 Casts pointer from base class to derived class.

ROSE_DLL_API friend const SgIncidenceDirectedGraphisSgIncidenceDirectedGraph (const SgNode *s)
 Casts pointer from base class to derived class (for const pointers)


Additional Inherited Members

- Protected Member Functions inherited from SgNode
virtual void destructorHelper ()
 This gets called by all Rosebud-generated destructors. More...

virtual void debugSerializationBegin (const char *className)
 Called by generated serializers. More...

virtual void debugSerializationEnd (const char *className)
 Called by generated serializers. More...

- Static Protected Attributes inherited from SgGraph
static int p_index_counter

- Static Protected Attributes inherited from SgNode
static std::vector< std::tuple< unsigned char *, unsigned, VariantT > > all_pools

static SgFunctionTypeTablep_globalFunctionTypeTable
 Pointer to symbol table specific to function types.

static SgTypeTablep_globalTypeTable

static std::map< SgNode *, std::string > p_globalMangledNameMap
 Cache of mangled names to avoid regeneration of previously build mangled names or parts of mangled names. This is a performance optimization.

static std::map< std::string, int > p_shortMangledNameCache
 STL map used as a cache to shorten generated mangled names. This is mostly a space optimization ofr mangled names of templates.

static std::map< SgNode *, std::string > p_globalQualifiedNameMapForNames

static std::map< SgNode *, std::string > p_globalQualifiedNameMapForTypes

static std::map< SgNode *, std::string > p_globalQualifiedNameMapForTemplateHeaders

static std::map< SgNode *, std::string > p_globalTypeNameMap

static std::map< SgNode *, std::map< SgNode *, std::string > > p_globalQualifiedNameMapForMapsOfTypes


Member Function Documentation

virtual SgNode* SgIncidenceDirectedGraph::copy ( SgCopyHelp help) const
overridevirtual

This function clones the current IR node object recursively or not, depending on the argument.

This function performs a copy based on the specification of the input parameter. The input parameter is used to determin which data members are copied by reference and which are copied by value.

Parameters
help- If this argument is of type SgTreeCopy, then the IR node is cloned recursively. If its of type SgShallowCopy only the first level of the IR node is copied, everything else is left pointing to the the original IR node's object's data members.
Returns
a pointer to the new clone.

Reimplemented from SgGraph.

Reimplemented in SgIntKeyedBidirectionalGraph, SgStringKeyedBidirectionalGraph, and SgBidirectionalGraph.

virtual const char* SgIncidenceDirectedGraph::sage_class_name ( ) const
overridevirtual

returns a C style string (char*) representing the class name

Reimplemented from SgGraph.

Reimplemented in SgIntKeyedBidirectionalGraph, SgStringKeyedBidirectionalGraph, and SgBidirectionalGraph.

virtual bool SgIncidenceDirectedGraph::isInMemoryPool ( )
overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgGraph.

Reimplemented in SgIntKeyedBidirectionalGraph, SgStringKeyedBidirectionalGraph, and SgBidirectionalGraph.

virtual void SgIncidenceDirectedGraph::checkDataMemberPointersIfInMemoryPool ( )
overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgGraph.

Reimplemented in SgIntKeyedBidirectionalGraph, SgStringKeyedBidirectionalGraph, and SgBidirectionalGraph.

virtual std::vector<std::pair<SgNode*,std::string> > SgIncidenceDirectedGraph::returnDataMemberPointers ( ) const
overridevirtual

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning
This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.
Returns
STL vector of pairs of SgNode* and strings

Reimplemented from SgGraph.

Reimplemented in SgIntKeyedBidirectionalGraph, SgStringKeyedBidirectionalGraph, and SgBidirectionalGraph.

virtual void SgIncidenceDirectedGraph::processDataMemberReferenceToPointers ( ReferenceToPointerHandler *  )
overridevirtual

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning
This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgGraph.

Reimplemented in SgIntKeyedBidirectionalGraph, SgStringKeyedBidirectionalGraph, and SgBidirectionalGraph.

virtual long SgIncidenceDirectedGraph::getChildIndex ( SgNode childNode) const
overridevirtual

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning
The mapping on children to integer values could change from release to release of ROSE.
Returns
long

Reimplemented from SgGraph.

Reimplemented in SgIntKeyedBidirectionalGraph, SgStringKeyedBidirectionalGraph, and SgBidirectionalGraph.

SgIncidenceDirectedGraph* SgIncidenceDirectedGraph::addRegExpAttribute ( std::string  s,
AstRegExAttribute a
)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.


The documentation for this class was generated from the following file:
