Description

This class represents a source file for a project (which may contian many source files and or directories).

This IR node contains information specific to this file and references the project for more project (global) information. The dominately useful data in this IR node is the pointer to the global scope for this file (structurally global scope, but actually file scope and global scope by C++ scoping rules).

Definition at line 30617 of file Cxx_Grammar.h.

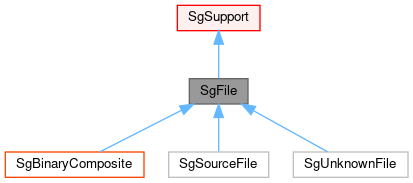

Inheritance diagram for SgFile:

[legend]

Collaboration diagram for SgFile:

[legend]

Public Types
enum	outputFormatOption_enum { e_unknown_output_format , e_fixed_form_output_format , e_free_form_output_format }
	Enum type used to specify output of Fortran as fixed for free format. More...

enum	languageOption_enum { e_error_language , e_default_language , e_C_language , e_Cxx_language , e_Binary_language , e_Fortran_language , e_Java_language , e_Jvm_language , e_Promela_language , e_PHP_language , e_Python_language , e_Csharp_language , e_Ada_language , e_Jovial_language , e_last_language }
	Enum type used to specify output language (option used for testing unparsers). More...

enum	standard_enum { e_default_standard , e_c89_standard , e_c90_standard , e_c99_standard , e_c11_standard , e_c17_standard , e_c23_standard , e_c2y_standard , e_upc_standard , e_cxx98_standard , e_cxx03_standard , e_cxx11_standard , e_cxx14_standard , e_cxx17_standard , e_cxx20_standard , e_cxx23_standard , e_cxx26_standard , e_upcxx_standard , e_f77_standard , e_f90_standard , e_f95_standard , e_f03_standard , e_f08_standard , e_f18_standard }

enum	{ static_variant = V_SgFile }
	static variant value More...

typedef SgSupport	base_node_type

Public Types inherited from SgSupport
enum	{ static_variant = V_SgSupport }
	static variant value More...

typedef SgNode	base_node_type

Public Types inherited from SgNode
enum	{ static_variant = V_SgNode }
	static variant value More...

enum	{ static_variant = V_SgNode }
	static variant value More...

Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const override

enum standard_enum	get_standard (void) const

void	set_standard (enum standard_enum e_std)

void	set_default_standard (void)

std::string	display_standard (enum standard_enum e_std)
	A string to report standard in debug messages (for example).

bool	is_gnu_standard (void) const

void	set_gnu_standard ()

void	unset_gnu_standard ()

bool	get_C89_only (void) const

void	set_C89_only (void)

bool	get_C89_gnu_only (void) const

void	set_C89_gnu_only (void)

bool	get_C90_only (void) const

void	set_C90_only (void)

bool	get_C90_gnu_only (void) const

void	set_C90_gnu_only (void)

bool	get_C99_only (void) const

void	set_C99_only (void)

bool	get_C99_gnu_only (void) const

void	set_C99_gnu_only (void)

bool	get_C11_only (void) const

void	set_C11_only (void)

bool	get_C11_gnu_only (void) const

void	set_C11_gnu_only (void)

bool	get_C17_only (void) const

void	set_C17_only (void)

bool	get_C17_gnu_only (void) const

void	set_C17_gnu_only (void)

bool	get_C23_only (void) const

void	set_C23_only (void)

bool	get_C23_gnu_only (void) const

void	set_C23_gnu_only (void)

bool	get_C2y_only (void) const

void	set_C2y_only (void)

bool	get_C2y_gnu_only (void) const

void	set_C2y_gnu_only (void)

bool	get_UPC_only (void) const

void	set_UPC_only (void)

bool	get_Cxx98_only (void) const

void	set_Cxx98_only (void)

bool	get_Cxx98_gnu_only (void) const

void	set_Cxx98_gnu_only (void)

bool	get_Cxx03_only (void) const

void	set_Cxx03_only (void)

bool	get_Cxx03_gnu_only (void) const

void	set_Cxx03_gnu_only (void)

bool	get_Cxx11_only (void) const

void	set_Cxx11_only (void)

bool	get_Cxx11_gnu_only (void) const

void	set_Cxx11_gnu_only (void)

bool	get_Cxx14_only (void) const

void	set_Cxx14_only (void)

bool	get_Cxx14_gnu_only (void) const

void	set_Cxx14_gnu_only (void)

bool	get_Cxx17_only (void) const

void	set_Cxx17_only (void)

bool	get_Cxx17_gnu_only (void) const

void	set_Cxx17_gnu_only (void)

bool	get_Cxx20_only (void) const

void	set_Cxx20_only (void)

bool	get_Cxx20_gnu_only (void) const

void	set_Cxx20_gnu_only (void)

bool	get_Cxx23_only (void) const

void	set_Cxx23_only (void)

bool	get_Cxx23_gnu_only (void) const

void	set_Cxx23_gnu_only (void)

bool	get_Cxx26_only (void) const

void	set_Cxx26_only (void)

bool	get_Cxx26_gnu_only (void) const

void	set_Cxx26_gnu_only (void)

bool	get_UPCxx_only (void) const

void	set_UPCxx_only (void)

bool	get_F77_only (void) const

void	set_F77_only (void)

bool	get_F90_only (void) const

void	set_F90_only (void)

bool	get_F95_only (void) const

void	set_F95_only (void)

bool	get_F2003_only (void) const

void	set_F2003_only (void)

bool	get_F2008_only (void) const

void	set_F2008_only (void)

bool	get_F2018_only (void) const

void	set_F2018_only (void)

	SgFile (int &argc, char *&argv, SgProject project=nullptr)
	The only useful constructor (argc and argv are the user's command line inputs).

	SgFile (std::vector< std::string > &argv, SgProject *project=nullptr)

	SgFile (const SgFile &)=delete

SgFile &	operator= (const SgFile &)=delete

void	doSetupForConstructor (const std::vector< std::string > &argv, SgProject *project)

void	unparse (UnparseFormatHelp unparseHelp=nullptr, UnparseDelegate unparseDelagate=nullptr)
	Generate the C++ file representing the AST.

void	resetSourcePositionToGeneratedCode (UnparseFormatHelp *unparseFormatHelp=NULL)

int	compileOutput (int fileNameIndex)
	Member function to compile the resulting output file from unparsing.

std::string	getFileName () const
	associated filename

virtual int	callFrontEnd ()

void	secondaryPassOverSourceFile ()
	Fixups to be run when the whole project has been created (this attaches preprocessing information).

virtual int	buildAST (std::vector< std::string > argv, std::vector< std::string > inputCommandLine)

void	processRoseCommandLineOptions (std::vector< std::string > &argv)
	Move this function from ROSE into the AST restructuring tool.

void	processBackendSpecificCommandLineOptions (const std::vector< std::string > &argv)

void	build_EDG_CommandLine (std::vector< std::string > &inputCommandLine, std::vector< std::string > &argv, int fileNameIndex)

void	build_CLANG_CommandLine (std::vector< std::string > &inputCommandLine, std::vector< std::string > &argv, int fileNameIndex)

std::string	getWorkingDirectory ()
	Move this function from ROSE into the AST restructuring tool.

std::string	getSourceDirectory ()

std::string	generateOutputFileName () const
	Generate an output filename from the source file name (xxx.C -> rose_xxx.C -> xxx.o -> xxx)

std::vector< std::string >	buildCompilerCommandLineOptions (std::vector< std::string > &argv, int fileNameIndex, const std::string &compilerName)

int	compileOutput (std::vector< std::string > &argv, int fileNameIndex)

void	display (const std::string &label) const

bool	isPrelinkPhase () const
	Test if project is compiled with -prelink as signal that we are prelinking and we have to process the generated code instead of the user's application (to see and instatiate all templates).

SgProject *	get_project ()
	Get the SgProject IR node if available (template instantiation information is stored there)

Sg_File_Info *	get_file_info () const override
	Access function calling get_startOfConstruct(), provided to support older interface.

void	set_file_info (Sg_File_Info *fileinfo)
	Access function calling set_startOfConstruct(), provided to support older interface.

void	initializeSourcePosition (const std::string &sourceFilename)

void	runFrontend (int &nextErrorCode)

virtual void	addNewAttribute (std::string s, AstAttribute *a) override
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const override
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a) override
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a) override
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s) override
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const override
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const override
	Returns the number of attributes on this IR node.

virtual std::string	class_name () const override
	returns a string representing the class name

virtual VariantT	variantT () const override
	returns new style SageIII enum values

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

virtual std::vector< SgNode * >	get_traversalSuccessorContainer () const override
	container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

virtual std::vector< std::string >	get_traversalSuccessorNamesContainer () const override
	container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

virtual size_t	get_numberOfTraversalSuccessors () const override
	return number of children in the traversal successor list

virtual SgNode *	get_traversalSuccessorByIndex (size_t idx) const override
	index-based access to traversal successors by index number

virtual size_t	get_childIndex (SgNode *child) const override
	index-based access to traversal successors by child node

virtual RTIReturnType	roseRTI () override
	return C++ Runtime-Time-Information

virtual const char *	sage_class_name () const override

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

virtual void	accept (ROSE_VisitorPattern &visitor) override
	support for the classic visitor pattern done in GoF

virtual bool	isInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual void	checkDataMemberPointersIfInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const override
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *) override
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

virtual long	getChildIndex (SgNode *childNode) const override
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

	SgFile (const SgFileStorageClass &source)
	IR node constructor to support AST File I/O.

SgFile *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

Sg_File_Info *	get_startOfConstruct () const override
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

void	set_startOfConstruct (Sg_File_Info *startOfConstruct)

SgStringList	get_originalCommandLineArgumentList () const
	Returns a list of strings representing the original command-line.

void	set_originalCommandLineArgumentList (SgStringList originalCommandLineArgumentList)
	Sets the list of strings representing the original command-line.

int	get_verbose () const

void	set_verbose (int verbose)

bool	get_output_warnings () const

void	set_output_warnings (bool output_warnings)

bool	get_C_only () const

void	set_C_only (bool C_only)

bool	get_Cxx_only () const

void	set_Cxx_only (bool Cxx_only)

bool	get_Fortran_only () const

void	set_Fortran_only (bool Fortran_only)

bool	get_CoArrayFortran_only () const

void	set_CoArrayFortran_only (bool CoArrayFortran_only)

int	get_upc_threads () const

void	set_upc_threads (int upc_threads)

bool	get_Java_only () const

void	set_Java_only (bool Java_only)

bool	get_Jvm_only () const

void	set_Jvm_only (bool Jvm_only)

bool	get_Jovial_only () const

void	set_Jovial_only (bool Jovial_only)

bool	get_PHP_only () const

void	set_PHP_only (bool PHP_only)

bool	get_Python_only () const

void	set_Python_only (bool Python_only)

bool	get_Cuda_only () const

void	set_Cuda_only (bool Cuda_only)

bool	get_OpenCL_only () const

void	set_OpenCL_only (bool OpenCL_only)

bool	get_Csharp_only () const

void	set_Csharp_only (bool Csharp_only)

bool	get_Ada_only () const

void	set_Ada_only (bool Ada_only)

bool	get_requires_C_preprocessor () const

void	set_requires_C_preprocessor (bool requires_C_preprocessor)

bool	get_binary_only () const

void	set_binary_only (bool binary_only)

SgFile::outputFormatOption_enum	get_inputFormat () const

void	set_inputFormat (SgFile::outputFormatOption_enum inputFormat)

SgFile::outputFormatOption_enum	get_outputFormat () const

void	set_outputFormat (SgFile::outputFormatOption_enum outputFormat)

SgFile::outputFormatOption_enum	get_backendCompileFormat () const

void	set_backendCompileFormat (SgFile::outputFormatOption_enum backendCompileFormat)

bool	get_fortran_implicit_none () const

void	set_fortran_implicit_none (bool fortran_implicit_none)

bool	get_openmp () const

void	set_openmp (bool openmp)

bool	get_openmp_parse_only () const

void	set_openmp_parse_only (bool openmp_parse_only)

bool	get_openmp_ast_only () const

void	set_openmp_ast_only (bool openmp_ast_only)

bool	get_openmp_lowering () const

void	set_openmp_lowering (bool openmp_lowering)

bool	get_openacc () const

void	set_openacc (bool openacc)

bool	get_openacc_parse_only () const

void	set_openacc_parse_only (bool openacc_parse_only)

bool	get_openacc_ast_only () const

void	set_openacc_ast_only (bool openacc_ast_only)

bool	get_cray_pointer_support () const

void	set_cray_pointer_support (bool cray_pointer_support)

bool	get_failsafe () const

void	set_failsafe (bool failsafe)

bool	get_output_parser_actions () const

void	set_output_parser_actions (bool output_parser_actions)

bool	get_exit_after_parser () const

void	set_exit_after_parser (bool exit_after_parser)

bool	get_skip_syntax_check () const

void	set_skip_syntax_check (bool skip_syntax_check)

bool	get_skip_parser () const

void	set_skip_parser (bool skip_parser)

bool	get_relax_syntax_check () const

void	set_relax_syntax_check (bool relax_syntax_check)

bool	get_skip_translation_from_edg_ast_to_rose_ast () const

void	set_skip_translation_from_edg_ast_to_rose_ast (bool skip_translation_from_edg_ast_to_rose_ast)

bool	get_skip_transformation () const

void	set_skip_transformation (bool skip_transformation)

bool	get_skip_unparse () const

void	set_skip_unparse (bool skip_unparse)

bool	get_skipfinalCompileStep () const

void	set_skipfinalCompileStep (bool skipfinalCompileStep)

bool	get_unparse_includes () const

void	set_unparse_includes (bool unparse_includes)

bool	get_unparse_line_directives () const

void	set_unparse_line_directives (bool unparse_line_directives)

bool	get_unparse_function_calls_using_operator_syntax () const

void	set_unparse_function_calls_using_operator_syntax (bool unparse_function_calls_using_operator_syntax)

bool	get_unparse_function_calls_using_operator_names () const

void	set_unparse_function_calls_using_operator_names (bool unparse_function_calls_using_operator_names)

bool	get_unparse_instruction_addresses () const

void	set_unparse_instruction_addresses (bool unparse_instruction_addresses)

bool	get_unparse_raw_memory_contents () const

void	set_unparse_raw_memory_contents (bool unparse_raw_memory_contents)

bool	get_unparse_binary_file_format () const

void	set_unparse_binary_file_format (bool unparse_binary_file_format)

SgFile::languageOption_enum	get_outputLanguage () const

void	set_outputLanguage (SgFile::languageOption_enum outputLanguage)

SgFile::languageOption_enum	get_inputLanguage () const

void	set_inputLanguage (SgFile::languageOption_enum inputLanguage)

std::string	get_sourceFileNameWithPath () const

void	set_sourceFileNameWithPath (std::string sourceFileNameWithPath)

std::string	get_sourceFileNameWithoutPath () const

void	set_sourceFileNameWithoutPath (std::string sourceFileNameWithoutPath)

std::string	get_unparse_output_filename () const

void	set_unparse_output_filename (std::string unparse_output_filename)

std::string	get_objectFileNameWithPath () const

void	set_objectFileNameWithPath (std::string objectFileNameWithPath)

std::string	get_objectFileNameWithoutPath () const

void	set_objectFileNameWithoutPath (std::string objectFileNameWithoutPath)

bool	get_useBackendOnly () const

void	set_useBackendOnly (bool useBackendOnly)

bool	get_compileOnly () const

void	set_compileOnly (bool compileOnly)

std::string	get_savedFrontendCommandLine () const

void	set_savedFrontendCommandLine (std::string savedFrontendCommandLine)

bool	get_no_implicit_templates () const

void	set_no_implicit_templates (bool no_implicit_templates)

bool	get_no_implicit_inline_templates () const

void	set_no_implicit_inline_templates (bool no_implicit_inline_templates)

bool	get_skip_commentsAndDirectives () const

void	set_skip_commentsAndDirectives (bool skip_commentsAndDirectives)

bool	get_collectAllCommentsAndDirectives () const

void	set_collectAllCommentsAndDirectives (bool collectAllCommentsAndDirectives)

bool	get_translateCommentsAndDirectivesIntoAST () const

void	set_translateCommentsAndDirectivesIntoAST (bool translateCommentsAndDirectivesIntoAST)

bool	get_unparseHeaderFiles () const

void	set_unparseHeaderFiles (bool unparseHeaderFiles)

ROSEAttributesListContainerPtr	get_preprocessorDirectivesAndCommentsList () const

void	set_preprocessorDirectivesAndCommentsList (ROSEAttributesListContainerPtr preprocessorDirectivesAndCommentsList)

AstAttributeMechanism *	get_attributeMechanism () const override
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

void	set_attributeMechanism (AstAttributeMechanism *attributeMechanism) override
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

bool	get_KCC_frontend () const

void	set_KCC_frontend (bool KCC_frontend)

bool	get_new_frontend () const

void	set_new_frontend (bool new_frontend)

bool	get_disable_edg_backend () const

void	set_disable_edg_backend (bool disable_edg_backend)

bool	get_disable_sage_backend () const

void	set_disable_sage_backend (bool disable_sage_backend)

int	get_testingLevel () const

void	set_testingLevel (int testingLevel)

bool	get_preinit_il () const

void	set_preinit_il (bool preinit_il)

bool	get_enable_cp_backend () const

void	set_enable_cp_backend (bool enable_cp_backend)

bool	get_markGeneratedFiles () const

void	set_markGeneratedFiles (bool markGeneratedFiles)

bool	get_negative_test () const

void	set_negative_test (bool negative_test)

bool	get_strict_language_handling () const

void	set_strict_language_handling (bool strict_language_handling)

bool	get_wave () const

void	set_wave (bool wave)

int	get_embedColorCodesInGeneratedCode () const

void	set_embedColorCodesInGeneratedCode (int embedColorCodesInGeneratedCode)

int	get_generateSourcePositionCodes () const

void	set_generateSourcePositionCodes (int generateSourcePositionCodes)

bool	get_sourceFileUsesCppFileExtension () const

void	set_sourceFileUsesCppFileExtension (bool sourceFileUsesCppFileExtension)

bool	get_sourceFileUsesFortranFileExtension () const

void	set_sourceFileUsesFortranFileExtension (bool sourceFileUsesFortranFileExtension)

bool	get_sourceFileUsesFortran77FileExtension () const

void	set_sourceFileUsesFortran77FileExtension (bool sourceFileUsesFortran77FileExtension)

bool	get_sourceFileUsesFortran90FileExtension () const

void	set_sourceFileUsesFortran90FileExtension (bool sourceFileUsesFortran90FileExtension)

bool	get_sourceFileUsesFortran95FileExtension () const

void	set_sourceFileUsesFortran95FileExtension (bool sourceFileUsesFortran95FileExtension)

bool	get_sourceFileUsesFortran2003FileExtension () const

void	set_sourceFileUsesFortran2003FileExtension (bool sourceFileUsesFortran2003FileExtension)

bool	get_sourceFileUsesFortran2008FileExtension () const

void	set_sourceFileUsesFortran2008FileExtension (bool sourceFileUsesFortran2008FileExtension)

bool	get_sourceFileUsesCoArrayFortranFileExtension () const

void	set_sourceFileUsesCoArrayFortranFileExtension (bool sourceFileUsesCoArrayFortranFileExtension)

bool	get_sourceFileUsesPHPFileExtension () const

void	set_sourceFileUsesPHPFileExtension (bool sourceFileUsesPHPFileExtension)

bool	get_sourceFileUsesPythonFileExtension () const

void	set_sourceFileUsesPythonFileExtension (bool sourceFileUsesPythonFileExtension)

bool	get_sourceFileUsesJavaFileExtension () const

void	set_sourceFileUsesJavaFileExtension (bool sourceFileUsesJavaFileExtension)

bool	get_sourceFileUsesJvmFileExtension () const

void	set_sourceFileUsesJvmFileExtension (bool sourceFileUsesJvmFileExtension)

bool	get_sourceFileUsesBinaryFileExtension () const

void	set_sourceFileUsesBinaryFileExtension (bool sourceFileUsesBinaryFileExtension)

bool	get_sourceFileTypeIsUnknown () const

void	set_sourceFileTypeIsUnknown (bool sourceFileTypeIsUnknown)

bool	get_sourceFileUsesCsharpFileExtension () const

void	set_sourceFileUsesCsharpFileExtension (bool sourceFileUsesCsharpFileExtension)

bool	get_sourceFileUsesAdaFileExtension () const

void	set_sourceFileUsesAdaFileExtension (bool sourceFileUsesAdaFileExtension)

bool	get_sourceFileUsesJovialFileExtension () const

void	set_sourceFileUsesJovialFileExtension (bool sourceFileUsesJovialFileExtension)

int	get_detect_dangling_pointers () const

void	set_detect_dangling_pointers (int detect_dangling_pointers)

bool	get_experimental_flang_frontend () const

void	set_experimental_flang_frontend (bool experimental_flang_frontend)

bool	get_read_executable_file_format_only () const

void	set_read_executable_file_format_only (bool read_executable_file_format_only)

bool	get_visualize_executable_file_format_skip_symbols () const

void	set_visualize_executable_file_format_skip_symbols (bool visualize_executable_file_format_skip_symbols)

bool	get_visualize_dwarf_only () const

void	set_visualize_dwarf_only (bool visualize_dwarf_only)

bool	get_read_instructions_only () const

void	set_read_instructions_only (bool read_instructions_only)

const SgStringList &	get_libraryArchiveObjectFileNameList () const

SgStringList &	get_libraryArchiveObjectFileNameList ()

bool	get_isLibraryArchive () const

void	set_isLibraryArchive (bool isLibraryArchive)

bool	get_isObjectFile () const

void	set_isObjectFile (bool isObjectFile)

bool	get_unparse_tokens () const

void	set_unparse_tokens (bool unparse_tokens)

int	get_unparse_tokens_testing () const

void	set_unparse_tokens_testing (int unparse_tokens_testing)

bool	get_unparse_using_leading_and_trailing_token_mappings () const

void	set_unparse_using_leading_and_trailing_token_mappings (bool unparse_using_leading_and_trailing_token_mappings)

bool	get_unparse_template_ast () const

void	set_unparse_template_ast (bool unparse_template_ast)

bool	get_skipAstConsistancyTests () const

void	set_skipAstConsistancyTests (bool skipAstConsistancyTests)

bool	get_multifile_support () const

void	set_multifile_support (bool multifile_support)

bool	get_optimization () const

void	set_optimization (bool optimization)

bool	get_use_token_stream_to_improve_source_position_info () const

void	set_use_token_stream_to_improve_source_position_info (bool use_token_stream_to_improve_source_position_info)

bool	get_suppress_variable_declaration_normalization () const

void	set_suppress_variable_declaration_normalization (bool suppress_variable_declaration_normalization)

bool	get_edg_il_to_graphviz () const

void	set_edg_il_to_graphviz (bool edg_il_to_graphviz)

bool	get_clang_il_to_graphviz () const

void	set_clang_il_to_graphviz (bool clang_il_to_graphviz)

bool	get_no_optimize_flag_for_frontend () const

void	set_no_optimize_flag_for_frontend (bool no_optimize_flag_for_frontend)

bool	get_unparse_edg_normalized_method_ROSE_1392 () const

void	set_unparse_edg_normalized_method_ROSE_1392 (bool unparse_edg_normalized_method_ROSE_1392)

int	get_frontendErrorCode () const

void	set_frontendErrorCode (int frontendErrorCode)

int	get_javacErrorCode () const

void	set_javacErrorCode (int javacErrorCode)

int	get_ecjErrorCode () const

void	set_ecjErrorCode (int ecjErrorCode)

int	get_midendErrorCode () const

void	set_midendErrorCode (int midendErrorCode)

int	get_unparserErrorCode () const

void	set_unparserErrorCode (int unparserErrorCode)

int	get_backendCompilerErrorCode () const

void	set_backendCompilerErrorCode (int backendCompilerErrorCode)

bool	get_unparsedFileFailedCompilation () const

void	set_unparsedFileFailedCompilation (bool unparsedFileFailedCompilation)

virtual	~SgFile ()
	This is the destructor.

	SgFile ()
	This is the constructor.

Public Member Functions inherited from SgSupport
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgSupport (const SgSupportStorageClass &source)
	IR node constructor to support AST File I/O.

SgSupport *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

virtual	~SgSupport ()
	This is the destructor.

	SgSupport ()
	This is the constructor.

Public Member Functions inherited from SgNode
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

int	variant () const
	Older version function returns enum value "NODE".

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

virtual	~SgNode ()
	This is the destructor.

	SgNode ()
	This is the constructor.

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

int	variant () const

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

Static Public Member Functions
static void	stripRoseCommandLineOptions (std::vector< std::string > &argv)
	function that removes all rose related options from a command line

static void	stripEdgCommandLineOptions (std::vector< std::string > &argv)
	function that removes all EDG related options from a command line

static void	stripFortranCommandLineOptions (std::vector< std::string > &argv)
	function that removes all OFP related options from a command line

static void	stripTranslationCommandLineOptions (std::vector< std::string > &argv)
	function that removes options that should be used only in frontend from a command line

static void	usage (int status)

static std::string	generate_C_preprocessor_intermediate_filename (std::string filename)
	Support for C preprocessed files (Fortran only).

static std::string	get_outputLanguageOptionName (languageOption_enum)

static void	set_skip_unparse_asm_commands (bool)

static bool	get_skip_unparse_asm_commands ()

static void	set_header_file_unparsing_optimization (bool)

static bool	get_header_file_unparsing_optimization ()

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgFile *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgFile *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgFile *sgnode)

Static Public Member Functions inherited from SgSupport
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgSupport *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgSupport *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgSupport *sgnode)

Static Public Member Functions inherited from SgNode
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

Protected Attributes
Sg_File_Info *	p_startOfConstruct

SgStringList	p_originalCommandLineArgumentList
	Copy of original argc and argv command line passed to ROSE translator (converted to STL list of strings).

int	p_verbose

bool	p_output_warnings

bool	p_C_only

bool	p_Cxx_only

bool	p_Fortran_only

bool	p_CoArrayFortran_only

int	p_upc_threads

bool	p_Java_only

bool	p_Jvm_only

bool	p_Jovial_only

bool	p_PHP_only

bool	p_Python_only

bool	p_Cuda_only

bool	p_OpenCL_only

bool	p_Csharp_only

bool	p_Ada_only

bool	p_requires_C_preprocessor

bool	p_binary_only

SgFile::outputFormatOption_enum	p_inputFormat

SgFile::outputFormatOption_enum	p_outputFormat

SgFile::outputFormatOption_enum	p_backendCompileFormat

bool	p_fortran_implicit_none

bool	p_openmp

bool	p_openmp_parse_only

bool	p_openmp_ast_only

bool	p_openmp_lowering

bool	p_openacc

bool	p_openacc_parse_only

bool	p_openacc_ast_only

bool	p_cray_pointer_support

bool	p_failsafe

bool	p_output_parser_actions

bool	p_exit_after_parser

bool	p_skip_syntax_check

bool	p_skip_parser

bool	p_relax_syntax_check

bool	p_skip_translation_from_edg_ast_to_rose_ast

bool	p_skip_transformation

bool	p_skip_unparse

bool	p_skipfinalCompileStep

bool	p_unparse_includes

bool	p_unparse_line_directives

bool	p_unparse_function_calls_using_operator_syntax

bool	p_unparse_function_calls_using_operator_names

bool	p_unparse_instruction_addresses

bool	p_unparse_raw_memory_contents

bool	p_unparse_binary_file_format

SgFile::languageOption_enum	p_outputLanguage

SgFile::languageOption_enum	p_inputLanguage

std::string	p_sourceFileNameWithPath

std::string	p_sourceFileNameWithoutPath

std::string	p_unparse_output_filename

std::string	p_objectFileNameWithPath

std::string	p_objectFileNameWithoutPath

bool	p_useBackendOnly

bool	p_compileOnly

std::string	p_savedFrontendCommandLine

bool	p_no_implicit_templates
	This is a reference to the GNU g++ command line option (same name).

bool	p_no_implicit_inline_templates
	This is a reference to the GNU g++ command line option (same name).

bool	p_skip_commentsAndDirectives

bool	p_collectAllCommentsAndDirectives

bool	p_translateCommentsAndDirectivesIntoAST

bool	p_unparseHeaderFiles

ROSEAttributesListContainerPtr	p_preprocessorDirectivesAndCommentsList
	This is the container of comments and preprocessor control statements that was extracted from the file and which has been woven back into the AST (using heuristics).

AstAttributeMechanism *	p_attributeMechanism

bool	p_KCC_frontend

bool	p_new_frontend

bool	p_disable_edg_backend

bool	p_disable_sage_backend

int	p_testingLevel

bool	p_preinit_il

bool	p_enable_cp_backend

bool	p_markGeneratedFiles

bool	p_negative_test

bool	p_strict_language_handling

bool	p_wave

int	p_embedColorCodesInGeneratedCode

int	p_generateSourcePositionCodes

bool	p_sourceFileUsesCppFileExtension

bool	p_sourceFileUsesFortranFileExtension

bool	p_sourceFileUsesFortran77FileExtension

bool	p_sourceFileUsesFortran90FileExtension

bool	p_sourceFileUsesFortran95FileExtension

bool	p_sourceFileUsesFortran2003FileExtension

bool	p_sourceFileUsesFortran2008FileExtension

bool	p_sourceFileUsesCoArrayFortranFileExtension

bool	p_sourceFileUsesPHPFileExtension

bool	p_sourceFileUsesPythonFileExtension

bool	p_sourceFileUsesJavaFileExtension

bool	p_sourceFileUsesJvmFileExtension

bool	p_sourceFileUsesBinaryFileExtension

bool	p_sourceFileTypeIsUnknown

bool	p_sourceFileUsesCsharpFileExtension

bool	p_sourceFileUsesAdaFileExtension

bool	p_sourceFileUsesJovialFileExtension

int	p_detect_dangling_pointers

bool	p_experimental_flang_frontend

bool	p_read_executable_file_format_only

bool	p_visualize_executable_file_format_skip_symbols

bool	p_visualize_dwarf_only

bool	p_read_instructions_only

SgStringList	p_libraryArchiveObjectFileNameList

bool	p_isLibraryArchive

bool	p_isObjectFile

bool	p_unparse_tokens

int	p_unparse_tokens_testing

bool	p_unparse_using_leading_and_trailing_token_mappings

bool	p_unparse_template_ast

bool	p_skipAstConsistancyTests

bool	p_multifile_support

bool	p_optimization

bool	p_use_token_stream_to_improve_source_position_info

bool	p_suppress_variable_declaration_normalization

bool	p_edg_il_to_graphviz

bool	p_clang_il_to_graphviz

bool	p_no_optimize_flag_for_frontend

bool	p_unparse_edg_normalized_method_ROSE_1392

SgFile::standard_enum	p_standard

bool	p_gnu_standard

int	p_frontendErrorCode

int	p_javacErrorCode

int	p_ecjErrorCode

int	p_midendErrorCode

int	p_unparserErrorCode

int	p_backendCompilerErrorCode

bool	p_unparsedFileFailedCompilation

Protected Attributes inherited from SgNode
SgNode *	p_parent
	This is the pointer to the parent IR node in the AST.

bool	p_isModified
	Records if IR node has been modified (data members reset).

bool	p_containsTransformation

SgNode *	p_freepointer
	This is the pointer to the chain of previously freed objects.

Static Protected Attributes
static bool	p_skip_unparse_asm_commands

static bool	p_header_file_unparsing_optimization

Static Protected Attributes inherited from SgNode
static std::vector< std::tuple< unsigned char *, unsigned, VariantT > >	all_pools

static SgFunctionTypeTable *	p_globalFunctionTypeTable
	Pointer to symbol table specific to function types.

static SgTypeTable *	p_globalTypeTable

static std::map< SgNode *, std::string >	p_globalMangledNameMap
	Cache of mangled names to avoid regeneration of previously build mangled names or parts of mangled names. This is a performance optimization.

static std::map< std::string, uint64_t >	p_shortMangledNameCache
	STL map used as a cache to shorten generated mangled names. This is mostly a space optimization ofr mangled names of templates.

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForNames

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTypes

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTemplateHeaders

static std::map< SgNode *, std::string >	p_globalTypeNameMap

static std::map< SgNode , std::map< SgNode , std::string > >	p_globalQualifiedNameMapForMapsOfTypes

Additional Inherited Members
Protected Member Functions inherited from SgNode
virtual void	post_construction_initialization ()
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	post_construction_initialization ()
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

Member Typedef Documentation

◆ base_node_type

typedef SgSupport SgFile::base_node_type

Definition at line 31426 of file Cxx_Grammar.h.

Member Enumeration Documentation

◆ outputFormatOption_enum

enum SgFile::outputFormatOption_enum

Enum type used to specify output of Fortran as fixed for free format.

Enumerator
e_unknown_output_format	default value (uses filename extension to determine the output format, f77: fixed, F90 and later: free)
e_fixed_form_output_format	value used to specify output of Fortran as fixed format
e_free_form_output_format	value used to specify output of Fortran as free format

Definition at line 30645 of file Cxx_Grammar.h.

◆ languageOption_enum

enum SgFile::languageOption_enum

Enum type used to specify output language (option used for testing unparsers).

Enumerator
e_error_language	error value (uses filename extension to determine the output format, f77: fixed, F90 and later: free)
e_default_language	default value (uses filename extension to determine the output format, f77: fixed, F90 and later: free)
e_C_language	value used to specify output of C (for testing C unparser)
e_Cxx_language	value used to specify output of C++ (for testing C++ unparser)
e_Binary_language	value used to specify output of Binary ISA
e_Fortran_language	value used to specify output of Fortran (for testing the Fortran unparser)
e_Java_language	value used to specify output of Java (for testing Java unparser)
e_Jvm_language	value used to specify Java binary JVM language
e_Promela_language	value used to specify output of Promela for uses with SPIN (unsupported option)
e_PHP_language	value used to specify output of PHP
e_Python_language	value used to specify output of Python
e_Csharp_language	value used to specify output of Csharp
e_Ada_language	value used to specify output of Ada
e_Jovial_language	value used to specify output of Jovial
e_last_language	upper bound on the range of values supported for the outputLanguageOption_enum

Definition at line 30659 of file Cxx_Grammar.h.

◆ standard_enum

enum SgFile::standard_enum

Definition at line 30679 of file Cxx_Grammar.h.

◆ anonymous enum

anonymous enum

static variant value

Definition at line 31047 of file Cxx_Grammar.h.

Constructor & Destructor Documentation

◆ ~SgFile()

SgFile::~SgFile ( )

virtual

This is the destructor.

There is nothing to delete in this object.

◆ SgFile()

SgFile::SgFile ( )

This is the constructor.

This constructor builds the SgFile base class.

See also: Example:create an SgFile object

Member Function Documentation

◆ copy()

virtual SgNode * SgFile::copy ( SgCopyHelp & help ) const

overridevirtual

Reimplemented from SgSupport.

◆ get_file_info()

Sg_File_Info * SgFile::get_file_info ( ) const

overridevirtual

Access function calling get_startOfConstruct(), provided to support older interface.

Reimplemented from SgNode.

Referenced by SageBuilder::buildSourceFile().

◆ addNewAttribute()

virtual void SgFile::addNewAttribute	(	std::string	s,
		AstAttribute *	a
	)

overridevirtual

Add a new attribute represented by the named string.

Reimplemented from SgNode.

◆ getAttribute()

virtual AstAttribute * SgFile::getAttribute ( std::string s ) const

overridevirtual

Returns attribute of name 's'.

Reimplemented from SgNode.

◆ updateAttribute()

virtual void SgFile::updateAttribute	(	std::string	s,
		AstAttribute *	a
	)

overridevirtual

Replace existing attribute of name 's' with new AstAttribute.

Reimplemented from SgNode.

◆ setAttribute()

virtual void SgFile::setAttribute	(	std::string	s,
		AstAttribute *	a
	)

overridevirtual

This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

Reimplemented from SgNode.

◆ removeAttribute()

virtual void SgFile::removeAttribute ( std::string s )

overridevirtual

Remove attribute of name 's' if present.

Reimplemented from SgNode.

◆ attributeExists()

virtual bool SgFile::attributeExists ( std::string s ) const

overridevirtual

Tests if attribute of name 's' is present.

Reimplemented from SgNode.

◆ numberOfAttributes()

virtual int SgFile::numberOfAttributes ( ) const

overridevirtual

Returns the number of attributes on this IR node.

Reimplemented from SgNode.

◆ class_name()

virtual std::string SgFile::class_name ( ) const

overridevirtual

returns a string representing the class name

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

Referenced by SageBuilder::buildFile(), and SageBuilder::buildSourceFile().

◆ variantT()

virtual VariantT SgFile::variantT ( ) const

overridevirtual

returns new style SageIII enum values

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ operator delete()

void SgFile::operator delete ( void * pointer )

inline

Definition at line 31102 of file Cxx_Grammar.h.

◆ get_traversalSuccessorContainer()

virtual std::vector< SgNode * > SgFile::get_traversalSuccessorContainer ( ) const

overridevirtual

container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ get_traversalSuccessorNamesContainer()

virtual std::vector< std::string > SgFile::get_traversalSuccessorNamesContainer ( ) const

overridevirtual

container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ get_numberOfTraversalSuccessors()

virtual size_t SgFile::get_numberOfTraversalSuccessors ( ) const

overridevirtual

return number of children in the traversal successor list

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ get_traversalSuccessorByIndex()

virtual SgNode * SgFile::get_traversalSuccessorByIndex ( size_t idx ) const

overridevirtual

index-based access to traversal successors by index number

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ get_childIndex()

virtual size_t SgFile::get_childIndex ( SgNode * child ) const

overridevirtual

index-based access to traversal successors by child node

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ roseRTI()

virtual RTIReturnType SgFile::roseRTI ( )

overridevirtual

return C++ Runtime-Time-Information

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ sage_class_name()

virtual const char * SgFile::sage_class_name ( ) const

overridevirtual

returns a C style string (char*) representing the class name

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ accept()

virtual void SgFile::accept ( ROSE_VisitorPattern & visitor )

overridevirtual

support for the classic visitor pattern done in GoF

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ isInMemoryPool()

virtual bool SgFile::isInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ checkDataMemberPointersIfInMemoryPool()

virtual void SgFile::checkDataMemberPointersIfInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ returnDataMemberPointers()

virtual std::vector< std::pair< SgNode *, std::string > > SgFile::returnDataMemberPointers ( ) const

overridevirtual

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns: STL vector of pairs of SgNode* and strings

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ processDataMemberReferenceToPointers()

virtual void SgFile::processDataMemberReferenceToPointers ( ReferenceToPointerHandler * )

overridevirtual

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ getChildIndex()

virtual long SgFile::getChildIndex ( SgNode * childNode ) const

overridevirtual

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning: The mapping on children to integer values could change from release to release of ROSE.

Returns: long

Reimplemented from SgSupport.

Reimplemented in SgSourceFile, SgUnknownFile, SgBinaryComposite, and SgJvmComposite.

◆ addRegExpAttribute()

SgFile * SgFile::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

◆ get_startOfConstruct()

Sg_File_Info * SgFile::get_startOfConstruct ( void ) const

overridevirtual

New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

Reimplemented from SgNode.

Referenced by SageBuilder::buildFile(), and SageBuilder::fixupSourcePositionFileSpecification().

◆ get_attributeMechanism()

AstAttributeMechanism * SgFile::get_attributeMechanism ( ) const

overridevirtual

FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

This is an access function used for getting the interally held pointer to a valid AstAttributeMechanism. It provides access to lower level functionality of the AstAttributeMechanism, put is mostly of use to internal tools.

Reimplemented from SgNode.

◆ set_attributeMechanism()

void SgFile::set_attributeMechanism ( AstAttributeMechanism * a )

overridevirtual

FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

This is an access function used for setting the interally held pointer to a valid AstAttributeMechanism.

Reimplemented from SgNode.

Member Data Documentation

◆ p_startOfConstruct

Sg_File_Info* SgFile::p_startOfConstruct

protected

Definition at line 31949 of file Cxx_Grammar.h.

◆ p_originalCommandLineArgumentList

SgFile::p_originalCommandLineArgumentList

protected

Copy of original argc and argv command line passed to ROSE translator (converted to STL list of strings).

Definition at line 31953 of file Cxx_Grammar.h.

◆ p_verbose

int SgFile::p_verbose

protected

Definition at line 31957 of file Cxx_Grammar.h.

◆ p_output_warnings

bool SgFile::p_output_warnings

protected

Definition at line 31961 of file Cxx_Grammar.h.

◆ p_C_only

bool SgFile::p_C_only

protected

Definition at line 31965 of file Cxx_Grammar.h.

◆ p_Cxx_only

bool SgFile::p_Cxx_only

protected

Definition at line 31969 of file Cxx_Grammar.h.

◆ p_Fortran_only

bool SgFile::p_Fortran_only

protected

Definition at line 31973 of file Cxx_Grammar.h.

◆ p_CoArrayFortran_only

bool SgFile::p_CoArrayFortran_only

protected

Definition at line 31977 of file Cxx_Grammar.h.

◆ p_upc_threads

int SgFile::p_upc_threads

protected

Definition at line 31981 of file Cxx_Grammar.h.

◆ p_Java_only

bool SgFile::p_Java_only

protected

Definition at line 31985 of file Cxx_Grammar.h.

◆ p_Jvm_only

bool SgFile::p_Jvm_only

protected

Definition at line 31989 of file Cxx_Grammar.h.

◆ p_Jovial_only

bool SgFile::p_Jovial_only

protected

Definition at line 31993 of file Cxx_Grammar.h.

◆ p_PHP_only

bool SgFile::p_PHP_only

protected

Definition at line 31997 of file Cxx_Grammar.h.

◆ p_Python_only

bool SgFile::p_Python_only

protected

Definition at line 32001 of file Cxx_Grammar.h.

◆ p_Cuda_only

bool SgFile::p_Cuda_only

protected

Definition at line 32005 of file Cxx_Grammar.h.

◆ p_OpenCL_only

bool SgFile::p_OpenCL_only

protected

Definition at line 32009 of file Cxx_Grammar.h.

◆ p_Csharp_only

bool SgFile::p_Csharp_only

protected

Definition at line 32013 of file Cxx_Grammar.h.

◆ p_Ada_only

bool SgFile::p_Ada_only

protected

Definition at line 32017 of file Cxx_Grammar.h.

◆ p_requires_C_preprocessor

bool SgFile::p_requires_C_preprocessor

protected

Definition at line 32021 of file Cxx_Grammar.h.

◆ p_binary_only

bool SgFile::p_binary_only

protected

Definition at line 32025 of file Cxx_Grammar.h.

◆ p_inputFormat

SgFile::outputFormatOption_enum SgFile::p_inputFormat

protected

Definition at line 32029 of file Cxx_Grammar.h.

◆ p_outputFormat

SgFile::outputFormatOption_enum SgFile::p_outputFormat

protected

Definition at line 32033 of file Cxx_Grammar.h.

◆ p_backendCompileFormat

SgFile::outputFormatOption_enum SgFile::p_backendCompileFormat

protected

Definition at line 32037 of file Cxx_Grammar.h.

◆ p_fortran_implicit_none

bool SgFile::p_fortran_implicit_none

protected

Definition at line 32041 of file Cxx_Grammar.h.

◆ p_openmp

bool SgFile::p_openmp

protected

Definition at line 32045 of file Cxx_Grammar.h.

◆ p_openmp_parse_only

bool SgFile::p_openmp_parse_only

protected

Definition at line 32049 of file Cxx_Grammar.h.

◆ p_openmp_ast_only

bool SgFile::p_openmp_ast_only

protected

Definition at line 32053 of file Cxx_Grammar.h.

◆ p_openmp_lowering

bool SgFile::p_openmp_lowering

protected

Definition at line 32057 of file Cxx_Grammar.h.

◆ p_openacc

bool SgFile::p_openacc

protected

Definition at line 32061 of file Cxx_Grammar.h.

◆ p_openacc_parse_only

bool SgFile::p_openacc_parse_only

protected

Definition at line 32065 of file Cxx_Grammar.h.

◆ p_openacc_ast_only

bool SgFile::p_openacc_ast_only

protected

Definition at line 32069 of file Cxx_Grammar.h.

◆ p_cray_pointer_support

bool SgFile::p_cray_pointer_support

protected

Definition at line 32073 of file Cxx_Grammar.h.

◆ p_failsafe

bool SgFile::p_failsafe

protected

Definition at line 32077 of file Cxx_Grammar.h.

◆ p_output_parser_actions

bool SgFile::p_output_parser_actions

protected

Definition at line 32081 of file Cxx_Grammar.h.

◆ p_exit_after_parser

bool SgFile::p_exit_after_parser

protected

Definition at line 32085 of file Cxx_Grammar.h.

◆ p_skip_syntax_check

bool SgFile::p_skip_syntax_check

protected

Definition at line 32089 of file Cxx_Grammar.h.

◆ p_skip_parser

bool SgFile::p_skip_parser

protected

Definition at line 32093 of file Cxx_Grammar.h.

◆ p_relax_syntax_check

bool SgFile::p_relax_syntax_check

protected

Definition at line 32097 of file Cxx_Grammar.h.

◆ p_skip_translation_from_edg_ast_to_rose_ast

bool SgFile::p_skip_translation_from_edg_ast_to_rose_ast

protected

Definition at line 32101 of file Cxx_Grammar.h.

◆ p_skip_transformation

bool SgFile::p_skip_transformation

protected

Definition at line 32105 of file Cxx_Grammar.h.

◆ p_skip_unparse

bool SgFile::p_skip_unparse

protected

Definition at line 32109 of file Cxx_Grammar.h.

◆ p_skipfinalCompileStep

bool SgFile::p_skipfinalCompileStep

protected

Definition at line 32113 of file Cxx_Grammar.h.

◆ p_unparse_includes

bool SgFile::p_unparse_includes

protected

Definition at line 32117 of file Cxx_Grammar.h.

◆ p_unparse_line_directives

bool SgFile::p_unparse_line_directives

protected

Definition at line 32121 of file Cxx_Grammar.h.

◆ p_unparse_function_calls_using_operator_syntax

bool SgFile::p_unparse_function_calls_using_operator_syntax

protected

Definition at line 32125 of file Cxx_Grammar.h.

◆ p_unparse_function_calls_using_operator_names

bool SgFile::p_unparse_function_calls_using_operator_names

protected

Definition at line 32129 of file Cxx_Grammar.h.

◆ p_unparse_instruction_addresses

bool SgFile::p_unparse_instruction_addresses

protected

Definition at line 32133 of file Cxx_Grammar.h.

◆ p_unparse_raw_memory_contents

bool SgFile::p_unparse_raw_memory_contents

protected

Definition at line 32137 of file Cxx_Grammar.h.

◆ p_unparse_binary_file_format

bool SgFile::p_unparse_binary_file_format

protected

Definition at line 32141 of file Cxx_Grammar.h.

◆ p_outputLanguage

SgFile::languageOption_enum SgFile::p_outputLanguage

protected

Definition at line 32145 of file Cxx_Grammar.h.

◆ p_inputLanguage

SgFile::languageOption_enum SgFile::p_inputLanguage

protected

Definition at line 32149 of file Cxx_Grammar.h.

◆ p_sourceFileNameWithPath

std::string SgFile::p_sourceFileNameWithPath

protected

Definition at line 32153 of file Cxx_Grammar.h.

◆ p_sourceFileNameWithoutPath

std::string SgFile::p_sourceFileNameWithoutPath

protected

Definition at line 32157 of file Cxx_Grammar.h.

◆ p_unparse_output_filename

std::string SgFile::p_unparse_output_filename

protected

Definition at line 32161 of file Cxx_Grammar.h.

◆ p_objectFileNameWithPath

std::string SgFile::p_objectFileNameWithPath

protected

Definition at line 32165 of file Cxx_Grammar.h.

◆ p_objectFileNameWithoutPath

std::string SgFile::p_objectFileNameWithoutPath

protected

Definition at line 32169 of file Cxx_Grammar.h.

◆ p_useBackendOnly

bool SgFile::p_useBackendOnly

protected

Definition at line 32173 of file Cxx_Grammar.h.

◆ p_compileOnly

bool SgFile::p_compileOnly

protected

Definition at line 32177 of file Cxx_Grammar.h.

◆ p_savedFrontendCommandLine

std::string SgFile::p_savedFrontendCommandLine

protected

Definition at line 32181 of file Cxx_Grammar.h.

◆ p_no_implicit_templates

SgFile::p_no_implicit_templates

protected

This is a reference to the GNU g++ command line option (same name).

If the option "-no_implicit_templates" is seen on the command line then this is true. Else it may be manipulated directly within the ROSE command line processing.

This option controls if instantiated templates should be output where they are not specified explicitly via explicit template instatiation directives (see SgTemplateInstatiationDirectiveStatement, formally part of C++).

Definition at line 32185 of file Cxx_Grammar.h.

◆ p_no_implicit_inline_templates

SgFile::p_no_implicit_inline_templates

protected

This is a reference to the GNU g++ command line option (same name).

If the option "-no_implicit_inline_templates" is seen on the command line then this is true. Else it may be manipulated directly within the ROSE command line processing.

This option controls if instantiated templates for inline functions should be output where they are not specified explicitly via explicit template instatiation directives (see SgTemplateInstatiationDirectiveStatement, formally part of C++).

Definition at line 32189 of file Cxx_Grammar.h.

◆ p_skip_commentsAndDirectives

bool SgFile::p_skip_commentsAndDirectives

protected

Definition at line 32193 of file Cxx_Grammar.h.

◆ p_collectAllCommentsAndDirectives

bool SgFile::p_collectAllCommentsAndDirectives

protected

Definition at line 32197 of file Cxx_Grammar.h.

◆ p_translateCommentsAndDirectivesIntoAST

bool SgFile::p_translateCommentsAndDirectivesIntoAST

protected

Definition at line 32201 of file Cxx_Grammar.h.

◆ p_unparseHeaderFiles

bool SgFile::p_unparseHeaderFiles

protected

Definition at line 32205 of file Cxx_Grammar.h.

◆ p_preprocessorDirectivesAndCommentsList

ROSEAttributesListContainerPtr SgFile::p_preprocessorDirectivesAndCommentsList

protected

This is the container of comments and preprocessor control statements that was extracted from the file and which has been woven back into the AST (using heuristics).

This information is extracted from the file using a lex based parser. Within AST post processing the comments and preprocessor control statements are woven back into the AST using simple heuristics. They are attached to the IR nodes as attributes (see AST attribute Mechanism). They are unparsed as part of the code generation phase.

Definition at line 32209 of file Cxx_Grammar.h.

◆ p_attributeMechanism

AstAttributeMechanism* SgFile::p_attributeMechanism

protected

Definition at line 32213 of file Cxx_Grammar.h.

◆ p_KCC_frontend

bool SgFile::p_KCC_frontend

protected

Definition at line 32217 of file Cxx_Grammar.h.

◆ p_new_frontend

bool SgFile::p_new_frontend

protected

Definition at line 32221 of file Cxx_Grammar.h.

◆ p_disable_edg_backend

bool SgFile::p_disable_edg_backend

protected

Definition at line 32225 of file Cxx_Grammar.h.

◆ p_disable_sage_backend

bool SgFile::p_disable_sage_backend

protected

Definition at line 32229 of file Cxx_Grammar.h.

◆ p_testingLevel

int SgFile::p_testingLevel

protected

Definition at line 32233 of file Cxx_Grammar.h.

◆ p_preinit_il

bool SgFile::p_preinit_il

protected

Definition at line 32237 of file Cxx_Grammar.h.

◆ p_enable_cp_backend

bool SgFile::p_enable_cp_backend

protected

Definition at line 32241 of file Cxx_Grammar.h.

◆ p_markGeneratedFiles

bool SgFile::p_markGeneratedFiles

protected

Definition at line 32245 of file Cxx_Grammar.h.

◆ p_negative_test

bool SgFile::p_negative_test

protected

Definition at line 32249 of file Cxx_Grammar.h.

◆ p_strict_language_handling

bool SgFile::p_strict_language_handling

protected

Definition at line 32253 of file Cxx_Grammar.h.

◆ p_wave

bool SgFile::p_wave

protected

Definition at line 32257 of file Cxx_Grammar.h.

◆ p_embedColorCodesInGeneratedCode

int SgFile::p_embedColorCodesInGeneratedCode

protected

Definition at line 32261 of file Cxx_Grammar.h.

◆ p_generateSourcePositionCodes

int SgFile::p_generateSourcePositionCodes

protected

Definition at line 32265 of file Cxx_Grammar.h.

◆ p_sourceFileUsesCppFileExtension

bool SgFile::p_sourceFileUsesCppFileExtension

protected

Definition at line 32269 of file Cxx_Grammar.h.

◆ p_sourceFileUsesFortranFileExtension

bool SgFile::p_sourceFileUsesFortranFileExtension

protected

Definition at line 32273 of file Cxx_Grammar.h.

◆ p_sourceFileUsesFortran77FileExtension

bool SgFile::p_sourceFileUsesFortran77FileExtension

protected

Definition at line 32277 of file Cxx_Grammar.h.

◆ p_sourceFileUsesFortran90FileExtension

bool SgFile::p_sourceFileUsesFortran90FileExtension

protected

Definition at line 32281 of file Cxx_Grammar.h.

◆ p_sourceFileUsesFortran95FileExtension

bool SgFile::p_sourceFileUsesFortran95FileExtension

protected

Definition at line 32285 of file Cxx_Grammar.h.

◆ p_sourceFileUsesFortran2003FileExtension

bool SgFile::p_sourceFileUsesFortran2003FileExtension

protected

Definition at line 32289 of file Cxx_Grammar.h.

◆ p_sourceFileUsesFortran2008FileExtension

bool SgFile::p_sourceFileUsesFortran2008FileExtension

protected

Definition at line 32293 of file Cxx_Grammar.h.

◆ p_sourceFileUsesCoArrayFortranFileExtension

bool SgFile::p_sourceFileUsesCoArrayFortranFileExtension

protected

Definition at line 32297 of file Cxx_Grammar.h.

◆ p_sourceFileUsesPHPFileExtension

bool SgFile::p_sourceFileUsesPHPFileExtension

protected

Definition at line 32301 of file Cxx_Grammar.h.

◆ p_sourceFileUsesPythonFileExtension

bool SgFile::p_sourceFileUsesPythonFileExtension

protected

Definition at line 32305 of file Cxx_Grammar.h.

◆ p_sourceFileUsesJavaFileExtension

bool SgFile::p_sourceFileUsesJavaFileExtension

protected

Definition at line 32309 of file Cxx_Grammar.h.

◆ p_sourceFileUsesJvmFileExtension

bool SgFile::p_sourceFileUsesJvmFileExtension

protected

Definition at line 32313 of file Cxx_Grammar.h.

◆ p_sourceFileUsesBinaryFileExtension

bool SgFile::p_sourceFileUsesBinaryFileExtension

protected

Definition at line 32317 of file Cxx_Grammar.h.

◆ p_sourceFileTypeIsUnknown

bool SgFile::p_sourceFileTypeIsUnknown

protected

Definition at line 32321 of file Cxx_Grammar.h.

◆ p_sourceFileUsesCsharpFileExtension

bool SgFile::p_sourceFileUsesCsharpFileExtension

protected

Definition at line 32325 of file Cxx_Grammar.h.

◆ p_sourceFileUsesAdaFileExtension

bool SgFile::p_sourceFileUsesAdaFileExtension

protected

Definition at line 32329 of file Cxx_Grammar.h.

◆ p_sourceFileUsesJovialFileExtension

bool SgFile::p_sourceFileUsesJovialFileExtension

protected

Definition at line 32333 of file Cxx_Grammar.h.

◆ p_detect_dangling_pointers

int SgFile::p_detect_dangling_pointers

protected

Definition at line 32337 of file Cxx_Grammar.h.

◆ p_experimental_flang_frontend

bool SgFile::p_experimental_flang_frontend

protected

Definition at line 32341 of file Cxx_Grammar.h.

◆ p_read_executable_file_format_only

bool SgFile::p_read_executable_file_format_only

protected

Definition at line 32345 of file Cxx_Grammar.h.

◆ p_visualize_executable_file_format_skip_symbols

bool SgFile::p_visualize_executable_file_format_skip_symbols

protected

Definition at line 32349 of file Cxx_Grammar.h.

◆ p_visualize_dwarf_only

bool SgFile::p_visualize_dwarf_only

protected

Definition at line 32353 of file Cxx_Grammar.h.

◆ p_read_instructions_only

bool SgFile::p_read_instructions_only

protected

Definition at line 32357 of file Cxx_Grammar.h.

◆ p_skip_unparse_asm_commands

bool SgFile::p_skip_unparse_asm_commands

staticprotected

Definition at line 32361 of file Cxx_Grammar.h.

◆ p_libraryArchiveObjectFileNameList

SgStringList SgFile::p_libraryArchiveObjectFileNameList

protected

Definition at line 32365 of file Cxx_Grammar.h.

◆ p_isLibraryArchive

bool SgFile::p_isLibraryArchive

protected

Definition at line 32369 of file Cxx_Grammar.h.

◆ p_isObjectFile

bool SgFile::p_isObjectFile

protected

Definition at line 32373 of file Cxx_Grammar.h.

◆ p_unparse_tokens

bool SgFile::p_unparse_tokens

protected

Definition at line 32377 of file Cxx_Grammar.h.

◆ p_unparse_tokens_testing

int SgFile::p_unparse_tokens_testing

protected

Definition at line 32381 of file Cxx_Grammar.h.

◆ p_unparse_using_leading_and_trailing_token_mappings

bool SgFile::p_unparse_using_leading_and_trailing_token_mappings

protected

Definition at line 32385 of file Cxx_Grammar.h.

◆ p_unparse_template_ast

bool SgFile::p_unparse_template_ast

protected

Definition at line 32389 of file Cxx_Grammar.h.

◆ p_skipAstConsistancyTests

bool SgFile::p_skipAstConsistancyTests

protected

Definition at line 32393 of file Cxx_Grammar.h.

◆ p_multifile_support

bool SgFile::p_multifile_support

protected

Definition at line 32397 of file Cxx_Grammar.h.

◆ p_optimization

bool SgFile::p_optimization

protected

Definition at line 32401 of file Cxx_Grammar.h.

◆ p_use_token_stream_to_improve_source_position_info

bool SgFile::p_use_token_stream_to_improve_source_position_info

protected

Definition at line 32405 of file Cxx_Grammar.h.

◆ p_suppress_variable_declaration_normalization

bool SgFile::p_suppress_variable_declaration_normalization

protected

Definition at line 32409 of file Cxx_Grammar.h.

◆ p_edg_il_to_graphviz

bool SgFile::p_edg_il_to_graphviz

protected

Definition at line 32413 of file Cxx_Grammar.h.

◆ p_clang_il_to_graphviz

bool SgFile::p_clang_il_to_graphviz

protected

Definition at line 32417 of file Cxx_Grammar.h.

◆ p_no_optimize_flag_for_frontend

bool SgFile::p_no_optimize_flag_for_frontend

protected

Definition at line 32421 of file Cxx_Grammar.h.

◆ p_unparse_edg_normalized_method_ROSE_1392

bool SgFile::p_unparse_edg_normalized_method_ROSE_1392

protected

Definition at line 32425 of file Cxx_Grammar.h.

◆ p_header_file_unparsing_optimization

bool SgFile::p_header_file_unparsing_optimization

staticprotected

Definition at line 32429 of file Cxx_Grammar.h.

◆ p_standard

SgFile::standard_enum SgFile::p_standard

protected

Definition at line 32433 of file Cxx_Grammar.h.

◆ p_gnu_standard

bool SgFile::p_gnu_standard

protected

Definition at line 32437 of file Cxx_Grammar.h.

◆ p_frontendErrorCode

int SgFile::p_frontendErrorCode

protected

Definition at line 32441 of file Cxx_Grammar.h.

◆ p_javacErrorCode

int SgFile::p_javacErrorCode

protected

Definition at line 32445 of file Cxx_Grammar.h.

◆ p_ecjErrorCode

int SgFile::p_ecjErrorCode

protected

Definition at line 32449 of file Cxx_Grammar.h.

◆ p_midendErrorCode

int SgFile::p_midendErrorCode

protected

Definition at line 32453 of file Cxx_Grammar.h.

◆ p_unparserErrorCode

int SgFile::p_unparserErrorCode

protected

Definition at line 32457 of file Cxx_Grammar.h.

◆ p_backendCompilerErrorCode

int SgFile::p_backendCompilerErrorCode

protected

Definition at line 32461 of file Cxx_Grammar.h.

◆ p_unparsedFileFailedCompilation

bool SgFile::p_unparsedFileFailedCompilation

protected

Definition at line 32465 of file Cxx_Grammar.h.

The documentation for this class was generated from the following files:

Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Member Typedef Documentation

◆ base_node_type

Member Enumeration Documentation

◆ outputFormatOption_enum

◆ languageOption_enum

◆ standard_enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ ~SgFile()

◆ SgFile()

Member Function Documentation

◆ copy()

◆ get_file_info()

◆ addNewAttribute()

◆ getAttribute()

◆ updateAttribute()

◆ setAttribute()

◆ removeAttribute()

◆ attributeExists()

◆ numberOfAttributes()

◆ class_name()

◆ variantT()

◆ operator delete()

◆ get_traversalSuccessorContainer()

◆ get_traversalSuccessorNamesContainer()

◆ get_numberOfTraversalSuccessors()

◆ get_traversalSuccessorByIndex()

◆ get_childIndex()

◆ roseRTI()

◆ sage_class_name()

◆ accept()

◆ isInMemoryPool()

◆ checkDataMemberPointersIfInMemoryPool()

◆ returnDataMemberPointers()

◆ processDataMemberReferenceToPointers()

◆ getChildIndex()

◆ addRegExpAttribute()

◆ get_startOfConstruct()

◆ get_attributeMechanism()

◆ set_attributeMechanism()

Member Data Documentation

◆ p_startOfConstruct

◆ p_originalCommandLineArgumentList

◆ p_verbose

◆ p_output_warnings

◆ p_C_only

◆ p_Cxx_only

◆ p_Fortran_only

◆ p_CoArrayFortran_only

◆ p_upc_threads

◆ p_Java_only

◆ p_Jvm_only

◆ p_Jovial_only

◆ p_PHP_only

◆ p_Python_only

◆ p_Cuda_only

◆ p_OpenCL_only

◆ p_Csharp_only

◆ p_Ada_only

◆ p_requires_C_preprocessor

◆ p_binary_only

◆ p_inputFormat

◆ p_outputFormat

◆ p_backendCompileFormat

◆ p_fortran_implicit_none

◆ p_openmp

◆ p_openmp_parse_only

◆ p_openmp_ast_only

◆ p_openmp_lowering

◆ p_openacc

◆ p_openacc_parse_only

◆ p_openacc_ast_only

◆ p_cray_pointer_support
