StaticCFG::CFG Class Reference

Description

Definition at line 24 of file staticCFG.h.

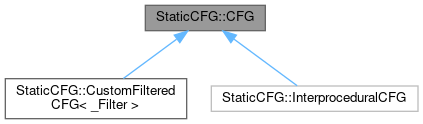

Inheritance diagram for StaticCFG::CFG:

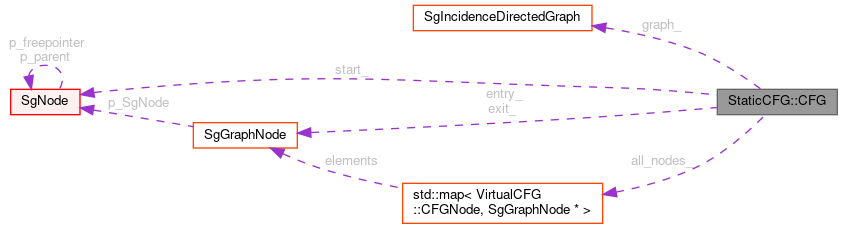

Collaboration diagram for StaticCFG::CFG:

Public Member Functions
CFGNode	toCFGNode (SgGraphNode *node)
	Turn a graph node into a CFGNode which is defined in VirtualCFG namespace.
SgGraphNode *	toGraphNode (CFGNode &n)
	Turn a CFG node into a GraphNode which is defined in VirtualCFG namespace.
	CFG (SgNode *node, bool is_filtered=false)
	The constructor building the CFG.
SgIncidenceDirectedGraph *	getGraph () const
	Get the pointer pointing to the graph used by static CFG.
void	setStart (SgNode *node)
	Set the start node for graph building.
SgGraphNode *	getEntry () const
	Get the entry node of the CFG.
SgGraphNode *	getExit () const
	Get the exit node of the CFG.
bool	isFilteredCFG () const
void	setFiltered (bool flag)
virtual void	buildCFG ()
	Build CFG according to the 'is_filtered_' flag.
virtual void	buildFullCFG ()
	Build CFG for debugging.
virtual void	buildFilteredCFG ()
	Build filtered CFG which only contains interesting nodes.
std::vector< SgDirectedGraphEdge * >	getOutEdges (SgGraphNode *node)
std::vector< SgDirectedGraphEdge * >	getInEdges (SgGraphNode *node)
SgGraphNode *	cfgForBeginning (SgNode *node)
SgGraphNode *	cfgForEnd (SgNode *node)
void	cfgToDot (SgNode *node, const std::string &file_name)
	Output the graph to a DOT file.

Static Public Member Functions
static int	getIndex (SgGraphNode *node)
	Get the index of a CFG node.

Protected Member Functions
template<class NodeT , class EdgeT >
void	buildCFG (NodeT n, std::map< NodeT, SgGraphNode * > &all_nodes, std::set< NodeT > &explored)
void	clearNodesAndEdges ()
	Delete all nodes and edges in the graph and release memories.
virtual void	processNodes (std::ostream &o, SgGraphNode *n, std::set< SgGraphNode * > &explored)
virtual void	printNodePlusEdges (std::ostream &o, SgGraphNode *node)
virtual void	printNode (std::ostream &o, SgGraphNode *node)
virtual void	printEdge (std::ostream &o, SgDirectedGraphEdge *edge, bool isInEdge)

Protected Attributes
SgIncidenceDirectedGraph *	graph_
	The graph data structure holding the CFG.
std::map< CFGNode, SgGraphNode * >	all_nodes_
	A map from CFGNode in virtualCFG to node from staticCFG.
SgNode *	start_
	The start node to begin CFG build.
SgGraphNode *	entry_
	The entry node.
SgGraphNode *	exit_
	The exit node.
bool	is_filtered_
	A flag shows whether this CFG is filtered or not.

Constructor & Destructor Documentation

CFG() [1/2]

StaticCFG::CFG::CFG ( )

inline

Definition at line 46 of file staticCFG.h.

CFG() [2/2]

StaticCFG::CFG::CFG	(	SgNode *	node,
		bool	is_filtered = false
	)

The constructor building the CFG.

The valid nodes are SgProject, SgStatement, SgExpression and SgInitializedName.

~CFG()

virtual StaticCFG::CFG::~CFG ( )

inlinevirtual

Definition at line 69 of file staticCFG.h.

Member Function Documentation

toGraphNode()

SgGraphNode * StaticCFG::CFG::toGraphNode ( CFGNode &  n )

inline

Turn a CFG node into a GraphNode which is defined in VirtualCFG namespace.

Returns NULL if CFGNode is not present

Definition at line 53 of file staticCFG.h.

getGraph()

SgIncidenceDirectedGraph * StaticCFG::CFG::getGraph ( ) const

inline

Get the pointer pointing to the graph used by static CFG.

Definition at line 66 of file staticCFG.h.

setStart()

void StaticCFG::CFG::setStart ( SgNode *  node )

inline

Set the start node for graph building.

The valid nodes are SgProject, SgStatement, SgExpression and SgInitializedName.

Definition at line 74 of file staticCFG.h.

getEntry()

SgGraphNode * StaticCFG::CFG::getEntry ( ) const

inline

Get the entry node of the CFG.

Definition at line 77 of file staticCFG.h.

getExit()

SgGraphNode * StaticCFG::CFG::getExit ( ) const

inline

Get the exit node of the CFG.

Definition at line 81 of file staticCFG.h.

isFilteredCFG()

bool StaticCFG::CFG::isFilteredCFG ( ) const

inline

Definition at line 84 of file staticCFG.h.

setFiltered()

void StaticCFG::CFG::setFiltered ( bool  flag )

inline

Definition at line 85 of file staticCFG.h.

buildCFG()

virtual void StaticCFG::CFG::buildCFG ( )

inlinevirtual

Build CFG according to the 'is_filtered_' flag.

Reimplemented in StaticCFG::InterproceduralCFG.

Definition at line 89 of file staticCFG.h.

buildFullCFG()

virtual void StaticCFG::CFG::buildFullCFG ( )

virtual

Build CFG for debugging.

Reimplemented in StaticCFG::InterproceduralCFG.

buildFilteredCFG()

virtual void StaticCFG::CFG::buildFilteredCFG ( )

virtual

Build filtered CFG which only contains interesting nodes.

Reimplemented in StaticCFG::CustomFilteredCFG< _Filter >, and StaticCFG::InterproceduralCFG.

printEdge()

virtual void StaticCFG::CFG::printEdge ( std::ostream &  o, SgDirectedGraphEdge *  edge, bool  isInEdge  )

protectedvirtual

Reimplemented in StaticCFG::CustomFilteredCFG< _Filter >.

Member Data Documentation

graph_

SgIncidenceDirectedGraph* StaticCFG::CFG::graph_

protected

The graph data structure holding the CFG.

Definition at line 28 of file staticCFG.h.

all_nodes_

std::map<CFGNode, SgGraphNode*> StaticCFG::CFG::all_nodes_

protected

A map from CFGNode in virtualCFG to node from staticCFG.

Definition at line 31 of file staticCFG.h.

start_

SgNode* StaticCFG::CFG::start_

protected

The start node to begin CFG build.

Definition at line 34 of file staticCFG.h.

entry_

SgGraphNode* StaticCFG::CFG::entry_

protected

The entry node.

Definition at line 37 of file staticCFG.h.

exit_

SgGraphNode* StaticCFG::CFG::exit_

protected

The exit node.

Definition at line 40 of file staticCFG.h.

is_filtered_

bool StaticCFG::CFG::is_filtered_

protected

A flag shows whether this CFG is filtered or not.

Definition at line 43 of file staticCFG.h.

---

The documentation for this class was generated from the following file:

• staticCFG.h
