Description

Dispatches MIPS instructions through the semantics layer.

The instruction is lowered to a set of a few dozen operations that operate on values and states in a semantic domain.

Definition at line 31 of file DispatcherMips.h.

#include <Rose/BinaryAnalysis/InstructionSemantics/DispatcherMips.h>

Inheritance diagram for Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips:

[legend]

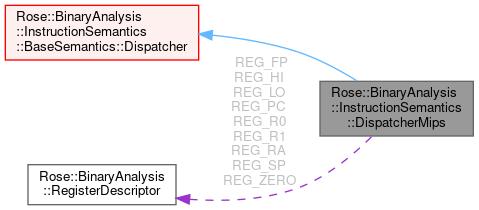

Collaboration diagram for Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips:

[legend]

Public Types
using	Super = BaseSemantics::Dispatcher
	Base type.

using	Ptr = DispatcherMipsPtr
	Shared-ownership pointer.

Public Types inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher
using	Ptr = DispatcherPtr
	Shared-ownership pointer.

Public Member Functions
virtual BaseSemantics::DispatcherPtr	create (const BaseSemantics::RiscOperatorsPtr &) const override
	Virtual constructor.

virtual int	iprocKey (SgAsmInstruction *) const override
	Given an instruction, return the InsnProcessor key that can be used as an index into the iproc_table.

virtual BaseSemantics::SValuePtr	read (SgAsmExpression *, size_t valueNBits=0, size_t addrNBits=0) override
	Reads an R-value expression.

Public Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher
virtual void	processInstruction (SgAsmInstruction *insn)
	Process a single instruction.

virtual void	processDelaySlot (SgAsmInstruction *delayInsn)
	Process a delay slot.

virtual InsnProcessor *	iprocLookup (SgAsmInstruction *insn)
	Lookup the processor for an instruction.

virtual void	iprocReplace (SgAsmInstruction insn, InsnProcessor iproc)
	Replace an instruction processor with another.

virtual void	iprocSet (int key, InsnProcessor *iproc)
	Set an iproc table entry to the specified value.

virtual InsnProcessor *	iprocGet (int key)
	Obtain an iproc table entry for the specified key.

Architecture::BaseConstPtr	architecture () const
	Property: Architecture.

virtual StatePtr	currentState () const
	Get a pointer to the state object.

virtual SValuePtr	protoval () const
	Return the prototypical value.

virtual SgAsmInstruction *	currentInstruction () const
	Returns the instruction that is being processed.

virtual SValuePtr	number_ (size_t nbits, uint64_t number) const
	Return a semantic value representing a number.

RegisterDictionaryPtr	registerDictionary () const
	Property: Register dictionary.

virtual RegisterDescriptor	findRegister (const std::string &regname, size_t nbits=0, bool allowMissing=false) const
	Lookup a register by name.

size_t	addressWidth () const
	Property: Width of memory addresses in bits.

virtual RegisterDescriptor	instructionPointerRegister () const
	Returns the instruction pointer register.

virtual RegisterDescriptor	stackPointerRegister () const
	Returns the stack pointer register.

virtual RegisterDescriptor	stackFrameRegister () const
	Returns the stack call frame register.

virtual RegisterDescriptor	callReturnRegister () const
	Returns the function call return address register.

virtual void	initializeState (const StatePtr &)
	Initialize the state.

virtual void	advanceInstructionPointer (SgAsmInstruction *)
	Update the instruction pointer register.

virtual RegisterDescriptor	segmentRegister (SgAsmMemoryReferenceExpression *)
	Returns a register descriptor for the segment part of a memory reference expression.

virtual void	incrementRegisters (SgAsmExpression *)
	Increment all auto-increment registers in the expression.

virtual void	decrementRegisters (SgAsmExpression *)
	Decrement all auto-decrement registers in the expression.

virtual void	preUpdate (SgAsmExpression *, const BaseSemantics::SValuePtr &enabled)
	Update registers for pre-add expressions.

virtual void	postUpdate (SgAsmExpression *, const BaseSemantics::SValuePtr &enabled)
	Update registers for post-add expressions.

virtual SValuePtr	effectiveAddress (SgAsmExpression *, size_t nbits=0)
	Returns a memory address by evaluating the address expression.

virtual void	write (SgAsmExpression *, const SValuePtr &value, size_t addr_nbits=0)
	Writes to an L-value expression.

virtual RiscOperatorsPtr	operators () const
	Property: RISC operators.

virtual void	operators (const RiscOperatorsPtr &)
	Property: RISC operators.

virtual SValuePtr	undefined_ (size_t nbits) const
	Return a new undefined semantic value.

virtual SValuePtr	unspecified_ (size_t nbits) const
	Return a new undefined semantic value.

bool	autoResetInstructionPointer () const
	Property: Reset instruction pointer register for each instruction.

void	autoResetInstructionPointer (bool b)
	Property: Reset instruction pointer register for each instruction.

Static Public Member Functions
static Ptr	instance (const Architecture::BaseConstPtr &)
	Construct a prototypical dispatcher.

static Ptr	instance (const Architecture::BaseConstPtr &, const BaseSemantics::RiscOperatorsPtr &)
	Constructor.

static Ptr	promote (const BaseSemantics::DispatcherPtr &)
	Dynamic cast to DispatcherMipsPtr with assertion.

Public Attributes

const RegisterDescriptor	REG_R0
	Cached register.

const RegisterDescriptor	REG_R1
	Cached register.

const RegisterDescriptor	REG_HI
	Cached register.

const RegisterDescriptor	REG_LO
	Cached register.

const RegisterDescriptor	REG_PC
	Cached register.

const RegisterDescriptor	REG_SP
	Cached register.

const RegisterDescriptor	REG_FP
	Cached register.

const RegisterDescriptor	REG_RA
	Cached register.

const RegisterDescriptor	REG_ZERO
	Cached register.

Protected Member Functions
	DispatcherMips (const Architecture::BaseConstPtr &)

	DispatcherMips (const Architecture::BaseConstPtr &, const BaseSemantics::RiscOperatorsPtr &)

Protected Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher
	Dispatcher (const Architecture::BaseConstPtr &)

	Dispatcher (const Architecture::BaseConstPtr &, const RiscOperatorsPtr &)

virtual void	processCommon ()

Additional Inherited Members
Protected Types inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher
typedef std::vector< InsnProcessor * >	InsnProcessors

Protected Attributes inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher
bool	autoResetInstructionPointer_ = true
	Reset instruction pointer register for each instruction.

InsnProcessors	iproc_table

Member Typedef Documentation

◆ Super

using Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips::Super = BaseSemantics::Dispatcher

Base type.

Definition at line 34 of file DispatcherMips.h.

◆ Ptr

using Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips::Ptr = DispatcherMipsPtr

Shared-ownership pointer.

Definition at line 37 of file DispatcherMips.h.

Member Function Documentation

◆ instance()

static Ptr Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips::instance ( const Architecture::BaseConstPtr & )

static

Construct a prototypical dispatcher.

The only thing this dispatcher can be used for is to create another dispatcher with the virtual create method.

◆ create()

virtual BaseSemantics::DispatcherPtr Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips::create ( const BaseSemantics::RiscOperatorsPtr & ops ) const

overridevirtual

Virtual constructor.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher.

◆ iprocKey()

virtual int Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips::iprocKey ( SgAsmInstruction * ) const

overridevirtual

Given an instruction, return the InsnProcessor key that can be used as an index into the iproc_table.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher.

◆ read()

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::DispatcherMips::read	(	SgAsmExpression *	,
		size_t	value_nbits = `0`,
		size_t	addr_nbits = `0`
	)

overridevirtual

Reads an R-value expression.

The expression can be a constant, register reference, or memory reference. The width of the returned value is specified by the value_nbits argument, and if this argument is zero then the width of the expression type is used. The width of the address passed to lower-level memory access functions is specified by addr_nbits. If addr_nbits is zero then the natural width of the effective address is passed to lower level functions.

Reimplemented from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::Dispatcher.
