Description

Class for traversing the AST.

This class allows to traverse the AST in preorder or postorder. A visit function must be implemented by the user which is automaticly called by the provided AST traversal.

Definition at line 59 of file AstSimpleProcessing.h.

#include <AstProcessing.h>

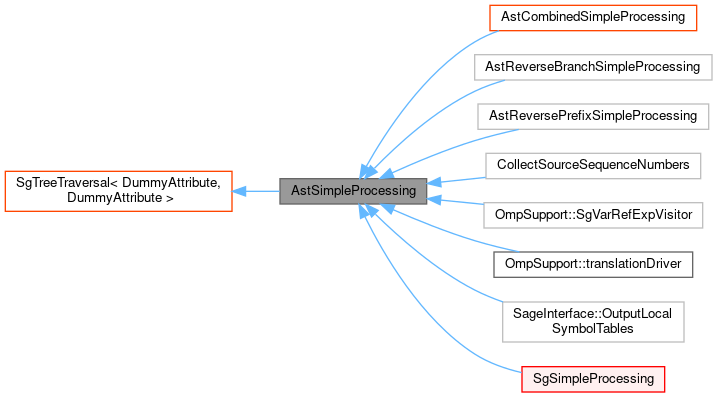

Inheritance diagram for AstSimpleProcessing:

[legend]

Collaboration diagram for AstSimpleProcessing:

[legend]

Public Types
typedef t_traverseOrder	Order

Public Types inherited from SgTreeTraversal< DummyAttribute, DummyAttribute >
typedef StackFrameVector< DummyAttribute >	SynthesizedAttributesList

Public Member Functions
void	traverse (SgNode *node, Order treeTraversalOrder)
	traverse the entire AST. Order defines preorder (preorder) or postorder (postorder) traversal. Default is 'preorder'.

void	traverseWithinFile (SgNode *node, Order treeTraversalOrder)
	traverse only nodes which represent the same file as where the traversal was started

void	traverseInputFiles (SgProject *projectNode, Order treeTraversalOrder)
	traverse only nodes which represent files which were specified on the command line (=input files).

Public Member Functions inherited from SgTreeTraversal< DummyAttribute, DummyAttribute >
DummyAttribute	traverse (SgNode *basenode, DummyAttribute inheritedValue, t_traverseOrder travOrder=preandpostorder)

DummyAttribute	traverseWithinFile (SgNode *basenode, DummyAttribute inheritedValue, t_traverseOrder travOrder=preandpostorder)

void	traverseInputFiles (SgProject *projectNode, DummyAttribute inheritedValue, t_traverseOrder travOrder=preandpostorder)

	SgTreeTraversal (const SgTreeTraversal &)

const SgTreeTraversal &	operator= (const SgTreeTraversal &)

Protected Member Functions
virtual void	visit (SgNode *astNode)=0
	this method is called at every traversed node.

virtual void	atTraversalStart ()
	GB (06/04/2007): A new virtual function called at the start of the traversal, before any node is actually visited; can be used to perform a "last-minute" computation of attributes that may have changed since the constructor was executed, but are constant during the traversal itself.

virtual void	atTraversalEnd ()

Protected Member Functions inherited from SgTreeTraversal< DummyAttribute, DummyAttribute >
virtual void	setNodeSuccessors (SgNode *node, SuccessorsContainer &succContainer)

void	set_useDefaultIndexBasedTraversal (bool)

Additional Inherited Members
Protected Types inherited from SgTreeTraversal< DummyAttribute, DummyAttribute >
typedef AstSuccessorsSelectors::SuccessorsContainer	SuccessorsContainer

typedef SuccessorsContainer &	SuccessorsContainerRef

Member Typedef Documentation

◆ Order

typedef t_traverseOrder AstSimpleProcessing::Order

Definition at line 63 of file AstSimpleProcessing.h.

Member Function Documentation

◆ traverse()

AstSimpleProcessing::traverse	(	SgNode *	node,
		Order	treeTraversalOrder
	)

traverse the entire AST. Order defines preorder (preorder) or postorder (postorder) traversal. Default is 'preorder'.

Function to start the traversal on the subtree defined by node.

This is the call to start the traversal on the subtree defined by node.

Parameters

node	represents the root of the subtree in the AST
treeTraversalOrder	represents the traversal order (preorder or postorder).

◆ traverseInputFiles()

AstSimpleProcessing::traverseInputFiles	(	SgProject *	projectNode,
		Order	treeTraversalOrder
	)

traverse only nodes which represent files which were specified on the command line (=input files).

Function to start the traversal on the subtree defined by root (skip and nodes from other files).

This is the call to start the traversal on the subtree defined by root. This function will cause AST nodes that have a source position in any other files to be skipped (skips all header files for example).

Parameters

projectNode	represents the root of the subtree in the AST
treeTraversalOrder	represents the traversal order (preorder or postorder).

◆ visit()

virtual void AstSimpleProcessing::visit ( SgNode * astNode )

protectedpure virtual

this method is called at every traversed node.

Implemented in OmpSupport::translationDriver, AstCombinedSimpleProcessing, AstSharedMemoryParallelizableSimpleProcessing, NewCallGraph::CallGraph, sg::TraversalClass< GVisitor >, OmpSupport::SgVarRefExpVisitor, SageInterface::OutputLocalSymbolTables, AstNodeVisitMapping, and AstTextAttributesHandling.

◆ atTraversalStart()

virtual void AstSimpleProcessing::atTraversalStart ( )

protectedvirtual

GB (06/04/2007): A new virtual function called at the start of the traversal, before any node is actually visited; can be used to perform a "last-minute" computation of attributes that may have changed since the constructor was executed, but are constant during the traversal itself.

A no-op by default.

Reimplemented from SgTreeTraversal< DummyAttribute, DummyAttribute >.

Reimplemented in AstCombinedSimpleProcessing.

◆ atTraversalEnd()

virtual void AstSimpleProcessing::atTraversalEnd ( )

protectedvirtual

Reimplemented from SgTreeTraversal< DummyAttribute, DummyAttribute >.

The documentation for this class was generated from the following files:
