Rosebud::Ast::CppStack Class Reference

Description

Information about C preprocessor conditional compilation directives.

Definition at line 130 of file Ast.h.

#include <Rosebud/Ast.h>

Inheritance diagram for Rosebud::Ast::CppStack:

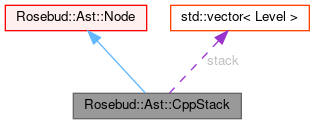

Collaboration diagram for Rosebud::Ast::CppStack:

Classes
struct	Directive
	Conditional compilation directive. More...

Public Types
enum	Type {   Type::IF,   Type::ELSE,   Type::END,   Type::OTHER }
	Type of CPP directive. More...
using	Ptr = CppStackPtr
	Shared-ownership pointer. More...
using	Level = std::list< Directive >
	The CPP directives that belong to the same level. More...
using	Stack = std::vector< Level >
	A stack of nested conditional compilation directives. More...
Public Types inherited from Rosebud::Ast::Node
using	Ptr = NodePtr
Public Types inherited from Sawyer::Tree::Vertex< Node >
using	UserBase = Node
	User's base class. More...
using	UserBasePtr = std::shared_ptr< UserBase >
	Pointer to user's base class. More...
using	TraversalEvent = Sawyer::Tree::TraversalEvent
	Alias for traversal events. More...

Public Member Functions
bool	printError (const FilePtr &file) const
	Print an error message for the top of the stack if there's something wrong with it. More...
void	emitOpen (std::ostream &)
	Emit all control flow directives in this stack. More...
void	emitClose (std::ostream &)
	Emit matching #endif for all control flow directives in this stack. More...
Public Member Functions inherited from Rosebud::Ast::Node
template<class T >
std::shared_ptr< T >	findAncestor ()
Public Member Functions inherited from Sawyer::Tree::Vertex< Node >
UserBasePtr	pointer ()
	Returns a shared pointer to this vertex. More...
std::shared_ptr< T >	isa ()
	Tests whether this object is a certain type. More...
auto	traverseReverse (const Visitor &visitor)
	Traverse in reverse direction from children to parents. More...
auto	traverse (const Visitor &visitor)
	Traverse in forward direction from parents to children. More...
auto	traversePre (const Visitor &visitor)
	Pre-order forward traversal. More...
auto	traversePost (const Visitor &visitor)
	Post-order forward traversal. More...
std::shared_ptr< T >	findFirstAncestor ()
	Traversal that finds the closest ancestor of type T or derived from T. More...
std::shared_ptr< T >	findLastAncestor ()
	Traversal that finds the farthest ancestor of type T or derived from T. More...
std::vector< std::shared_ptr< T > >	findDescendants ()
	Traversal that finds all the descendants of a particular type. More...
UserBasePtr	child (size_t i) const
	Returns the pointer for a child. More...
size_t	nChildren () const
	Returns the number of children. More...

Static Public Member Functions
static Ptr	instance ()
	Allocating constructor. More...
static Type	type (const std::string &directive)
	Type of directive. More...
static bool	process (const FilePtr &, const Token &directive, Stack &runningStack)
	Adjust the stack based on the C preprocessor directive. More...

Public Attributes
Stack	stack
	The stack of nested conditional compilation directives. More...
Public Attributes inherited from Sawyer::Tree::Vertex< Node >
ReverseEdge	parent
	Pointer to the parent in the tree. More...
EdgeBase *	treeEdges_

Protected Member Functions
	CppStack ()
	Default constructor used only by derived classes. More...
Protected Member Functions inherited from Sawyer::Tree::Vertex< Node >
virtual void	destructorHelper ()

Member Typedef Documentation

using Rosebud::Ast::CppStack::Ptr = CppStackPtr

Shared-ownership pointer.

Definition at line 133 of file Ast.h.

using Rosebud::Ast::CppStack::Level = std::list<Directive>

The CPP directives that belong to the same level.

E.g., a matching #if, #elif, and #else. The first element of the pair indicates the type of directive in the first element of the list. The list is never empty.

Definition at line 154 of file Ast.h.

using Rosebud::Ast::CppStack::Stack = std::vector<Level>

A stack of nested conditional compilation directives.

The earlier entries enclose the later entries.

Definition at line 159 of file Ast.h.

Member Enumeration Documentation

enum Rosebud::Ast::CppStack::Type

strong

Type of CPP directive.

Enumerator
IF	#if, #ifdef, or #ifndef.
ELSE	#else or #elif
END	#endif
OTHER	Not a conditional compilation directive.

Definition at line 136 of file Ast.h.

Constructor & Destructor Documentation

Rosebud::Ast::CppStack::CppStack ( )

protected

Default constructor used only by derived classes.

Member Function Documentation

static Ptr Rosebud::Ast::CppStack::instance ( )

static

Allocating constructor.

static Type Rosebud::Ast::CppStack::type ( const std::string &  directive )

static

Type of directive.

static bool Rosebud::Ast::CppStack::process ( const FilePtr &  , const Token &  directive, Stack &  runningStack  )

static

Adjust the stack based on the C preprocessor directive.

Returns true if the stack was adjusted, false otherwise.

bool Rosebud::Ast::CppStack::printError

(

const FilePtr &

file

)

const

Print an error message for the top of the stack if there's something wrong with it.

Returns true if an error was printed.

void Rosebud::Ast::CppStack::emitOpen

(

std::ostream &

)

Emit all control flow directives in this stack.

void Rosebud::Ast::CppStack::emitClose

(

std::ostream &

)

Emit matching #endif for all control flow directives in this stack.

Member Data Documentation

Stack Rosebud::Ast::CppStack::stack

The stack of nested conditional compilation directives.

Definition at line 163 of file Ast.h.

---

The documentation for this class was generated from the following file:

• Ast.h
