Sawyer::Message::Destination Class Reference

Description

Base class for all types of message destinations.

This is the base class for all nodes in the plumbing lattice.

Definition at line 609 of file Message.h.

#include <Sawyer/Message.h>

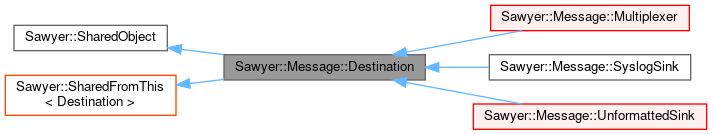

Inheritance diagram for Sawyer::Message::Destination:

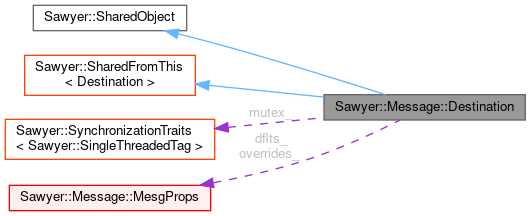

Collaboration diagram for Sawyer::Message::Destination:

Public Member Functions
virtual void	bakeDestinations (const MesgProps &, BakedDestinations &baked)
	Bakes message properties according to the plumbing lattice.
virtual void	post (const Mesg &, const MesgProps &bakedProperties)=0
	Causes a message to be emitted.
MesgProps	mergePropertiesNS (const MesgProps &props)
	Merge properties of this lattice node into the specified properties.
const MesgProps &	defaultPropertiesNS () const
	Default values for message properties.
MesgProps &	defaultPropertiesNS ()
	Default values for message properties.
const MesgProps &	overridePropertiesNS () const
	Overrides message properties.
MesgProps &	overridePropertiesNS ()
	Overrides message properties.
Public Member Functions inherited from Sawyer::SharedObject
	SharedObject ()
	Default constructor.
	SharedObject (const SharedObject &)
	Copy constructor.
virtual	~SharedObject ()
	Virtual destructor.
SharedObject &	operator= (const SharedObject &)
	Assignment.
Public Member Functions inherited from Sawyer::SharedFromThis< Destination >
SharedPointer< Destination >	sharedFromThis ()
	Create a shared pointer from this.
SharedPointer< const Destination >	sharedFromThis () const
	Create a shared pointer from this.

Protected Attributes
Sawyer::SynchronizationTraits< Sawyer::SingleThreadedTag >::RecursiveMutex	mutex_
	Mutex protecting data members here and in subclasses.
MesgProps	dflts_
	Default properties merged into each incoming message.
MesgProps	overrides_
	Override properties applied to incoming message.

Constructor & Destructor Documentation

Destination()

Sawyer::Message::Destination::Destination ( )

inlineprotected

Definition at line 615 of file Message.h.

~Destination()

virtual Sawyer::Message::Destination::~Destination ( )

inlinevirtual

Definition at line 617 of file Message.h.

Member Function Documentation

defaultPropertiesNS() [1/2]

const MesgProps & Sawyer::Message::Destination::defaultPropertiesNS ( ) const

inline

Default values for message properties.

Any message property that has no value coming from a higher layer in the plumbing lattice will be set to the default value if one is defined.

Thread safety: Not thread safe.

Definition at line 627 of file Message.h.

defaultPropertiesNS() [2/2]

MesgProps & Sawyer::Message::Destination::defaultPropertiesNS ( )

inline

Default values for message properties.

Any message property that has no value coming from a higher layer in the plumbing lattice will be set to the default value if one is defined.

Thread safety: Not thread safe.

Definition at line 628 of file Message.h.

overridePropertiesNS() [1/2]

const MesgProps & Sawyer::Message::Destination::overridePropertiesNS ( ) const

inline

Overrides message properties.

Any overriding property value that is defined will override the value coming from a higher layer in the plumbing lattice.

Thread safety: Not thread safe.

Definition at line 639 of file Message.h.

overridePropertiesNS() [2/2]

MesgProps & Sawyer::Message::Destination::overridePropertiesNS ( )

inline

Overrides message properties.

Any overriding property value that is defined will override the value coming from a higher layer in the plumbing lattice.

Thread safety: Not thread safe.

Definition at line 640 of file Message.h.

bakeDestinations()

virtual void Sawyer::Message::Destination::bakeDestinations ( const MesgProps &  , BakedDestinations &  baked  )

virtual

Bakes message properties according to the plumbing lattice.

The given message properties are applied to the plumbing lattice rooted at this Destination, adjusted according to the default and override properties at this node of the lattice and all lower nodes. The property values at the bottom nodes of the lattice are appended to the baked argument.

Thread safety: All implementations must be thread-safe.

Reimplemented in Sawyer::Message::Multiplexer, and Sawyer::Message::Filter.

post()

virtual void Sawyer::Message::Destination::post ( const Mesg &  , const MesgProps &  bakedProperties  )

pure virtual

Causes a message to be emitted.

The bakedProperties argument is one of the values returned by the bakeDestinations method.

Implemented in Sawyer::Message::Multiplexer, Sawyer::Message::FdSink, Sawyer::Message::FileSink, Sawyer::Message::StreamSink, and Sawyer::Message::SyslogSink.

mergePropertiesNS()

MesgProps Sawyer::Message::Destination::mergePropertiesNS

(

const MesgProps &

props

)

Merge properties of this lattice node into the specified properties.

Any property in props that is not set will be set to this node's default value for the property (if any). Any override property defined for this node will override the value (or lack of value) in props. The merged result is returned.

Thread safety: Not thread safe.

Member Data Documentation

mutex_

Sawyer::SynchronizationTraits<Sawyer::SingleThreadedTag>::RecursiveMutex Sawyer::Message::Destination::mutex_

mutableprotected

Mutex protecting data members here and in subclasses.

Definition at line 611 of file Message.h.

dflts_

MesgProps Sawyer::Message::Destination::dflts_

protected

Default properties merged into each incoming message.

Definition at line 612 of file Message.h.

overrides_

MesgProps Sawyer::Message::Destination::overrides_

protected

Override properties applied to incoming message.

Definition at line 613 of file Message.h.

---

The documentation for this class was generated from the following file:

• Message.h
