Description

Base class for debuggers.

This defines the interface and common operations for debuggers.

Definition at line 19 of file Debugger/Base.h.

#include <Rose/BinaryAnalysis/Debugger/Base.h>

Inheritance diagram for Rose::BinaryAnalysis::Debugger::Base:

[legend]

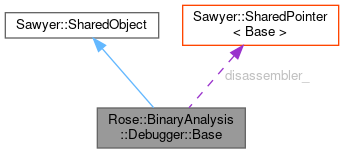

Collaboration diagram for Rose::BinaryAnalysis::Debugger::Base:

[legend]

Public Types
using	Ptr = Debugger::Ptr
	Shared ownership pointer. More...

Public Member Functions
virtual bool	isAttached ()=0
	Tests whether this debugger is attached to a specimen. More...

virtual void	detach ()=0
	Detach from a specimen. More...

virtual void	terminate ()=0
	Terminate the specimen. More...

virtual std::vector< ThreadId >	threadIds ()=0
	List of subordinate threads. More...

virtual void	setBreakPoint (const AddressInterval &)=0
	Set breakpoints. More...

virtual void	clearBreakPoint (const AddressInterval &)=0
	Remove breakpoints. More...

virtual void	clearBreakPoints ()=0
	Remove all breakpoints. More...

virtual void	singleStep (ThreadId)=0
	Execute one machine instruction. More...

virtual void	runToBreakPoint (ThreadId)=0
	Run until the next breakpoint is reached. More...

virtual Sawyer::Container::BitVector	readRegister (ThreadId, RegisterDescriptor)=0
	Read subordinate register. More...

virtual size_t	readMemory (rose_addr_t va, size_t nBytes, uint8_t *buffer)=0
	Read subordinate memory. More...

virtual std::vector< uint8_t >	readMemory (rose_addr_t va, size_t nBytes)=0
	Read subordinate memory as an array of bytes. More...

virtual Sawyer::Container::BitVector	readMemory (rose_addr_t va, size_t nBytes, ByteOrder::Endianness order)=0
	Read subordinate memory as a bit vector. More...

virtual size_t	writeMemory (rose_addr_t va, size_t nBytes, const uint8_t *bytes)=0
	Writes some bytes to subordinate memory. More...

template<typename T >
void	writeMemory (rose_addr_t va, const T &value)
	Write subordinate memory. More...

virtual std::string	readCString (rose_addr_t va, size_t maxBytes=UNLIMITED)
	Read C-style NUL-terminated string from subordinate. More...

virtual bool	isTerminated ()=0
	Returns true if the subordinate terminated. More...

virtual std::string	howTerminated ()=0
	String describing how the subordinate process terminated. More...

virtual RegisterDictionaryPtr	registerDictionary ()
	Available registers. More...

virtual Disassembler::BasePtr	disassembler ()
	Disassembler. More...

virtual Sawyer::Container::Trace< rose_addr_t >	trace ()
	Run the program and return an execution trace. More...

template<class Filter >
Sawyer::Container::Trace< rose_addr_t >	trace (ThreadId tid, Filter &filter)
	Run the program and return an execution trace. More...


virtual void	executionAddress (ThreadId, rose_addr_t)
	Execution address. More...

virtual rose_addr_t	executionAddress (ThreadId)
	Execution address. More...


virtual void	writeRegister (ThreadId, RegisterDescriptor, const Sawyer::Container::BitVector &)=0
	Write subordinate register.

virtual void	writeRegister (ThreadId, RegisterDescriptor, uint64_t value)=0
	Write subordinate register.

Public Member Functions inherited from Sawyer::SharedObject
	SharedObject ()
	Default constructor. More...

	SharedObject (const SharedObject &)
	Copy constructor. More...

virtual	~SharedObject ()
	Virtual destructor. More...

SharedObject &	operator= (const SharedObject &)
	Assignment. More...

Protected Member Functions
	Base (const Base &)=delete

	Base (Base &&)=delete

Base &	operator= (const Base &)=delete

Base &	operator= (Base &&)=delete

Protected Attributes
Disassembler::BasePtr	disassembler_

Member Typedef Documentation

using Rose::BinaryAnalysis::Debugger::Base::Ptr = Debugger::Ptr

Shared ownership pointer.

Definition at line 22 of file Debugger/Base.h.

Member Function Documentation

virtual bool Rose::BinaryAnalysis::Debugger::Base::isAttached ( )

pure virtual

Tests whether this debugger is attached to a specimen.

Returns true if this debugger is debugging something, and false otherwise.

virtual void Rose::BinaryAnalysis::Debugger::Base::detach ( )

pure virtual

Detach from a specimen.

This debugger detaches from the specimen. Depending on the settings, the specimen might continue to run, or it might be terminated.

virtual void Rose::BinaryAnalysis::Debugger::Base::terminate ( )

pure virtual

Terminate the specimen.

If a specimen is attached, terminate it.

virtual std::vector<ThreadId> Rose::BinaryAnalysis::Debugger::Base::threadIds ( )

pure virtual

List of subordinate threads.

Get the list of thread IDs in the subordinate process.

virtual void Rose::BinaryAnalysis::Debugger::Base::executionAddress	(	ThreadId	,
		rose_addr_t
	)

virtual

Execution address.

This is the value of the so-called program counter. For instance, if the specimen is i386 then this is the value stored in the EIP register.

Referenced by trace().

virtual rose_addr_t Rose::BinaryAnalysis::Debugger::Base::executionAddress ( ThreadId )

virtual

Execution address.

This is the value of the so-called program counter. For instance, if the specimen is i386 then this is the value stored in the EIP register.

virtual void Rose::BinaryAnalysis::Debugger::Base::setBreakPoint ( const AddressInterval & )

pure virtual

Set breakpoints.

virtual void Rose::BinaryAnalysis::Debugger::Base::clearBreakPoint ( const AddressInterval & )

pure virtual

Remove breakpoints.

virtual void Rose::BinaryAnalysis::Debugger::Base::clearBreakPoints ( )

pure virtual

Remove all breakpoints.

virtual void Rose::BinaryAnalysis::Debugger::Base::singleStep ( ThreadId )

pure virtual

Execute one machine instruction.

Referenced by trace().

virtual void Rose::BinaryAnalysis::Debugger::Base::runToBreakPoint ( ThreadId )

pure virtual

Run until the next breakpoint is reached.

virtual Sawyer::Container::BitVector Rose::BinaryAnalysis::Debugger::Base::readRegister	(	ThreadId	,
		RegisterDescriptor
	)

pure virtual

Read subordinate register.

Some registers are wider than what can be easily represented on this architecture (e.g., x86 XMM registers are 128 bits), therefore return the result as a bit vector. If you want just the low-order 64 bits, invoke it like this:

uint64_t value = debugger->readRegister(RIP).toInteger();

virtual size_t Rose::BinaryAnalysis::Debugger::Base::readMemory	(	rose_addr_t	va,
		size_t	nBytes,
		uint8_t *	buffer
	)

pure virtual

Read subordinate memory.

Returns the number of bytes read.

virtual std::vector<uint8_t> Rose::BinaryAnalysis::Debugger::Base::readMemory	(	rose_addr_t	va,
		size_t	nBytes
	)

pure virtual

Read subordinate memory as an array of bytes.

If the read fails then a shorter buffer is returned.

virtual Sawyer::Container::BitVector Rose::BinaryAnalysis::Debugger::Base::readMemory	(	rose_addr_t	va,
		size_t	nBytes,
		ByteOrder::Endianness	order
	)

pure virtual

Read subordinate memory as a bit vector.

uint64_t value = debugger->readMemory(0x12345678, 4, ByteOrder::ORDER_LSB).toInteger();

virtual size_t Rose::BinaryAnalysis::Debugger::Base::writeMemory	(	rose_addr_t	va,
		size_t	nBytes,
		const uint8_t *	bytes
	)

pure virtual

Writes some bytes to subordinate memory.

Returns the number of bytes written.

Referenced by writeMemory().

template<typename T >

void Rose::BinaryAnalysis::Debugger::Base::writeMemory	(	rose_addr_t	va,
		const T &	value
	)

inline

Write subordinate memory.

Writes something to memory.

Definition at line 129 of file Debugger/Base.h.

References writeMemory().

virtual std::string Rose::BinaryAnalysis::Debugger::Base::readCString	(	rose_addr_t	va,
		size_t	maxBytes = `UNLIMITED`
	)

virtual

Read C-style NUL-terminated string from subordinate.

Reads up to maxBytes bytes from the subordinate or until an ASCII NUL character is read, concatenates all the characters (except the NUL) into a C++ string and returns it. The maxBytes includes the NUL terminator although the NUL terminator is not returned as part of the string.

virtual bool Rose::BinaryAnalysis::Debugger::Base::isTerminated ( )

pure virtual

Returns true if the subordinate terminated.

Referenced by trace().

virtual std::string Rose::BinaryAnalysis::Debugger::Base::howTerminated ( )

pure virtual

String describing how the subordinate process terminated.

virtual RegisterDictionaryPtr Rose::BinaryAnalysis::Debugger::Base::registerDictionary ( )

virtual

Available registers.

virtual Disassembler::BasePtr Rose::BinaryAnalysis::Debugger::Base::disassembler ( )

virtual

Disassembler.

virtual Sawyer::Container::Trace<rose_addr_t> Rose::BinaryAnalysis::Debugger::Base::trace ( )

virtual

Run the program and return an execution trace.

template<class Filter >

Sawyer::Container::Trace<rose_addr_t> Rose::BinaryAnalysis::Debugger::Base::trace	(	ThreadId	tid,
		Filter &	filter
	)

inline

Run the program and return an execution trace.

At each step along the execution, the filter functor is invoked and passed the current execution address. The return value of type FilterAction from the filter functor controls whether the address is appended to the trace and whether the tracing should continue.

Definition at line 162 of file Debugger/Base.h.

References Sawyer::Container::Trace< T, IndexTag >::append(), executionAddress(), Sawyer::BitFlags< E, V >::isClear(), Sawyer::BitFlags< E, V >::isSet(), isTerminated(), Rose::BinaryAnalysis::Debugger::REJECT, singleStep(), and Rose::BinaryAnalysis::Debugger::STOP.

The documentation for this class was generated from the following file:

Debugger/Base.h
