Rose::BinaryAnalysis::Disassembler::Exception Class Reference

Description

Exception thrown by the disassemblers.

Definition at line 19 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

#include <Rose/BinaryAnalysis/Disassembler/Exception.h>

Inheritance diagram for Rose::BinaryAnalysis::Disassembler::Exception:

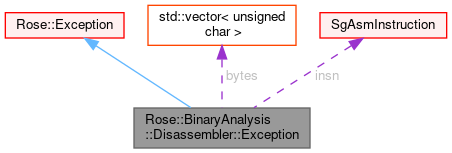

Collaboration diagram for Rose::BinaryAnalysis::Disassembler::Exception:

Public Member Functions
	Exception (const std::string &reason)
	A bare exception not bound to any particular instruction.
	Exception (const std::string &reason, rose_addr_t ip)
	An exception bound to a virtual address but no raw data or instruction.
	Exception (const std::string &reason, rose_addr_t ip, const SgUnsignedCharList &raw_data, size_t bit)
	An exception bound to a particular instruction being disassembled.
	Exception (const std::string &reason, SgAsmInstruction *)
	An exception bound to a particular instruction being assembled.
void	print (std::ostream &) const
Public Member Functions inherited from Rose::Exception
	Exception (const std::string &s)
	Construct an exception with an error message.

Public Attributes
rose_addr_t	ip
	Virtual address where failure occurred; zero if no associated instruction.
SgUnsignedCharList	bytes
	Bytes (partial) of failed disassembly, including byte at failure.
size_t	bit
	Bit offset in instruction byte sequence where disassembly failed (bit/8 is the index into the "bytes" list, while bit%8 is the bit within that byte.
SgAsmInstruction *	insn
	Instruction associated with an assembly error.

Constructor & Destructor Documentation

Exception() [1/3]

Rose::BinaryAnalysis::Disassembler::Exception::Exception ( const std::string &  reason )

inline

A bare exception not bound to any particular instruction.

Definition at line 22 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

Exception() [2/3]

Rose::BinaryAnalysis::Disassembler::Exception::Exception ( const std::string &  reason, rose_addr_t  ip  )

inline

An exception bound to a virtual address but no raw data or instruction.

Definition at line 27 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

Exception() [3/3]

Rose::BinaryAnalysis::Disassembler::Exception::Exception ( const std::string &  reason, rose_addr_t  ip, const SgUnsignedCharList &  raw_data, size_t  bit  )

inline

An exception bound to a particular instruction being disassembled.

Definition at line 32 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

~Exception()

Rose::BinaryAnalysis::Disassembler::Exception::~Exception ( ) throw ( )

inline

Definition at line 39 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

Member Data Documentation

ip

rose_addr_t Rose::BinaryAnalysis::Disassembler::Exception::ip

Virtual address where failure occurred; zero if no associated instruction.

Definition at line 44 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

bytes

SgUnsignedCharList Rose::BinaryAnalysis::Disassembler::Exception::bytes

Bytes (partial) of failed disassembly, including byte at failure.

Empty if the exception is not associated with a particular byte sequence, such as if an attempt was made to disassemble at an invalid address.

Definition at line 45 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

bit

size_t Rose::BinaryAnalysis::Disassembler::Exception::bit

Bit offset in instruction byte sequence where disassembly failed (bit/8 is the index into the "bytes" list, while bit%8 is the bit within that byte.

Definition at line 48 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

insn

SgAsmInstruction* Rose::BinaryAnalysis::Disassembler::Exception::insn

Instruction associated with an assembly error.

Definition at line 50 of file Rose/BinaryAnalysis/Disassembler/Exception.h.

---

The documentation for this class was generated from the following file:

• Rose/BinaryAnalysis/Disassembler/Exception.h
