Description

Type of values manipulated by the MultiSemantics domain.

A multi-semantic value is a set of values, one from each of the subdomains, and a bit vector that indicates which values are valid. The bit vector is accessed by the RiscOperators and new values are created by those operators with appropriate validities, but the MultiSemantics domain doesn't otherwise modify the bit vector–that's up to the user-defined, inter-operation callbacks.

Individual sub-domain values can be queried from a multi-domain value with get_subvalue() using the ID returned by add_subdomain() when the sub-domain's RiscOperators were added to the multi-domain's RiscOperators.

Definition at line 84 of file MultiSemantics.h.

#include <Rose/BinaryAnalysis/InstructionSemantics/MultiSemantics.h>

Inheritance diagram for Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue:

[legend]

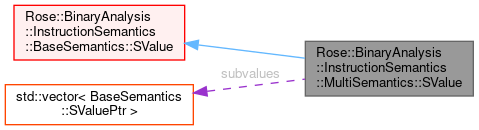

Collaboration diagram for Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue:

[legend]

Public Types
using	Super = BaseSemantics::SValue
	Base type.

using	Ptr = SValuePtr
	Shared-ownership pointer.

Public Types inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
using	Ptr = SValuePtr
	Shared-ownership pointer.

Public Member Functions
virtual BaseSemantics::SValuePtr	bottom_ (size_t nbits) const override
	Data-flow bottom value.

virtual BaseSemantics::SValuePtr	undefined_ (size_t nbits) const override
	Create a new undefined MultiSemantics value.

virtual BaseSemantics::SValuePtr	unspecified_ (size_t nbits) const override
	Create a new unspecified MultiSemantics value.

virtual BaseSemantics::SValuePtr	number_ (size_t nbits, uint64_t number) const override
	Create a MultiSemantics value holding a concrete value.

virtual SValuePtr	create_empty (size_t nbits) const
	Create a new MultiSemantics value with no valid subvalues.

virtual BaseSemantics::SValuePtr	copy (size_t=0) const override
	Create a new value from an existing value, changing the width if `new_width` is non-zero.

virtual Sawyer::Optional< BaseSemantics::SValuePtr >	createOptionalMerge (const BaseSemantics::SValuePtr &other, const BaseSemantics::MergerPtr &, const SmtSolverPtr &) const override
	Possibly create a new value by merging two existing values.

virtual bool	isBottom () const override
	Determines whether a value is a data-flow bottom.

virtual void	print (std::ostream &, BaseSemantics::Formatter &) const override
	Print a value to a stream using default format.

virtual void	hash (Combinatorics::Hasher &) const override
	Hash this semantic value.

virtual bool	may_equal (const BaseSemantics::SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const override
	Determines if two multidomain values might be equal.

virtual bool	must_equal (const BaseSemantics::SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const override
	Determines if two multidomain values must be equal.

virtual void	set_width (size_t nbits) override
	Virtual API.

virtual bool	is_number () const override
	Determines if the value is a concrete number.

virtual uint64_t	get_number () const override
	Virtual API.

virtual bool	is_valid (size_t idx) const
	Returns true if a subdomain value is valid.

virtual void	invalidate (size_t idx)
	Removes a subdomain value and marks it as invalid.

virtual BaseSemantics::SValuePtr	get_subvalue (size_t idx) const
	Return a subdomain value.

virtual void	set_subvalue (size_t idx, const BaseSemantics::SValuePtr &value)
	Insert a subdomain value.

Public Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
virtual SValuePtr	boolean_ (bool value) const
	Create a new, Boolean value.

SValuePtr	createMerged (const SValuePtr &other, const MergerPtr &merger, const SmtSolverPtr &solver) const
	Create a new value by merging two existing values.

size_t	nBits () const
	Property: value width.

bool	isConcrete () const
	Determines if the value is a concrete number.

Sawyer::Optional< uint64_t >	toUnsigned () const
	Converts a concrete value to a native unsigned integer.

Sawyer::Optional< int64_t >	toSigned () const
	Converts a concrete value to a native signed integer.

bool	mustEqual (const SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const
	Tests two values for equality.

bool	mayEqual (const SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const
	Tests two values for possible equality.

bool	isTrue () const
	Returns true if concrete non-zero.

bool	isFalse () const
	Returns true if concrete zero.

std::string	toString () const
	Render this symbolic expression as a string.

std::string	comment () const
	Property: Comment.

void	comment (const std::string &) const
	Property: Comment.

void	print (std::ostream &) const
	Print a value to a stream using default format.

WithFormatter	with_format (Formatter &fmt)
	Used for printing values with formatting.

WithFormatter	operator+ (Formatter &fmt)
	Used for printing values with formatting.

WithFormatter	operator+ (const std::string &linePrefix)
	Used for printing values with formatting.

virtual size_t	get_width () const
	Virtual API.

virtual std::string	get_comment () const
	Some subclasses support the ability to add comments to values.

virtual void	set_comment (const std::string &) const
	Some subclasses support the ability to add comments to values.

Public Member Functions inherited from Sawyer::SharedObject
	SharedObject ()
	Default constructor.

	SharedObject (const SharedObject &)
	Copy constructor.

virtual	~SharedObject ()
	Virtual destructor.

SharedObject &	operator= (const SharedObject &)
	Assignment.

Public Member Functions inherited from Sawyer::SharedFromThis< SValue >
SharedPointer< SValue >	sharedFromThis ()
	Create a shared pointer from `this`.

SharedPointer< const SValue >	sharedFromThis () const
	Create a shared pointer from `this`.

Static Public Member Functions
static SValuePtr	instance ()
	Construct a prototypical value.

static SValuePtr	promote (const BaseSemantics::SValuePtr &)
	Promote a base value to a MultiSemantics value.

Static Public Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
static SValuePtr	promote (const SValuePtr &x)

Static Public Member Functions inherited from Sawyer::SmallObject
static SynchronizedPoolAllocator &	poolAllocator ()
	Return the pool allocator for this class.

static void *	operator new (size_t size)

static void	operator delete (void *ptr, size_t size)

Protected Types
typedef std::vector< BaseSemantics::SValuePtr >	Subvalues

Protected Member Functions
	SValue (size_t nbits)

	SValue (const SValue &other)

void	init (const SValue &other)

Protected Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
	SValue (size_t nbits)

	SValue (const SValue &other)

Protected Attributes
Subvalues	subvalues

Protected Attributes inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
size_t	width

Member Typedef Documentation

◆ Super

using Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::Super = BaseSemantics::SValue

Base type.

Definition at line 87 of file MultiSemantics.h.

◆ Ptr

using Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::Ptr = SValuePtr

Shared-ownership pointer.

Definition at line 90 of file MultiSemantics.h.

◆ Subvalues

typedef std::vector<BaseSemantics::SValuePtr> Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::Subvalues

protected

Definition at line 93 of file MultiSemantics.h.

Member Function Documentation

◆ instance()

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::instance ( )

static

Construct a prototypical value.

Prototypical values are only used for their virtual constructors.

◆ promote()

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::promote ( const BaseSemantics::SValuePtr & )

static

Promote a base value to a MultiSemantics value.

The value v must have a MultiSemantics::SValue dynamic type.

Referenced by Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::RiscOperators::svalue_empty().

◆ bottom_()

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::bottom_ ( size_t nBits ) const

overridevirtual

Data-flow bottom value.

Returns a new value that represents bottom in a data-flow analysis. If a semantic domain can represent a bottom value then the isBottom predicate is true when invoked on this method's return value. If a semantic domain cannot support a bottom value, then it may return some other value.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ undefined_()

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::undefined_ ( size_t nbits ) const

overridevirtual

Create a new undefined MultiSemantics value.

The returned value is constructed by calling the virtual undefined_() for each subdomain value in "this". If you want a multidomain value that has no valid subvalues, then use the create_empty() method instead.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ unspecified_()

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::unspecified_ ( size_t nbits ) const

overridevirtual

Create a new unspecified MultiSemantics value.

The returned value is constructed by calling the virtual unspecified_() for each subdomain value in "this". If you want a multidomain value that has no valid subvalues, then use the create_empty() method instead.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ number_()

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::number_	(	size_t	nbits,
		uint64_t	number
	)		const

overridevirtual

Create a MultiSemantics value holding a concrete value.

The returned value is constructed by calling the virtual number_() method for each subdomain value in "this".

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ create_empty()

virtual SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::create_empty ( size_t nbits ) const

virtual

Create a new MultiSemantics value with no valid subvalues.

The caller will probably construct a value iteratively by invoking set_subvalue() one or more times.

◆ copy()

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::copy ( size_t new_width = 0 ) const

overridevirtual

Create a new value from an existing value, changing the width if new_width is non-zero.

Increasing the width logically adds zero bits to the most significant side of the value; decreasing the width logically removes bits from the most significant side of the value.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ createOptionalMerge()

virtual Sawyer::Optional< BaseSemantics::SValuePtr > Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::createOptionalMerge	(	const BaseSemantics::SValuePtr &	other,
		const BaseSemantics::MergerPtr &	merger,
		const SmtSolverPtr &	solver
	)		const

overridevirtual

Possibly create a new value by merging two existing values.

This method optionally returns a new semantic value as the data-flow merge of this and other. If the two inputs are "equal" in some sense of the dataflow implementation then nothing is returned, otherwise a new value is returned. Typical usage is like this:

 if (SValuePtr merged = v1->createOptionalMerge(v2).orDefault()) {
     std::cout <<"v1 and v2 were merged to " <<*merged <<"\n";
 } else {
     std::cout <<"no merge is necessary\n";
 }

 or

@code
 SValuePtr merge;
 if (v1->createOptionalMerge(v2).assignTo(merged)) {
     std::cout <<"v1 and v2 were merged to " <<*merged <<"\n";
 } else {
     std::cout <<"v1 and v2 are equal in some sense (no merge necessary)\n";
 }

If you always want a copy regardless of whether the merge is necessary, then use the createMerged convenience function instead.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ isBottom()

virtual bool Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::isBottom ( ) const

overridevirtual

Determines whether a value is a data-flow bottom.

Returns true if this value represents a bottom value for data-flow analysis. Any RiscOperation performed on an operand whose isBottom predicate returns true will itself return a bottom value. This includes operations like "xor x x" which would normally return zero.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ print()

virtual void Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::print	(	std::ostream &	,
		BaseSemantics::Formatter &
	)		const

overridevirtual

Print a value to a stream using default format.

The value will normally occupy a single line and not contain leading space or line termination. See also, with_format().

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ hash()

virtual void Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::hash ( Combinatorics::Hasher & ) const

overridevirtual

Hash this semantic value.

Hashes the value by appending it to the specified hasher.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ may_equal()

virtual bool Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::may_equal	(	const BaseSemantics::SValuePtr &	other,
		const SmtSolverPtr &	solver = `SmtSolverPtr()`
	)		const

overridevirtual

Determines if two multidomain values might be equal.

Two multidomain values are equal if, for any subdomain for which both values are valid, they are equal in the subdomain.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ must_equal()

virtual bool Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::must_equal	(	const BaseSemantics::SValuePtr &	other,
		const SmtSolverPtr &	solver = `SmtSolverPtr()`
	)		const

overridevirtual

Determines if two multidomain values must be equal.

Two multidomain values are equal if and only if there is at least one subdomain where both values are valid, and for all subdomains where both values are valid, their must_equal() relationship is satisfied.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ set_width()

virtual void Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::set_width ( size_t nbits )

overridevirtual

Virtual API.

See nBits.

Reimplemented from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ is_number()

virtual bool Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::is_number ( ) const

overridevirtual

Determines if the value is a concrete number.

In the MultiSemantics domain, a value is a concrete number if and only if it has at least one valid subdomain value and all valid subdomain values are concrete numbers, and all are the same concrete number.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ get_number()

virtual uint64_t Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::get_number ( ) const

overridevirtual

Virtual API.

See toUnsigned and toSigned.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

◆ is_valid()

virtual bool Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::is_valid ( size_t idx ) const

virtual

Returns true if a subdomain value is valid.

A subdomain value is valid if the specified index has a non-null SValue pointer. It is permissible to call this with an index that is out of range (false is returned in that case).

◆ invalidate()

virtual void Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::invalidate ( size_t idx )

virtual

Removes a subdomain value and marks it as invalid.

It is permissible to call this with an index that does not correspond to a valid subdomain value.

◆ get_subvalue()

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::get_subvalue ( size_t idx ) const

virtual

Return a subdomain value.

The subdomain must be valid according to is_valid().

◆ set_subvalue()

virtual void Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::set_subvalue	(	size_t	idx,
		const BaseSemantics::SValuePtr &	value
	)

virtual

Insert a subdomain value.

The specified value is inserted at the specified index. No attempt is made to validate whether the value has a valid dynamic type for that slot. If the value is not a null pointer, then is_valid() will return true after this call.

Member Data Documentation

◆ subvalues

Subvalues Rose::BinaryAnalysis::InstructionSemantics::MultiSemantics::SValue::subvalues

protected

Definition at line 94 of file MultiSemantics.h.

The documentation for this class was generated from the following file:

MultiSemantics.h

Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Member Typedef Documentation

◆ Super

◆ Ptr

◆ Subvalues

Member Function Documentation

◆ instance()

◆ promote()

◆ bottom_()

◆ undefined_()

◆ unspecified_()

◆ number_()

◆ create_empty()

◆ copy()

◆ createOptionalMerge()

◆ isBottom()

◆ print()

◆ hash()

◆ may_equal()

◆ must_equal()

◆ set_width()

◆ is_number()

◆ get_number()

◆ is_valid()

◆ invalidate()

◆ get_subvalue()

◆ set_subvalue()

Member Data Documentation

◆ subvalues
