Description

Description of one pointer.

Definition at line 174 of file PointerDetection.h.

#include <Rose/BinaryAnalysis/PointerDetection.h>

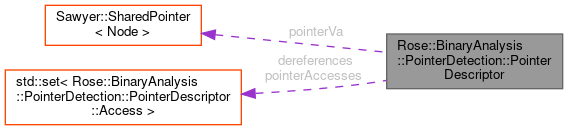

Collaboration diagram for Rose::BinaryAnalysis::PointerDetection::PointerDescriptor:

[legend]

Classes
struct	Access
	Description of accessing memory. More...

Public Types
enum	Direction { READ , WRITE }
	Information about how a pointer is dereferenced. More...

Public Member Functions
	PointerDescriptor (const SymbolicExpression::Ptr &pointerVa, size_t nBits, rose_addr_t insnVa, Direction dir, const SymbolicExpression::Ptr &pointerValue)

Public Attributes
SymbolicExpression::Ptr	pointerVa
	Symbolic address where pointer variable is stored.

size_t	nBits
	Width of pointer in bits.

std::set< Access >	pointerAccesses
	Where pointer variable's value was accessed.

std::set< Access >	dereferences
	Where pointer was dereferenced.

Member Enumeration Documentation

◆ Direction

enum Rose::BinaryAnalysis::PointerDetection::PointerDescriptor::Direction

Information about how a pointer is dereferenced.

Enumerator
READ	Pointer is used to read from memory.
WRITE	Pointer is used to write to memory.

Definition at line 177 of file PointerDetection.h.

Constructor & Destructor Documentation

◆ PointerDescriptor()

Rose::BinaryAnalysis::PointerDetection::PointerDescriptor::PointerDescriptor	(	const SymbolicExpression::Ptr &	pointerVa,
		size_t	nBits,
		rose_addr_t	insnVa,
		Direction	dir,
		const SymbolicExpression::Ptr &	pointerValue
	)

inline

Definition at line 209 of file PointerDetection.h.

Member Data Documentation

◆ pointerVa

SymbolicExpression::Ptr Rose::BinaryAnalysis::PointerDetection::PointerDescriptor::pointerVa

Symbolic address where pointer variable is stored.

Definition at line 204 of file PointerDetection.h.

◆ nBits

size_t Rose::BinaryAnalysis::PointerDetection::PointerDescriptor::nBits

Width of pointer in bits.

Definition at line 205 of file PointerDetection.h.

◆ pointerAccesses

std::set<Access> Rose::BinaryAnalysis::PointerDetection::PointerDescriptor::pointerAccesses

Where pointer variable's value was accessed.

Definition at line 206 of file PointerDetection.h.

◆ dereferences

std::set<Access> Rose::BinaryAnalysis::PointerDetection::PointerDescriptor::dereferences

Where pointer was dereferenced.

Definition at line 207 of file PointerDetection.h.

The documentation for this class was generated from the following file:

PointerDetection.h
