Rosebud::Ast::Definition Class Reference

Description

Base class for class and property definitions.

Definition at line 254 of file Ast.h.

#include <Rosebud/Ast.h>

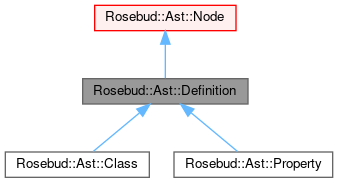

Inheritance diagram for Rosebud::Ast::Definition:
Inheritance graph
[legend]

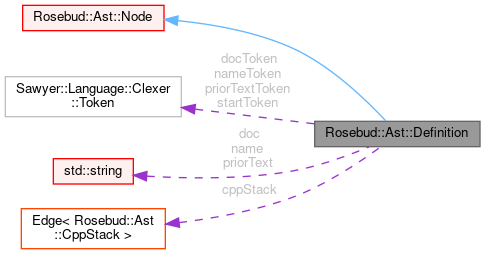

Collaboration diagram for Rosebud::Ast::Definition:
Collaboration graph
[legend]

Public Types

using Ptr = DefinitionPtr
 Shared-ownership pointer.

- Public Types inherited from Rosebud::Ast::Node
using Ptr = NodePtr

- Public Types inherited from Sawyer::Tree::Vertex< Node >
using UserBase = Node
 User's base class.

using UserBasePtr = std::shared_ptr< UserBase >
 Pointer to user's base class.

using TraversalEvent = Sawyer::Tree::TraversalEvent
 Alias for traversal events.


Public Member Functions

AttributePtr findAttribute (const std::string &fqName)
 Finds an attribute with the specified fully qualified name.

- Public Member Functions inherited from Rosebud::Ast::Node
template<class T >
std::shared_ptr< T > findAncestor ()

- Public Member Functions inherited from Sawyer::Tree::Vertex< Node >
UserBasePtr pointer ()
 Returns a shared pointer to this vertex.

std::shared_ptr< T > isa ()
 Tests whether this object is a certain type.

auto traverseReverse (const Visitor &visitor)
 Traverse in reverse direction from children to parents.

auto traverse (const Visitor &visitor)
 Traverse in forward direction from parents to children.

auto traversePre (const Visitor &visitor)
 Pre-order forward traversal.

auto traversePost (const Visitor &visitor)
 Post-order forward traversal.

std::shared_ptr< T > findFirstAncestor ()
 Traversal that finds the closest ancestor of type T or derived from T.

std::shared_ptr< T > findLastAncestor ()
 Traversal that finds the farthest ancestor of type T or derived from T.

std::vector< std::shared_ptr< T > > findDescendants ()
 Traversal that finds all the descendants of a particular type.

UserBasePtr child (size_t i) const
 Returns the pointer for a child.

size_t nChildren () const
 Returns the number of children.


Public Attributes

Token startToken
 Token at the start of the definition.

std::string name
 Unqualified name for the definition.

Token nameToken
 Token for the definition's unqualified name.

std::string doc
 Doxygen documentation comment.

Token docToken
 Token associated with the Doxygen comment.

Edge< CppStackcppStack
 C preprocessor pending conditional compilation directives.

std::string priorText
 Input text before the definition.

Token priorTextToken
 Token describing the location of the prior text.

EdgeVector< Attributeattributes
 Non-null pointer to the list of attributes controlling this property.

- Public Attributes inherited from Sawyer::Tree::Vertex< Node >
ReverseEdge parent
 Pointer to the parent in the tree.


Protected Member Functions

 Definition ()
 Default constructor used only by derived classes.

- Protected Member Functions inherited from Sawyer::Tree::Vertex< Node >
virtual void destructorHelper ()


Member Typedef Documentation

◆ Ptr

Shared-ownership pointer.

Definition at line 257 of file Ast.h.

Member Function Documentation

◆ findAttribute()

AttributePtr Rosebud::Ast::Definition::findAttribute ( const std::string &  fqName)

Finds an attribute with the specified fully qualified name.

Returns a non-null pointer to the attribute if found, null otherwise.

Member Data Documentation

◆ startToken

Token Rosebud::Ast::Definition::startToken

Token at the start of the definition.

Definition at line 261 of file Ast.h.

◆ name

std::string Rosebud::Ast::Definition::name

Unqualified name for the definition.

Definition at line 264 of file Ast.h.

◆ nameToken

Token Rosebud::Ast::Definition::nameToken

Token for the definition's unqualified name.

Definition at line 267 of file Ast.h.

◆ doc

std::string Rosebud::Ast::Definition::doc

Doxygen documentation comment.

The doxygen comment is a multi-line comment string. The first line may contain spaces for leading indentation.

Definition at line 272 of file Ast.h.

◆ docToken

Token Rosebud::Ast::Definition::docToken

Token associated with the Doxygen comment.

Even though the doc string contains leading spaces, the token does not.

Definition at line 277 of file Ast.h.

◆ cppStack

Edge<CppStack> Rosebud::Ast::Definition::cppStack

C preprocessor pending conditional compilation directives.

This is a non-null child that contains information about the CPP conditional compilation directives that have been started but not yet closed.

Definition at line 283 of file Ast.h.

◆ priorText

std::string Rosebud::Ast::Definition::priorText

Input text before the definition.

This is all the input text that appears before this definition and is not associated with any other definition. If there is a docToken, then its text is excluded from the prior text. Furthermore, white space at the ends of lines is removed, consecutive blank lines are replaced with a single blank line, and leading and trailing blank lines are removed.

Definition at line 290 of file Ast.h.

◆ priorTextToken

Token Rosebud::Ast::Definition::priorTextToken

Token describing the location of the prior text.

This is a generated token of type TOK_OTHER that encloses the priorText value.

Definition at line 295 of file Ast.h.

◆ attributes

EdgeVector<Attribute> Rosebud::Ast::Definition::attributes

Non-null pointer to the list of attributes controlling this property.

Definition at line 298 of file Ast.h.


The documentation for this class was generated from the following file:
