Description

This class represents template argument within the use of a template to build an instantiation.

The template argument is used for the instatiation of templates. They can also have default values and not be specified explicitly.

Definition at line 51254 of file Cxx_Grammar.h.

Inheritance diagram for SgTemplateArgument:

[legend]

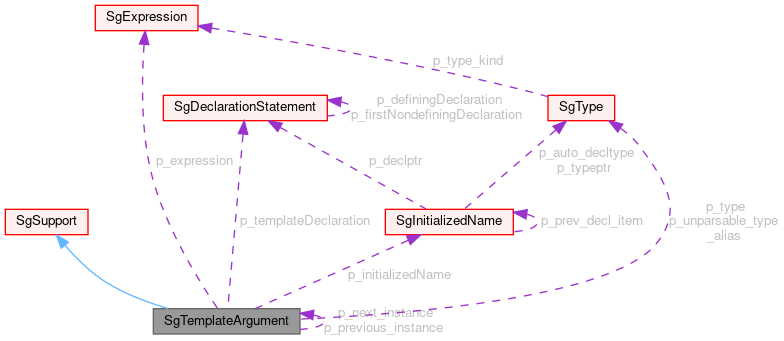

Collaboration diagram for SgTemplateArgument:

[legend]

Public Types
enum	template_argument_enum { argument_undefined = 0 , type_argument = 1 , nontype_argument = 2 , template_template_argument = 3 , start_of_pack_expansion_argument = 4 }

enum	{ static_variant = V_SgTemplateArgument }
	static variant value More...

typedef SgSupport	base_node_type

Public Types inherited from SgSupport
enum	{ static_variant = V_SgSupport }
	static variant value More...

typedef SgNode	base_node_type

Public Types inherited from SgNode
enum	{ static_variant = V_SgNode }
	static variant value More...

enum	{ static_variant = V_SgNode }
	static variant value More...

Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const override

void	post_construction_initialization () override
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

	SgTemplateArgument (SgType *parameter, bool explicitlySpecified)
	Constructor used with types.

	SgTemplateArgument (SgExpression *parameter, bool explicitlySpecified)
	Constructor used with expressions.

	SgTemplateArgument (SgTemplateDeclaration *parameter, bool explicitlySpecified)

	SgTemplateArgument (bool explicitlySpecified)

SgName	get_mangled_name (void) const
	Returns the template argument in mangled form.

SgScopeStatement *	get_scope () const
	Some template arguments have an associated scope (e.g. named types, and template template arguments)

virtual void	fixupCopy_scopes (SgNode *copy, SgCopyHelp &help) const override

virtual void	fixupCopy_symbols (SgNode *copy, SgCopyHelp &help) const override

virtual void	fixupCopy_references (SgNode *copy, SgCopyHelp &help) const override

SgName	get_qualified_name_prefix () const
	This function generates the qualified name prefix to be used with the template argument type.

SgName	get_qualified_name_prefix_for_type () const
	This function generates the qualified name prefix to be used with the named declaration (only applied to restricted set of declarations where name qualification can be used).

int	get_name_qualification_length () const

void	set_name_qualification_length (int name_qualification_length)

bool	get_type_elaboration_required () const

void	set_type_elaboration_required (bool type_elaboration_required)

bool	get_global_qualification_required () const

void	set_global_qualification_required (bool global_qualification_required)

bool	get_requiresGlobalNameQualificationOnType () const

void	set_requiresGlobalNameQualificationOnType (bool requiresGlobalNameQualificationOnType)

int	get_name_qualification_length_for_type () const

void	set_name_qualification_length_for_type (int name_qualification_length_for_type)

bool	get_type_elaboration_required_for_type () const

void	set_type_elaboration_required_for_type (bool type_elaboration_required_for_type)

bool	get_global_qualification_required_for_type () const

void	set_global_qualification_required_for_type (bool global_qualification_required_for_type)

void	display (const std::string &label) const

std::string	unparseToStringSupport ()

std::string	template_argument_kind () const

bool	isTemplateArgumentFromAnonymousClass () const

void	outputTemplateArgument (bool &skip_unparsing, bool &stop_unparsing)

virtual std::string	class_name () const override
	returns a string representing the class name

virtual VariantT	variantT () const override
	returns new style SageIII enum values

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

virtual std::vector< SgNode * >	get_traversalSuccessorContainer () override
	container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

virtual std::vector< std::string >	get_traversalSuccessorNamesContainer () override
	container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

virtual size_t	get_numberOfTraversalSuccessors () override
	return number of children in the traversal successor list

virtual SgNode *	get_traversalSuccessorByIndex (size_t idx) override
	index-based access to traversal successors by index number

virtual size_t	get_childIndex (SgNode *child) override
	index-based access to traversal successors by child node

virtual RTIReturnType	roseRTI () override
	return C++ Runtime-Time-Information

virtual const char *	sage_class_name () const override

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

virtual void	accept (ROSE_VisitorPattern &visitor) override
	support for the classic visitor pattern done in GoF

virtual bool	isInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual void	checkDataMemberPointersIfInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const override
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *) override
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

virtual long	getChildIndex (SgNode *childNode) const override
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

	SgTemplateArgument (const SgTemplateArgumentStorageClass &source)
	IR node constructor to support AST File I/O.

SgTemplateArgument *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

SgTemplateArgument::template_argument_enum	get_argumentType () const
	This function returns argumentType.

void	set_argumentType (SgTemplateArgument::template_argument_enum argumentType)
	This function sets argumentType.

bool	get_isArrayBoundUnknownType () const
	This function returns isArrayBoundUnknownType.

void	set_isArrayBoundUnknownType (bool isArrayBoundUnknownType)
	This function sets isArrayBoundUnknownType.

SgType *	get_type () const
	This function returns argumentType.

void	set_type (SgType *type)

SgType *	get_unparsable_type_alias () const

void	set_unparsable_type_alias (SgType *unparsable_type_alias)

SgExpression *	get_expression () const
	This function returns argumentExpression.

void	set_expression (SgExpression *expression)

SgDeclarationStatement *	get_templateDeclaration () const

void	set_templateDeclaration (SgDeclarationStatement *templateDeclaration)

SgInitializedName *	get_initializedName () const

void	set_initializedName (SgInitializedName *initializedName)

bool	get_explicitlySpecified () const
	This function returns explicitlySpecified.

void	set_explicitlySpecified (bool explicitlySpecified)
	This function sets explicitlySpecified.

SgTemplateArgument *	get_previous_instance () const

void	set_previous_instance (SgTemplateArgument *previous_instance)

SgTemplateArgument *	get_next_instance () const

void	set_next_instance (SgTemplateArgument *next_instance)

bool	get_is_pack_element () const

void	set_is_pack_element (bool is_pack_element)

virtual	~SgTemplateArgument ()
	This is the destructor.

	SgTemplateArgument (SgTemplateArgument::template_argument_enum argumentType=argument_undefined, bool isArrayBoundUnknownType=false, SgType type=nullptr, SgExpression expression=nullptr, SgDeclarationStatement *templateDeclaration=nullptr, bool explicitlySpecified=true)

Public Member Functions inherited from SgSupport
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgSupport (const SgSupportStorageClass &source)
	IR node constructor to support AST File I/O.

SgSupport *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

virtual	~SgSupport ()
	This is the destructor.

	SgSupport ()
	This is the constructor.

Public Member Functions inherited from SgNode
void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

int	variant () const
	Older version function returns enum value "NODE".

virtual void	addNewAttribute (std::string s, AstAttribute *a)
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a)
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a)
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s)
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const
	Returns the number of attributes on this IR node.

virtual AstAttributeMechanism *	get_attributeMechanism () const
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

virtual void	set_attributeMechanism (AstAttributeMechanism *a)
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

virtual Sg_File_Info *	get_file_info (void) const
	File information containing filename, line number, column number, and if the SgNode is a part of a new transformation, etc.

virtual Sg_File_Info *	get_startOfConstruct (void) const
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

virtual	~SgNode ()
	This is the destructor.

	SgNode ()
	This is the constructor.

void *	operator new (size_t size)
	returns pointer to newly allocated IR node

void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)

void	operator delete (void *pointer)

void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.

SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.

void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST.

void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified.

bool	get_isModified () const
	Acess function for isModified flag.

bool	get_containsTransformation () const
	Acess function for containsTransformation flag.

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.

bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.

virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)

std::string	unparseToString () const

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

int	variant () const

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

virtual void	addNewAttribute (std::string s, AstAttribute *a)
	Add a new attribute represented by the named string.

virtual AstAttribute *	getAttribute (std::string s) const
	Returns attribute of name 's'.

virtual void	updateAttribute (std::string s, AstAttribute *a)
	Replace existing attribute of name 's' with new AstAttribute.

virtual void	setAttribute (std::string s, AstAttribute *a)
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

virtual void	removeAttribute (std::string s)
	Remove attribute of name 's' if present.

virtual bool	attributeExists (std::string s) const
	Tests if attribute of name 's' is present.

virtual int	numberOfAttributes () const
	Returns the number of attributes on this IR node.

virtual AstAttributeMechanism *	get_attributeMechanism () const
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.

virtual void	set_attributeMechanism (AstAttributeMechanism *a)
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.

virtual Sg_File_Info *	get_file_info (void) const
	File information containing filename, line number, column number, and if the SgNode is a part of a new transformation, etc.

virtual Sg_File_Info *	get_startOfConstruct (void) const
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).

virtual Sg_File_Info *	get_endOfConstruct (void) const
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).

VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.

VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.

virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.

virtual bool	cfgIsIndexInteresting (unsigned int index) const
	Determine whether a particular CFG node index is "interesting" for this kind of node.

virtual unsigned int	cfgFindChildIndex (SgNode *n)
	Find the index of n in this node's CFG children.

virtual unsigned int	cfgFindNextChildIndex (SgNode *n)
	Find the index just after n in this node's CFG children.

virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index=false)
	Find the out edges of a CFG node – internal version.

virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index=false)
	Find the in edges of a CFG node – internal version.

int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST.

int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST.

template<class T >
T *	initParentPointer (T child, SgNode parent)
	Generated for tree edge data member initializations.

SgNode *	get_freepointer () const

void	set_freepointer (SgNode *freepointer)

void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node.

SgNode *	get_parent () const
	Access function for parent node.

std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space)

bool	get_isVisited () const
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals.

void	set_isVisited (bool isVisited)
	Access function for p_isVisited flag used previously by the AST traversals.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

template<class T >
std::enable_if<!std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child.

Static Public Member Functions
static bool	is_matching_type (const SgTemplateArgument &X, const SgTemplateArgument &Y)

static bool	is_matching_nontype (const SgTemplateArgument &X, const SgTemplateArgument &Y)

static bool	is_matching_template (const SgTemplateArgument &X, const SgTemplateArgument &Y)

static bool	is_matching_template_pack_expansion (const SgTemplateArgument &X, const SgTemplateArgument &Y)

static bool	is_matching_kind (const SgTemplateArgument &X, const SgTemplateArgument &Y)

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgTemplateArgument *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgTemplateArgument *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgTemplateArgument *sgnode)

Static Public Member Functions inherited from SgSupport
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgSupport *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgSupport *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgSupport *sgnode)

Static Public Member Functions inherited from SgNode
static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

static void	deleteMemoryPool ()

static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.

static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.

static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.

static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.

static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.

static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.

static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.

static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.

static std::string	getNodeIdStringInternal (SgNode *sgnode)

static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism.

static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)

static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)

static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map.

static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.

static std::map< std::string, uint64_t > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map.

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names).

static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type).

static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type).

static std::map< SgNode , std::map< SgNode , std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types).

static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode , std::map< SgNode , std::string > > &X)
	Access function for name qualification support (for maps of types).

static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations).

static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations).

static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types).

static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types).

static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.

static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.

static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.

static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.

static VariantT	variantFromPool (SgNode const *n)

template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent.

Protected Attributes
SgTemplateArgument::template_argument_enum	p_argumentType

bool	p_isArrayBoundUnknownType
	Template arguments can be used as array bounds, if so this this marks the arguments use as such.

SgType *	p_type
	This is the template argument's reference to a type (if it is a type).

SgType *	p_unparsable_type_alias

SgExpression *	p_expression
	This is the template argument's reference to an expression (if it is an expression).

SgDeclarationStatement *	p_templateDeclaration

SgInitializedName *	p_initializedName

bool	p_explicitlySpecified
	This true only if for a function template the argument is explicit in the source code (it need not always be.)

int	p_name_qualification_length

bool	p_type_elaboration_required

bool	p_global_qualification_required

bool	p_requiresGlobalNameQualificationOnType

int	p_name_qualification_length_for_type

bool	p_type_elaboration_required_for_type

bool	p_global_qualification_required_for_type

SgTemplateArgument *	p_previous_instance

SgTemplateArgument *	p_next_instance

bool	p_is_pack_element

Protected Attributes inherited from SgNode
SgNode *	p_parent
	This is the pointer to the parent IR node in the AST.

bool	p_isModified
	Records if IR node has been modified (data members reset).

bool	p_containsTransformation

SgNode *	p_freepointer
	This is the pointer to the chain of previously freed objects.

Additional Inherited Members
Protected Member Functions inherited from SgNode
virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers.

virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers.

Static Protected Attributes inherited from SgNode
static std::vector< std::tuple< unsigned char *, unsigned, VariantT > >	all_pools

static SgFunctionTypeTable *	p_globalFunctionTypeTable
	Pointer to symbol table specific to function types.

static SgTypeTable *	p_globalTypeTable

static std::map< SgNode *, std::string >	p_globalMangledNameMap
	Cache of mangled names to avoid regeneration of previously build mangled names or parts of mangled names. This is a performance optimization.

static std::map< std::string, uint64_t >	p_shortMangledNameCache
	STL map used as a cache to shorten generated mangled names. This is mostly a space optimization ofr mangled names of templates.

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForNames

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTypes

static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTemplateHeaders

static std::map< SgNode *, std::string >	p_globalTypeNameMap

static std::map< SgNode , std::map< SgNode , std::string > >	p_globalQualifiedNameMapForMapsOfTypes

Member Typedef Documentation

◆ base_node_type

typedef SgSupport SgTemplateArgument::base_node_type

Definition at line 51771 of file Cxx_Grammar.h.

Member Enumeration Documentation

◆ template_argument_enum

enum SgTemplateArgument::template_argument_enum

Different uses of a template argument

Enumerator
argument_undefined	undefined (error)
type_argument	type parameter
nontype_argument	nontype parameter
template_template_argument	template template parameter
start_of_pack_expansion_argument	start of pack expansion parameter

Definition at line 51268 of file Cxx_Grammar.h.

◆ anonymous enum

anonymous enum

static variant value

Definition at line 51392 of file Cxx_Grammar.h.

Constructor & Destructor Documentation

◆ ~SgTemplateArgument()

SgTemplateArgument::~SgTemplateArgument ( )

virtual

This is the destructor.

There is nothing to delete in this object.

Member Function Documentation

◆ copy()

virtual SgNode * SgTemplateArgument::copy ( SgCopyHelp & help ) const

overridevirtual

Reimplemented from SgSupport.

◆ post_construction_initialization()

void SgTemplateArgument::post_construction_initialization ( )

overridevirtual

Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

Reimplemented from SgNode.

◆ fixupCopy_scopes()

virtual void SgTemplateArgument::fixupCopy_scopes	(	SgNode *	copy,
		SgCopyHelp &	help
	)		const

overridevirtual

Reimplemented from SgNode.

◆ fixupCopy_symbols()

virtual void SgTemplateArgument::fixupCopy_symbols	(	SgNode *	copy,
		SgCopyHelp &	help
	)		const

overridevirtual

Reimplemented from SgNode.

◆ fixupCopy_references()

virtual void SgTemplateArgument::fixupCopy_references	(	SgNode *	copy,
		SgCopyHelp &	help
	)		const

overridevirtual

Reimplemented from SgNode.

◆ class_name()

virtual std::string SgTemplateArgument::class_name ( ) const

overridevirtual

returns a string representing the class name

Reimplemented from SgSupport.

◆ variantT()

virtual VariantT SgTemplateArgument::variantT ( ) const

overridevirtual

returns new style SageIII enum values

Reimplemented from SgSupport.

◆ operator delete()

void SgTemplateArgument::operator delete ( void * pointer )

inline

Definition at line 51447 of file Cxx_Grammar.h.

◆ get_traversalSuccessorContainer()

virtual std::vector< SgNode * > SgTemplateArgument::get_traversalSuccessorContainer ( )

overridevirtual

container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation

Reimplemented from SgSupport.

◆ get_traversalSuccessorNamesContainer()

virtual std::vector< std::string > SgTemplateArgument::get_traversalSuccessorNamesContainer ( )

overridevirtual

container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation

Reimplemented from SgSupport.

◆ get_numberOfTraversalSuccessors()

virtual size_t SgTemplateArgument::get_numberOfTraversalSuccessors ( )

overridevirtual

return number of children in the traversal successor list

Reimplemented from SgSupport.

◆ get_traversalSuccessorByIndex()

virtual SgNode * SgTemplateArgument::get_traversalSuccessorByIndex ( size_t idx )

overridevirtual

index-based access to traversal successors by index number

Reimplemented from SgSupport.

◆ get_childIndex()

virtual size_t SgTemplateArgument::get_childIndex ( SgNode * child )

overridevirtual

index-based access to traversal successors by child node

Reimplemented from SgSupport.

◆ roseRTI()

virtual RTIReturnType SgTemplateArgument::roseRTI ( )

overridevirtual

return C++ Runtime-Time-Information

Reimplemented from SgSupport.

◆ sage_class_name()

virtual const char * SgTemplateArgument::sage_class_name ( ) const

overridevirtual

returns a C style string (char*) representing the class name

Reimplemented from SgSupport.

◆ accept()

virtual void SgTemplateArgument::accept ( ROSE_VisitorPattern & visitor )

overridevirtual

support for the classic visitor pattern done in GoF

Reimplemented from SgSupport.

◆ isInMemoryPool()

virtual bool SgTemplateArgument::isInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

◆ checkDataMemberPointersIfInMemoryPool()

virtual void SgTemplateArgument::checkDataMemberPointersIfInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

◆ returnDataMemberPointers()

virtual std::vector< std::pair< SgNode *, std::string > > SgTemplateArgument::returnDataMemberPointers ( ) const

overridevirtual

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns: STL vector of pairs of SgNode* and strings

Reimplemented from SgSupport.

◆ processDataMemberReferenceToPointers()

virtual void SgTemplateArgument::processDataMemberReferenceToPointers ( ReferenceToPointerHandler * )

overridevirtual

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgSupport.

◆ getChildIndex()

virtual long SgTemplateArgument::getChildIndex ( SgNode * childNode ) const

overridevirtual

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning: The mapping on children to integer values could change from release to release of ROSE.

Returns: long

Reimplemented from SgSupport.

◆ addRegExpAttribute()

SgTemplateArgument * SgTemplateArgument::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

◆ get_argumentType()

SgTemplateArgument::template_argument_enum SgTemplateArgument::get_argumentType ( ) const

This function returns argumentType.

Returns: Returns SgTemplateArgument::template_argument_enum.

Referenced by SageBuilder::appendTemplateArgumentsToName(), SageInterface::get_name(), and SageInterface::templateArgumentEquivalence().

◆ set_argumentType()

SgTemplateArgument::set_argumentType ( SgTemplateArgument::template_argument_enum argumentType )

This function sets argumentType.

Returns: Returns void.

◆ get_isArrayBoundUnknownType()

bool SgTemplateArgument::get_isArrayBoundUnknownType ( ) const

This function returns isArrayBoundUnknownType.

Returns: Returns bool.

◆ set_isArrayBoundUnknownType()

SgTemplateArgument::set_isArrayBoundUnknownType ( bool isArrayBoundUnknownType )

This function sets isArrayBoundUnknownType.

Returns: Returns void.

◆ get_type()

SgType * SgTemplateArgument::get_type ( ) const

This function returns argumentType.

Returns: Returns SgType pointer.

Referenced by SageBuilder::appendTemplateArgumentsToName(), SageInterface::get_name(), and SageInterface::templateArgumentEquivalence().

◆ get_expression()

SgExpression * SgTemplateArgument::get_expression ( ) const

This function returns argumentExpression.

Returns: Returns SgExpression pointer.

Referenced by SageBuilder::appendTemplateArgumentsToName(), SageInterface::get_name(), and SageInterface::templateArgumentEquivalence().

◆ get_explicitlySpecified()

bool SgTemplateArgument::get_explicitlySpecified ( ) const

This function returns explicitlySpecified.

Returns: Returns bool.

◆ set_explicitlySpecified()

SgTemplateArgument::set_explicitlySpecified ( bool explicitlySpecified )

This function sets explicitlySpecified.

Returns: Returns void.

Member Data Documentation

◆ p_argumentType

SgTemplateArgument::template_argument_enum SgTemplateArgument::p_argumentType

protected

Definition at line 51837 of file Cxx_Grammar.h.

◆ p_isArrayBoundUnknownType

SgTemplateArgument::p_isArrayBoundUnknownType

protected

Template arguments can be used as array bounds, if so this this marks the arguments use as such.

Definition at line 51841 of file Cxx_Grammar.h.

◆ p_type

SgTemplateArgument::p_type

protected

This is the template argument's reference to a type (if it is a type).

This pointer is valid if the argumentType is "type_argument".

Definition at line 51845 of file Cxx_Grammar.h.

◆ p_unparsable_type_alias

SgType* SgTemplateArgument::p_unparsable_type_alias

protected

Definition at line 51849 of file Cxx_Grammar.h.

◆ p_expression

SgTemplateArgument::p_expression

protected

This is the template argument's reference to an expression (if it is an expression).

This pointer is valid if the argumentType is "nontype_argument".

Definition at line 51853 of file Cxx_Grammar.h.

◆ p_templateDeclaration

SgDeclarationStatement* SgTemplateArgument::p_templateDeclaration

protected

Definition at line 51857 of file Cxx_Grammar.h.

◆ p_initializedName

SgInitializedName* SgTemplateArgument::p_initializedName

protected

Definition at line 51861 of file Cxx_Grammar.h.

◆ p_explicitlySpecified

SgTemplateArgument::p_explicitlySpecified

protected

This true only if for a function template the argument is explicit in the source code (it need not always be.)

For template<typename T> void foo(T t); we could specify:

foo(1.0); or:
foo<float>(1.0); only in the second case is the template argument explicit. For all instantiated member function templates the value is false.

Definition at line 51865 of file Cxx_Grammar.h.

◆ p_name_qualification_length

int SgTemplateArgument::p_name_qualification_length

protected

Definition at line 51869 of file Cxx_Grammar.h.

◆ p_type_elaboration_required

bool SgTemplateArgument::p_type_elaboration_required

protected

Definition at line 51873 of file Cxx_Grammar.h.

◆ p_global_qualification_required

bool SgTemplateArgument::p_global_qualification_required

protected

Definition at line 51877 of file Cxx_Grammar.h.

◆ p_requiresGlobalNameQualificationOnType

bool SgTemplateArgument::p_requiresGlobalNameQualificationOnType

protected

Definition at line 51881 of file Cxx_Grammar.h.

◆ p_name_qualification_length_for_type

int SgTemplateArgument::p_name_qualification_length_for_type

protected

Definition at line 51885 of file Cxx_Grammar.h.

◆ p_type_elaboration_required_for_type

bool SgTemplateArgument::p_type_elaboration_required_for_type

protected

Definition at line 51889 of file Cxx_Grammar.h.

◆ p_global_qualification_required_for_type

bool SgTemplateArgument::p_global_qualification_required_for_type

protected

Definition at line 51893 of file Cxx_Grammar.h.

◆ p_previous_instance

SgTemplateArgument* SgTemplateArgument::p_previous_instance

protected

Definition at line 51897 of file Cxx_Grammar.h.

◆ p_next_instance

SgTemplateArgument* SgTemplateArgument::p_next_instance

protected

Definition at line 51901 of file Cxx_Grammar.h.

◆ p_is_pack_element

bool SgTemplateArgument::p_is_pack_element

protected

Definition at line 51905 of file Cxx_Grammar.h.

The documentation for this class was generated from the following files:

Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Member Typedef Documentation

◆ base_node_type

Member Enumeration Documentation

◆ template_argument_enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ ~SgTemplateArgument()

Member Function Documentation

◆ copy()

◆ post_construction_initialization()

◆ fixupCopy_scopes()

◆ fixupCopy_symbols()

◆ fixupCopy_references()

◆ class_name()

◆ variantT()

◆ operator delete()

◆ get_traversalSuccessorContainer()

◆ get_traversalSuccessorNamesContainer()

◆ get_numberOfTraversalSuccessors()

◆ get_traversalSuccessorByIndex()

◆ get_childIndex()

◆ roseRTI()

◆ sage_class_name()

◆ accept()

◆ isInMemoryPool()

◆ checkDataMemberPointersIfInMemoryPool()

◆ returnDataMemberPointers()

◆ processDataMemberReferenceToPointers()

◆ getChildIndex()

◆ addRegExpAttribute()

◆ get_argumentType()

◆ set_argumentType()

◆ get_isArrayBoundUnknownType()

◆ set_isArrayBoundUnknownType()

◆ get_type()

◆ get_expression()

◆ get_explicitlySpecified()

◆ set_explicitlySpecified()

Member Data Documentation

◆ p_argumentType

◆ p_isArrayBoundUnknownType

◆ p_type

◆ p_unparsable_type_alias

◆ p_expression

◆ p_templateDeclaration

◆ p_initializedName

◆ p_explicitlySpecified

◆ p_name_qualification_length

◆ p_type_elaboration_required

◆ p_global_qualification_required

◆ p_requiresGlobalNameQualificationOnType

◆ p_name_qualification_length_for_type

◆ p_type_elaboration_required_for_type

◆ p_global_qualification_required_for_type

◆ p_previous_instance

◆ p_next_instance

◆ p_is_pack_element
