Rose::BinaryAnalysis::Partitioner2::CfgAdjustmentCallback::DetachedBasicBlock Struct Reference

Description

Arguments for detaching a basic block.

After a basic block is detached from the CFG/AUM, or after a placeholder is removed from the CFG, these arguments are passed to the callback. If a basic block was detached then the bblock member will be non-null, otherwise the arguments indicate that a placeholder was removed from the CFG. This callback is invoked after the changes have been made to the CFG/AUM. The partitioner is passed as a const pointer because the callback should not modify the CFG/AUM; this callback may represent only one step in a larger sequence, and modifying the CFG/AUM could confuse things.

Definition at line 266 of file ControlFlowGraph.h.

#include <Rose/BinaryAnalysis/Partitioner2/ControlFlowGraph.h>

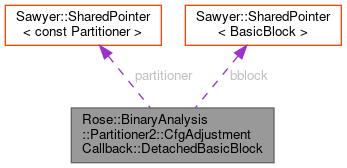

Collaboration diagram for Rose::BinaryAnalysis::Partitioner2::CfgAdjustmentCallback::DetachedBasicBlock:
Collaboration graph
[legend]

Public Member Functions

 DetachedBasicBlock (const PartitionerPtr &, rose_addr_t startVa, const BasicBlockPtr &)


Public Attributes

PartitionerConstPtr partitioner
 Partitioner in which change occurred.

rose_addr_t startVa
 Starting address for basic block or placeholder.

BasicBlockPtr bblock
 Optional basic block; otherwise a placeholder operation.


Member Data Documentation

◆ partitioner

PartitionerConstPtr Rose::BinaryAnalysis::Partitioner2::CfgAdjustmentCallback::DetachedBasicBlock::partitioner

Partitioner in which change occurred.

Definition at line 267 of file ControlFlowGraph.h.

◆ startVa

rose_addr_t Rose::BinaryAnalysis::Partitioner2::CfgAdjustmentCallback::DetachedBasicBlock::startVa

Starting address for basic block or placeholder.

Definition at line 268 of file ControlFlowGraph.h.

◆ bblock

BasicBlockPtr Rose::BinaryAnalysis::Partitioner2::CfgAdjustmentCallback::DetachedBasicBlock::bblock

Optional basic block; otherwise a placeholder operation.

Definition at line 269 of file ControlFlowGraph.h.


The documentation for this struct was generated from the following file:
