Description

Base class for PowerPC architectures.

Definition at line 12 of file Architecture/Powerpc.h.

#include <Rose/BinaryAnalysis/Architecture/Powerpc.h>

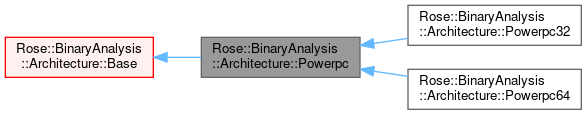

Inheritance diagram for Rose::BinaryAnalysis::Architecture::Powerpc:

[legend]

Collaboration diagram for Rose::BinaryAnalysis::Architecture::Powerpc:

[legend]

Public Types
using	Ptr = PowerpcPtr

Public Types inherited from Rose::BinaryAnalysis::Architecture::Base
using	Ptr = BasePtr
	Reference counting pointer.

using	ConstPtr = BaseConstPtr
	Reference counting pointer to const object.

Public Member Functions
virtual const CallingConvention::Dictionary &	callingConventions () const override
	Property: Calling convention definitions.

std::string	instructionMnemonic (const SgAsmInstruction *) const override
	Mnemonic for an instruction.

std::string	instructionDescription (const SgAsmInstruction *) const override
	Description for an instruction.

Sawyer::Container::Interval< size_t >	bytesPerInstruction () const override
	Valid sizes for encoded machine instructions.

Alignment	instructionAlignment () const override
	Alignment for encoded machine instructions.

bool	terminatesBasicBlock (SgAsmInstruction *) const override
	Determines whether the specified instruction normally terminates a basic block.

bool	isUnknown (const SgAsmInstruction *) const override
	Returns true if the instruction is the special "unknown" instruction.

bool	isFunctionCallFast (const std::vector< SgAsmInstruction * > &, rose_addr_t target, rose_addr_t ret) const override
	Returns true if the specified basic block looks like a function call.

bool	isFunctionReturnFast (const std::vector< SgAsmInstruction * > &) const override
	Returns true if the specified basic block looks like a function return.

AddressSet	getSuccessors (SgAsmInstruction *, bool &complete) const override
	Control flow successors for a single instruction.

Disassembler::BasePtr	newInstructionDecoder () const override
	Construct and return a new instruction decoder.

Unparser::BasePtr	newUnparser () const override
	Construct and return a new instruction unparser.

virtual InstructionSemantics::BaseSemantics::DispatcherPtr	newInstructionDispatcher (const InstructionSemantics::BaseSemantics::RiscOperatorsPtr &) const override
	Construct and return a new instruction dispatcher.

std::vector< Partitioner2::FunctionPrologueMatcherPtr >	functionPrologueMatchers (const Partitioner2::EnginePtr &) const override
	Instruction patterns matching function prologues.

Public Member Functions inherited from Rose::BinaryAnalysis::Architecture::Base
const std::string &	name () const
	Property: Architecture definition name.

ByteOrder::Endianness	byteOrder () const
	Property: Byte order for memory.

virtual RegisterDictionaryPtr	registerDictionary () const =0
	Property: Register dictionary.

virtual RegisterDictionaryPtr	interruptDictionary () const
	Property: Interrupt dictionary.

virtual bool	matchesName (const std::string &) const
	Tests whether this architecture matches a name.

virtual bool	matchesHeader (SgAsmGenericHeader *) const
	Tests whether this architecture matches a file header.

bool	instructionsCanOverlap () const
	Whether instructions can overlap in memory.

virtual Sawyer::Optional< rose_addr_t >	branchTarget (SgAsmInstruction *) const
	Obtains the virtual address for a branching instruction.

virtual std::vector< Partitioner2::BasicBlockCallbackPtr >	basicBlockCreationHooks (const Partitioner2::EnginePtr &) const
	Architecture-specific basic block callbacks for partitioning.

const Sawyer::Optional< size_t > &	registrationId () const
	Property: Registration identification number.

void	registrationId (const Sawyer::Optional< size_t > &)
	Property: Registration identification number.

size_t	bytesPerWord () const
	Property: Word size.

size_t	bitsPerWord () const
	Property: Word size.

virtual std::string	toString (const SgAsmInstruction *) const
	Unparse an instruction to a string.

virtual std::string	toStringNoAddr (const SgAsmInstruction *) const
	Unparse an instruction to a string.

virtual bool	isFunctionCallSlow (const std::vector< SgAsmInstruction * > &, rose_addr_t target, rose_addr_t ret) const
	Returns true if the specified basic block looks like a function call.

virtual bool	isFunctionReturnSlow (const std::vector< SgAsmInstruction * > &) const
	Returns true if the specified basic block looks like a function return.

AddressSet	getSuccessors (const std::vector< SgAsmInstruction * > &basicBlock, bool &complete) const
	Control flow successors for a basic block.

virtual AddressSet	getSuccessors (const std::vector< SgAsmInstruction * > &basicBlock, bool &complete, const MemoryMapPtr &initial_memory) const
	Control flow successors for a basic block.

Protected Member Functions
	Powerpc (size_t bytesPerWord, ByteOrder::Endianness)

CallingConvention::DefinitionPtr	cc_ibm (size_t bitsPerWord) const

Protected Member Functions inherited from Rose::BinaryAnalysis::Architecture::Base
	Base (const std::string &name, size_t bytesPerWord, ByteOrder::Endianness byteOrder)

Ptr	ptr ()

ConstPtr	constPtr () const

Additional Inherited Members
Protected Attributes inherited from Rose::BinaryAnalysis::Architecture::Base
Sawyer::Cached< RegisterDictionaryPtr >	registerDictionary_

Sawyer::Cached< RegisterDictionaryPtr >	interruptDictionary_

Sawyer::Cached< CallingConvention::Dictionary >	callingConventions_

Sawyer::Cached< Unparser::Base::Ptr >	insnToString_

Sawyer::Cached< Unparser::Base::Ptr >	insnToStringNoAddr_

Member Typedef Documentation

◆ Ptr

using Rose::BinaryAnalysis::Architecture::Powerpc::Ptr = PowerpcPtr

Definition at line 14 of file Architecture/Powerpc.h.

Member Function Documentation

◆ callingConventions()

virtual const CallingConvention::Dictionary & Rose::BinaryAnalysis::Architecture::Powerpc::callingConventions ( ) const

overridevirtual

Property: Calling convention definitions.

Returns a list of calling convention definitions used by this architecture. Since definitions are generally not modified, it is permissible for this function to return the same definitions every time it's called. The list can be constructed on the first call.

The default implementation returns an empty list.

Thread safety: Thread safe.

Reimplemented from Rose::BinaryAnalysis::Architecture::Base.

◆ instructionMnemonic()

std::string Rose::BinaryAnalysis::Architecture::Powerpc::instructionMnemonic ( const SgAsmInstruction * ) const

overridevirtual

Mnemonic for an instruction.

Returns the mnemonic for a particular instruction.

Thread safety: Thread safe.

Implements Rose::BinaryAnalysis::Architecture::Base.

◆ instructionDescription()

std::string Rose::BinaryAnalysis::Architecture::Powerpc::instructionDescription ( const SgAsmInstruction * ) const

overridevirtual

Description for an instruction.

Returns the description for a particular instruction. The description must be a single line with no leading or trailing white space, no line termination characters, and no non-printable characters. Most subclasses will just return a string based on the instruction mnemonic, such as "push a value onto the stack" for a PUSH instruction. The instruction argument must not be a null pointer and must be valid for this architecture.

The default implementation returns an empty string.

Thread safety: Thread safe.

Reimplemented from Rose::BinaryAnalysis::Architecture::Base.

◆ bytesPerInstruction()

Sawyer::Container::Interval< size_t > Rose::BinaryAnalysis::Architecture::Powerpc::bytesPerInstruction ( ) const

overridevirtual

Valid sizes for encoded machine instructions.

Returns the range of valid sizes for encoded machine instructions. For instance, an x86 instruction can be from one to 15 bytes in length, but a PowerPC PPC32 instruction is always exactly 4 bytes.

Implements Rose::BinaryAnalysis::Architecture::Base.

◆ instructionAlignment()

Alignment Rose::BinaryAnalysis::Architecture::Powerpc::instructionAlignment ( ) const

overridevirtual

Alignment for encoded machine instructions.

Implements Rose::BinaryAnalysis::Architecture::Base.

◆ terminatesBasicBlock()

bool Rose::BinaryAnalysis::Architecture::Powerpc::terminatesBasicBlock ( SgAsmInstruction * ) const

overridevirtual

Determines whether the specified instruction normally terminates a basic block.

The analysis generally only looks at the individual instruction and therefore is not very sophisticated. For instance, a conditional branch will always terminate a basic block by this method even if its condition is opaque. The instruction argument must not be a null pointer and must be valid for this architecture.

Thread safety: Thread safe.

Implements Rose::BinaryAnalysis::Architecture::Base.

◆ isUnknown()

bool Rose::BinaryAnalysis::Architecture::Powerpc::isUnknown ( const SgAsmInstruction * ) const

overridevirtual

Returns true if the instruction is the special "unknown" instruction.

Each instruction architecture in ROSE defines an "unknown" instruction to be used when the disassembler is unable to create a real instruction. This can happen, for instance, if the bit pattern does not represent a valid instruction for the architecture. The instruction must not be a null pointer, and must be valid for this architecture.

Thread safety: Thread safe.

Implements Rose::BinaryAnalysis::Architecture::Base.

◆ isFunctionCallFast()

bool Rose::BinaryAnalysis::Architecture::Powerpc::isFunctionCallFast	(	const std::vector< SgAsmInstruction * > &	,
		rose_addr_t *	target,
		rose_addr_t *	ret
	)		const

overridevirtual

Returns true if the specified basic block looks like a function call.

If the basic block looks like a function call then this method returns true. If (and only if) the target address is known (i.e., the address of the called function) then target is set to this address (otherwise target is unmodified). If the return address is known or can be guessed, then return_va is initialized to the return address, which is normally the fall-through address of the last instruction; otherwise the return_va is unmodified.

The "fast" and "slow" versions differ only in what kind of anlysis they do. The "fast" version typically looks only at instruction patterns while the slow version might incur more expense by looking at instruction semantics.

The base implementation of the fast method always returns false. The base implementation of the slow method just calls the fast method.

Thread safety: Thread safe.

Reimplemented from Rose::BinaryAnalysis::Architecture::Base.

◆ isFunctionReturnFast()

bool Rose::BinaryAnalysis::Architecture::Powerpc::isFunctionReturnFast ( const std::vector< SgAsmInstruction * > & ) const

overridevirtual

Returns true if the specified basic block looks like a function return.

The "fast" and "slow" versions differ only in what kind of anlysis they do. The "fast" version typically looks only at instruction patterns while the slow version might incur more expense by looking at instruction semantics.

The base implementaiton of the fast method always returns false. The base implementation of the slow method just calls the fast method.

Thread safety: Thread safe.

Reimplemented from Rose::BinaryAnalysis::Architecture::Base.

◆ getSuccessors()

AddressSet Rose::BinaryAnalysis::Architecture::Powerpc::getSuccessors	(	SgAsmInstruction *	,
		bool &	complete
	)		const

overridevirtual

Control flow successors for a single instruction.

The return value does not consider neighboring instructions, and therefore is quite naive. It returns only the information it can glean from this single instruction. If the returned set of virtual instructions is fully known then the complete argument will be set to true, otherwise false. The instruction must not be null, and must be valid for this architecture.

The default implementation always returns an empty set and clears complete.

Thread safety: Thread saafe.

Reimplemented from Rose::BinaryAnalysis::Architecture::Base.

◆ newInstructionDecoder()

Disassembler::BasePtr Rose::BinaryAnalysis::Architecture::Powerpc::newInstructionDecoder ( ) const

overridevirtual

Construct and return a new instruction decoder.

Returns a new decoder for this architecture if possible, otherwise a null pointer.

Thread safety: Thread safe.

Implements Rose::BinaryAnalysis::Architecture::Base.

◆ newUnparser()

Unparser::BasePtr Rose::BinaryAnalysis::Architecture::Powerpc::newUnparser ( ) const

overridevirtual

Construct and return a new instruction unparser.

An unparser is responsible for generating pseudo assembly listings.

Thread safety: Thread safe.

Implements Rose::BinaryAnalysis::Architecture::Base.

◆ newInstructionDispatcher()

virtual InstructionSemantics::BaseSemantics::DispatcherPtr Rose::BinaryAnalysis::Architecture::Powerpc::newInstructionDispatcher ( const InstructionSemantics::BaseSemantics::RiscOperatorsPtr & ) const

overridevirtual

Construct and return a new instruction dispatcher.

The dispatcher knows the semantics for instructions, but not the low-level operators (arithmetic, memory I/O, etc), nor the domain (concrete, symbolic, etc) on which those operators operate. These other things are supplied by the argument, which also points to the states that are modified by executing the instructions.

The default implementation returns a null pointer, signifying that instruction semantics are not known.

Thread safety: Thread safe.

Reimplemented from Rose::BinaryAnalysis::Architecture::Base.

◆ functionPrologueMatchers()

std::vector< Partitioner2::FunctionPrologueMatcherPtr > Rose::BinaryAnalysis::Architecture::Powerpc::functionPrologueMatchers ( const Partitioner2::EnginePtr & ) const

overridevirtual

Instruction patterns matching function prologues.

Returns a list of matchers that match sequences of instructions that are often generated by compilers as part of instruction prologues.

The default implementation returns an empty list.

Reimplemented from Rose::BinaryAnalysis::Architecture::Base.

The documentation for this class was generated from the following file:

Architecture/Powerpc.h
