Description

Base class for address spaces.

An address space stores information about memory, registers, or other kinds of states that have a mapping from an address to a value. A semantic state typically has multiple address spaces.

Definition at line 88 of file AddressSpace.h.

#include <Rose/BinaryAnalysis/InstructionSemantics/BaseSemantics/AddressSpace.h>

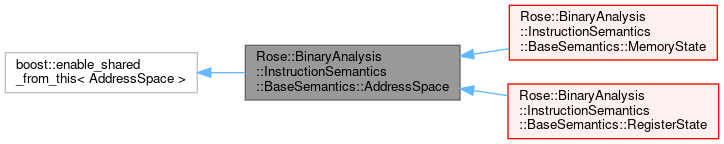

Inheritance diagram for Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace:

[legend]

Collaboration diagram for Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace:

[legend]

Classes
class	WithFormatter
	Address space with formatter. More...

Public Types
using	Ptr = AddressSpacePtr
	Shared-ownership pointer.

using	Purpose = AddressSpacePurpose
	Purpose for the address space.

Public Member Functions
virtual Ptr	clone () const =0
	Deep-copy of this address space.

virtual void	clear ()=0
	Remove all values.

virtual SValuePtr	read (const AddressSpaceAddress &, const SValuePtr &dflt, RiscOperators &addrOps, RiscOperators &valOps)
	Read a value from the address space.

virtual SValuePtr	peek (const AddressSpaceAddress &, const SValuePtr &dflt, RiscOperators &addrOps, RiscOperators &valOps)
	Read without causing side effects.

virtual void	write (const AddressSpaceAddress &, const SValuePtr &value, RiscOperators &addrOps, RiscOperators &valOps)
	Write a value to an address space.

virtual void	hash (Combinatorics::Hasher &, RiscOperators addrOps, RiscOperators valOps) const =0
	Hash this address space.

virtual bool	merge (const AddressSpacePtr &other, RiscOperators addrOps, RiscOperators valOps)=0
	Merge address spaces for data flow analysis.

std::string	printableName () const
	Printable name for this address space.


Purpose	purpose () const
	Property: Purpose of this address space.

void	purpose (Purpose)
	Property: Purpose of this address space.


const std::string &	name () const
	Property: Name for this address space.

void	name (const std::string &)
	Property: Name for this address space.


void	print (std::ostream &, const std::string &prefix="") const
	Print an address space.

virtual void	print (std::ostream &, Formatter &) const =0
	Print an address space.


WithFormatter	with_format (Formatter &)
	Used for printing address spaces with formatting.

WithFormatter	operator+ (Formatter &)
	Used for printing address spaces with formatting.

WithFormatter	operator+ (const std::string &linePrefix)
	Used for printing address spaces with formatting.

Protected Member Functions
	AddressSpace (Purpose, const std::string &name)

	AddressSpace (const AddressSpace &)

AddressSpace &	operator= (const AddressSpace &)=delete

Member Typedef Documentation

◆ Ptr

using Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::Ptr = AddressSpacePtr

Shared-ownership pointer.

Definition at line 91 of file AddressSpace.h.

◆ Purpose

using Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::Purpose = AddressSpacePurpose

Purpose for the address space.

Definition at line 94 of file AddressSpace.h.

Member Function Documentation

◆ clone()

virtual Ptr Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::clone ( ) const

pure virtual

Deep-copy of this address space.

◆ purpose() [1/2]

Purpose Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::purpose ( ) const

Property: Purpose of this address space.

Every address space has a purpose to describe what kind of data it stores. It is permissible for a semantic state to have multiple address spaces that have the same value for this property but have slightly different purposes. For instance, the state might have two Purpose::MEMORY address spaces where one is for the processor's main address bus and another is used internally to store temporary values.

Thread safety: It is safe to have multiple threads reading the purpose as long as none are modifying the purpose.

◆ purpose() [2/2]

void Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::purpose ( Purpose )

Property: Purpose of this address space.

Every address space has a purpose to describe what kind of data it stores. It is permissible for a semantic state to have multiple address spaces that have the same value for this property but have slightly different purposes. For instance, the state might have two Purpose::MEMORY address spaces where one is for the processor's main address bus and another is used internally to store temporary values.

Thread safety: It is safe to have multiple threads reading the purpose as long as none are modifying the purpose.

◆ name() [1/2]

const std::string & Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::name ( ) const

Property: Name for this address space.

Every address space has a name (possibly an empty string) that is used in diagnostic messages and sometimes used to look up an address space within a semantic state.

Thread safety: It is safe for multiple threads to read the name as long as none are modifying the name.

◆ name() [2/2]

void Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::name ( const std::string & )

Property: Name for this address space.

Every address space has a name (possibly an empty string) that is used in diagnostic messages and sometimes used to look up an address space within a semantic state.

Thread safety: It is safe for multiple threads to read the name as long as none are modifying the name.

◆ clear()

virtual void Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::clear ( )

pure virtual

Remove all values.

All address and value pairs are removed from the address space, making the space completely empty.

◆ read()

virtual SValuePtr Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::read	(	const AddressSpaceAddress &	,
		const SValuePtr &	dflt,
		RiscOperators &	addrOps,
		RiscOperators &	valOps
	)

virtual

Read a value from the address space.

Reading a value may have side effects. For instance, reading from a certain address that hasn't previously been defined may instantiate a new value and save it at that address so that a subsequent read from the same address can return the same value. The provided default is used for this purpose.

◆ peek()

virtual SValuePtr Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::peek	(	const AddressSpaceAddress &	,
		const SValuePtr &	dflt,
		RiscOperators &	addrOps,
		RiscOperators &	valOps
	)

virtual

Read without causing side effects.

Attempts to read a value from the specified address of this address space. If the space does not hold a value for that address then the specified default is returned. The address space is not modified by this operation.

◆ hash()

virtual void Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::hash	(	Combinatorics::Hasher &	,
		RiscOperators *	addrOps,
		RiscOperators *	valOps
	)		const

pure virtual

Hash this address space.

Hashes this address space by appending its data to the specified hasher. The goal is to identify when two address spaces are the "same" and allow certain kinds of analyses to take shortcuts. The address space purpose and name are not included in the hash. Separate RISC operators are passed for the addresses and values of this address space and are used if the hashing requires any operations on the addresses or values.

Implemented in Rose::BinaryAnalysis::InstructionSemantics::NullSemantics::RegisterState, Rose::BinaryAnalysis::InstructionSemantics::NullSemantics::MemoryState, Rose::BinaryAnalysis::InstructionSemantics::ConcreteSemantics::MemoryState, Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::MemoryCellList, Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::MemoryCellMap, Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::RegisterStateGeneric, and Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SymbolicMemory.

◆ merge()

virtual bool Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::merge	(	const AddressSpacePtr &	other,
		RiscOperators *	addrOps,
		RiscOperators *	valOps
	)

pure virtual

Merge address spaces for data flow analysis.

Merges the other address space into this address space, returning true if this space changed.

Implemented in Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::MemoryCellList, Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::MemoryCellMap, Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::RegisterStateGeneric, Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SymbolicMemory, Rose::BinaryAnalysis::InstructionSemantics::NullSemantics::RegisterState, Rose::BinaryAnalysis::InstructionSemantics::ConcreteSemantics::MemoryState, and Rose::BinaryAnalysis::InstructionSemantics::NullSemantics::MemoryState.

◆ printableName()

std::string Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::printableName ( ) const

Printable name for this address space.

Returns a string with the name of the address space. If the address space name is a single word then the word is printed without quotes. Otherwise quotes and appropriate C-style escapes are included.

◆ print() [1/2]

void Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::print	(	std::ostream &	,
		const std::string &	prefix = `""`
	)		const

Print an address space.

The output most likely occupies more than one line and each emitted line will be terminated with a line feed.

◆ print() [2/2]

virtual void Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::print	(	std::ostream &	,
		Formatter &
	)		const

pure virtual

Print an address space.

The output most likely occupies more than one line and each emitted line will be terminated with a line feed.

◆ with_format()

WithFormatter Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::with_format ( Formatter & )

Used for printing address spaces with formatting.

The usual way to use this is:

AddressSpace::Ptr obj = ...;
Formatter fmt = ...;
std::cout <<"The value is: " <<(*obj+fmt) <<"\n";

Since specifying a line prefix string for indentation purposes is such a common use case, the indentation can be given instead of a format, as in the following code that indents each line of the expression with four spaces.

std::cout <<"Memory state:\n" <<(*obj + " ");

◆ operator+() [1/2]

WithFormatter Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::operator+ ( Formatter & )

Used for printing address spaces with formatting.

The usual way to use this is:

AddressSpace::Ptr obj = ...;
Formatter fmt = ...;
std::cout <<"The value is: " <<(*obj+fmt) <<"\n";

Since specifying a line prefix string for indentation purposes is such a common use case, the indentation can be given instead of a format, as in the following code that indents each line of the expression with four spaces.

std::cout <<"Memory state:\n" <<(*obj + " ");

◆ operator+() [2/2]

WithFormatter Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::AddressSpace::operator+ ( const std::string & linePrefix )

Used for printing address spaces with formatting.

The usual way to use this is:

AddressSpace::Ptr obj = ...;
Formatter fmt = ...;
std::cout <<"The value is: " <<(*obj+fmt) <<"\n";

Since specifying a line prefix string for indentation purposes is such a common use case, the indentation can be given instead of a format, as in the following code that indents each line of the expression with four spaces.

std::cout <<"Memory state:\n" <<(*obj + " ");

The documentation for this class was generated from the following file:

AddressSpace.h
