Rose::BinaryAnalysis::ModelChecker::PathPredicate Class Referenceabstract

Description

Path predicate.

A path predicate is a user-defined function that returns true or false for a specified path. It is used for such things as deciding whether a path should be added to a queue.

For instance, when the model checker is about to add a path to the work queue, it will first consult a predicate to decide if it should do that. The predicate might reject the path based on attributes such as:

Definition at line 33 of file PathPredicate.h.

#include <PathPredicate.h>

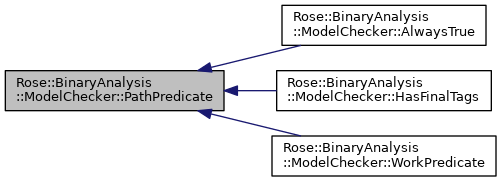

Inheritance diagram for Rose::BinaryAnalysis::ModelChecker::PathPredicate:
Inheritance graph
[legend]

Public Types

using Ptr = PathPredicatePtr
 Shared ownership pointer. More...


Public Member Functions

virtual void reset ()
 Reset internal data. More...

virtual std::pair< bool, const char * > operator() (const SettingsPtr &, const PathPtr &)=0
 The predicate. More...

virtual std::pair< bool, const char * > test (const SettingsPtr &, const PathPtr &) final
 The predicate. More...


Member Typedef Documentation

Shared ownership pointer.

Definition at line 36 of file PathPredicate.h.

Member Function Documentation

virtual std::pair<bool, const char*> Rose::BinaryAnalysis::ModelChecker::PathPredicate::operator() ( const SettingsPtr &  ,
const PathPtr &
)
pure virtual

The predicate.

Tests the path for some condition and returns true or false and an optional reason which is a short C-style string containing only horizontal, printable characters without leading or trailing white space. The string must not be null, but may be empty.

For convenience, the predicate can be applied using either the function operator or the test method, although it's the operator that gets overloaded in the subclasses.

Thread safety: All implementations must be thread safe.

Implemented in Rose::BinaryAnalysis::ModelChecker::HasFinalTags, Rose::BinaryAnalysis::ModelChecker::WorkPredicate, and Rose::BinaryAnalysis::ModelChecker::AlwaysTrue.

virtual std::pair<bool, const char*> Rose::BinaryAnalysis::ModelChecker::PathPredicate::test ( const SettingsPtr &  ,
const PathPtr &
)
finalvirtual

The predicate.

Tests the path for some condition and returns true or false and an optional reason which is a short C-style string containing only horizontal, printable characters without leading or trailing white space. The string must not be null, but may be empty.

For convenience, the predicate can be applied using either the function operator or the test method, although it's the operator that gets overloaded in the subclasses.

Thread safety: All implementations must be thread safe.

virtual void Rose::BinaryAnalysis::ModelChecker::PathPredicate::reset ( )
inlinevirtual

Reset internal data.

Some predicates keep track of various statistics, such as how many paths were rejected because they had too many steps. This function resets that kind of information. The base implementation does nothing.

Thread safety: All implementations must be thread safe.

Reimplemented in Rose::BinaryAnalysis::ModelChecker::WorkPredicate.

Definition at line 66 of file PathPredicate.h.


The documentation for this class was generated from the following file:
