Rose::BinaryAnalysis::SmtlibSolver Class Reference

Description

Wrapper around solvers that speak SMT-LIB.

Definition at line 12 of file BinarySmtlibSolver.h.

#include <BinarySmtlibSolver.h>

Inheritance diagram for Rose::BinaryAnalysis::SmtlibSolver:
Inheritance graph
[legend]

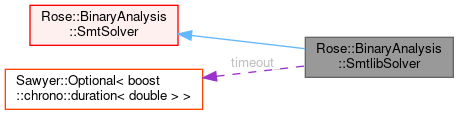

Collaboration diagram for Rose::BinaryAnalysis::SmtlibSolver:
Collaboration graph
[legend]

Public Member Functions

virtual Ptr create () const
 Virtual constructor. More...

virtual void reset () ROSE_OVERRIDE
 Reset solver state. More...

virtual void generateFile (std::ostream &, const std::vector< SymbolicExpr::Ptr > &exprs, Definitions *) ROSE_OVERRIDE
 Generates an input file for for the solver. More...

virtual std::string getCommand (const std::string &configName) ROSE_OVERRIDE
 Given the name of a configuration file, return the command that is needed to run the solver. More...

virtual std::string getErrorMessage (int exitStatus) ROSE_OVERRIDE
 Error message from running a solver executable. More...

virtual VariableSet findVariables (const SymbolicExpr::Ptr &) ROSE_OVERRIDE
 Return all variables that need declarations. More...

virtual SymbolicExpr::Ptr evidenceForName (const std::string &) ROSE_OVERRIDE
 Evidence of satisfiability for a variable or memory address. More...

virtual std::vector< std::string > evidenceNames () ROSE_OVERRIDE
 Names of items for which satisfiability evidence exists. More...

virtual void clearEvidence () ROSE_OVERRIDE
 Clears evidence information. More...

virtual void clearMemoization () ROSE_OVERRIDE
 Clear memoization table. More...

- Public Member Functions inherited from Rose::BinaryAnalysis::SmtSolver
LinkMode linkage () const
 Property: How ROSE communicates with the solver. More...

void requireLinkage (LinkMode) const
 Assert required linkage. More...

SymbolicExpr::Hash latestMemoizationId () const
 Id for latest memoized result, or zero. More...

virtual size_t memoizationNEntries () const
 Size of memoization table. More...

virtual Satisfiable triviallySatisfiable (const std::vector< SymbolicExpr::Ptr > &exprs)
 Determines if expressions are trivially satisfiable or unsatisfiable. More...

virtual void push ()
 Create a backtracking point. More...

virtual void pop ()
 Pop a backtracking point. More...

virtual size_t nLevels () const
 Number of backtracking levels. More...

virtual size_t nAssertions (size_t backtrackingLevel)
 Number of assertions at a specific backtracking level. More...

virtual std::vector< SymbolicExpr::Ptrassertions () const
 All assertions. More...

virtual std::vector< SymbolicExpr::Ptrassertions (size_t level) const
 Assertions for a particular level. More...

virtual Satisfiable check ()
 Check satisfiability of current stack. More...

virtual Satisfiable checkTrivial ()
 Check whether the stack of assertions is trivially satisfiable. More...

virtual SymbolicExpr::Ptr evidenceForAddress (uint64_t addr)
 Evidence of satisfiability for a memory address. More...

const Statsstatistics () const
 Property: Statistics for this solver. More...

void resetStatistics ()
 Resets statistics for this solver. More...

virtual void selfTest ()
 Unit tests. More...

virtual Satisfiable trivially_satisfiable (const std::vector< SymbolicExpr::Ptr > &exprs) ROSE_DEPRECATED("use triviallySatisfiable")

virtual SymbolicExpr::Ptr evidence_for_variable (uint64_t varno) ROSE_DEPRECATED("use evidenceForVariable")

virtual SymbolicExpr::Ptr evidence_for_variable (const SymbolicExpr::Ptr &var) ROSE_DEPRECATED("use evidenceForVariable")

virtual SymbolicExpr::Ptr evidence_for_name (const std::string &) ROSE_DEPRECATED("use evidenceForName")

virtual SymbolicExpr::Ptr evidence_for_address (uint64_t addr) ROSE_DEPRECATED("use evidenceForAddress")

virtual std::vector< std::string > evidence_names () ROSE_DEPRECATED("use evidenceNames")

virtual void clear_evidence () ROSE_DEPRECATED("use clearEvidence")

const Statsget_stats () const ROSE_DEPRECATED("use statistics")

void reset_stats () ROSE_DEPRECATED("use resetStatistics")

void reset_class_stats () ROSE_DEPRECATED("use resetClassStatistics")

const std::string & name () const
 Property: Name of solver for debugging. More...

void name (const std::string &s)
 Property: Name of solver for debugging. More...

bool memoization () const
 Property: Perform memoization. More...

void memoization (bool b)
 Property: Perform memoization. More...

virtual Satisfiable satisfiable (const SymbolicExpr::Ptr &)
 Determines if the specified expressions are all satisfiable, unsatisfiable, or unknown. More...

virtual Satisfiable satisfiable (const std::vector< SymbolicExpr::Ptr > &)
 Determines if the specified expressions are all satisfiable, unsatisfiable, or unknown. More...

virtual void insert (const SymbolicExpr::Ptr &)
 Insert assertions. More...

virtual void insert (const std::vector< SymbolicExpr::Ptr > &)
 Insert assertions. More...

virtual SymbolicExpr::Ptr evidenceForVariable (const SymbolicExpr::Ptr &var)
 Evidence of satisfiability for a bitvector variable. More...

virtual SymbolicExpr::Ptr evidenceForVariable (uint64_t varno)
 Evidence of satisfiability for a bitvector variable. More...

- Public Member Functions inherited from Sawyer::SharedObject
 SharedObject ()
 Default constructor. More...

 SharedObject (const SharedObject &)
 Copy constructor. More...

virtual ~SharedObject ()
 Virtual destructor. More...

SharedObjectoperator= (const SharedObject &)
 Assignment. More...


Static Public Member Functions

static Ptr instance (const std::string &name, const boost::filesystem::path &executable, const std::string &shellArgs="", unsigned linkages=LM_EXECUTABLE)
 Construct a solver using the specified program. More...

- Static Public Member Functions inherited from Rose::BinaryAnalysis::SmtSolver
static Availability availability ()
 Availability of all known solvers. More...

static Ptr instance (const std::string &name)
 Allocate a new solver by name. More...

static Ptr bestAvailable ()
 Best available solver. More...

static LinkMode bestLinkage (unsigned linkages)
 Given a bit vector of linkages, return the best one. More...

static Stats classStatistics ()
 Property: Statistics across all solvers. More...

static void resetClassStatistics ()
 Resets statistics for the class. More...

static void initDiagnostics ()
 Initialize diagnostic output facilities. More...

static Stats get_class_stats () ROSE_DEPRECATED("use classStatistics")


Protected Types

typedef boost::unordered_map< SymbolicExpr::Hash, ExprExprMapMemoizedEvidence


Protected Member Functions

 SmtlibSolver (const std::string &name, const boost::filesystem::path &executable, const std::string &shellArgs="", unsigned linkages=LM_EXECUTABLE)

virtual void parseEvidence () ROSE_OVERRIDE
 Parses evidence of satisfiability. More...

virtual void outputBvxorFunctions (std::ostream &, const std::vector< SymbolicExpr::Ptr > &)
 Generate definitions for bit-wise XOR functions. More...

virtual void outputComparisonFunctions (std::ostream &, const std::vector< SymbolicExpr::Ptr > &)
 Generate functions for comparison of bitvectors. More...

virtual Type mostType (const std::vector< SExprTypePair > &)

virtual SExprTypePair outputCast (const SExprTypePair &, Type to)

virtual std::vector< SExprTypePair > outputCast (const std::vector< SExprTypePair > &, Type to)

virtual std::string typeName (const SymbolicExpr::Ptr &)

virtual SExprTypePair outputExpression (const SymbolicExpr::Ptr &)

virtual std::vector< SmtSolver::SExprTypePair > outputExpressions (const std::vector< SymbolicExpr::Ptr > &)

virtual SExprTypePair outputLeaf (const SymbolicExpr::LeafPtr &)

virtual SExprTypePair outputLeftAssoc (const std::string &func, const SymbolicExpr::InteriorPtr &, Type rettype=NO_TYPE)

virtual SExprTypePair outputLeftAssoc (const std::string &func, const std::vector< SExprTypePair > &, Type rettype=NO_TYPE)

virtual SExprTypePair outputArithmeticShiftRight (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputLogicalShiftRight (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputShiftLeft (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputRotateLeft (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputRotateRight (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputXor (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputBinary (const std::string &func, const SymbolicExpr::InteriorPtr &, Type rettype=NO_TYPE)

virtual SExprTypePair outputUnary (const std::string &funcName, const SExprTypePair &arg)

virtual SExprTypePair outputExtract (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputSignExtend (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputUnsignedExtend (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputIte (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputNotEqual (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputSignedCompare (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputUnsignedCompare (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputZerop (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputMultiply (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputDivide (const SymbolicExpr::InteriorPtr &, const std::string &operation)

virtual SExprTypePair outputModulo (const SymbolicExpr::InteriorPtr &, const std::string &operation)

virtual SExprTypePair outputRead (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputWrite (const SymbolicExpr::InteriorPtr &)

virtual SExprTypePair outputSet (const SymbolicExpr::InteriorPtr &)

virtual void outputVariableDeclarations (std::ostream &, const VariableSet &)

virtual void outputComments (std::ostream &, const std::vector< SymbolicExpr::Ptr > &)

virtual void outputCommonSubexpressions (std::ostream &, const std::vector< SymbolicExpr::Ptr > &)

virtual void outputAssertion (std::ostream &, const SymbolicExpr::Ptr &)

void varForSet (const SymbolicExpr::InteriorPtr &set, const SymbolicExpr::LeafPtr &var)
 Specify variable to use for OP_SET. More...

SymbolicExpr::LeafPtr varForSet (const SymbolicExpr::InteriorPtr &set)
 Specify variable to use for OP_SET. More...

- Protected Member Functions inherited from Rose::BinaryAnalysis::SmtSolver
 SmtSolver (const std::string &name, unsigned linkages)
 Construct with name and linkage. More...

virtual Satisfiable checkExe ()
 Check satisfiability using text files and an executable. More...

virtual Satisfiable checkLib ()
 Check satisfiability using a library API. More...

std::vector< SExpr::PtrparseSExpressions (const std::string &)
 Parse all SExprs from the specified string. More...

virtual void generate_file (std::ostream &, const std::vector< SymbolicExpr::Ptr > &exprs, Definitions *) ROSE_DEPRECATED("use generateFile")

virtual std::string get_command (const std::string &config_name) ROSE_DEPRECATED("use getCommand")

virtual void parse_evidence () ROSE_DEPRECATED("use parseEvidence")


Protected Attributes

ExprExprMap evidence

MemoizedEvidence memoizedEvidence

- Protected Attributes inherited from Rose::BinaryAnalysis::SmtSolver
LinkMode linkage_

std::string outputText_
 Additional output obtained by satisfiable(). More...

std::vector< SExpr::PtrparsedOutput_

TermNames termNames_

Memoization memoization_

bool doMemoization_

SymbolicExpr::Hash latestMemoizationId_

SymbolicExpr::ExprExprHashMap latestMemoizationRewrite_

Stats stats


Additional Inherited Members

- Public Types inherited from Rose::BinaryAnalysis::SmtSolver
enum  LinkMode {
  LM_NONE = 0x0000,
  LM_LIBRARY = 0x0001,
  LM_EXECUTABLE = 0x0002,
  LM_ANY = 0x0003
}
 Bit flags to indicate the kind of solver interface. More...

enum  Type {
  NO_TYPE,
  BOOLEAN,
  BIT_VECTOR,
  MEM_STATE
}
 Type (sort) of expression. More...

enum  Satisfiable {
  SAT_NO =0,
  SAT_YES,
  SAT_UNKNOWN
}
 Satisfiability constants. More...

typedef Sawyer::SharedPointer< SmtSolverPtr
 Reference counting pointer for SMT solvers. More...

typedef std::map< std::string, bool > Availability
 Solver availability map. More...

typedef std::pair< std::string, TypeStringTypePair
 Maps expression nodes to term names. More...

typedef Sawyer::Container::Map< SymbolicExpr::Ptr, StringTypePairTermNames

typedef Sawyer::Container::Map< SymbolicExpr::Ptr, SymbolicExpr::PtrExprExprMap
 Maps one symbolic expression to another. More...

typedef Sawyer::Container::Set< SymbolicExpr::LeafPtr, CompareLeavesByNameVariableSet
 Set of variables. More...

typedef std::set< uint64_t > Definitions
 Free variables that have been defined. More...

typedef std::pair< SExpr::Ptr, TypeSExprTypePair

typedef boost::unordered_map< SymbolicExpr::Hash, SatisfiableMemoization

- Static Public Attributes inherited from Rose::BinaryAnalysis::SmtSolver
static Sawyer::Message::Facility mlog
 Diagnostic facility. More...

- Static Protected Member Functions inherited from Rose::BinaryAnalysis::SmtSolver
static void printSExpression (std::ostream &, const SExpr::Ptr &)
 Print an S-Expr for debugging. More...

static std::vector< SymbolicExpr::PtrnormalizeVariables (const std::vector< SymbolicExpr::Ptr > &, SymbolicExpr::ExprExprHashMap &index)
 Normalize expressions by renaming variables. More...

static std::vector< SymbolicExpr::PtrundoNormalization (const std::vector< SymbolicExpr::Ptr > &, const SymbolicExpr::ExprExprHashMap &index)
 Undo the normalizations that were performed earlier. More...

- Static Protected Attributes inherited from Rose::BinaryAnalysis::SmtSolver
static boost::mutex classStatsMutex

static Stats classStats


Member Function Documentation

static Ptr Rose::BinaryAnalysis::SmtlibSolver::instance ( const std::string &  name,
const boost::filesystem::path &  executable,
const std::string &  shellArgs = "",
unsigned  linkages = LM_EXECUTABLE
)
inlinestatic

Construct a solver using the specified program.

This object will communicate with the SMT solver using SMT-LIB version 2 text files, both for input to the solver and expected output from the solver. Diagnostics from the solver (standard error) are not redirected by the ROSE library. A separate invocation of the solver is used for each satisfiability check.

The executable should be the name of the solver executable, either to be found in $PATH or an absolute file name. Beware that some tools might change directories as they run, so absolute names are usually best. The optional shellArgs are the list of extra arguments to pass to the solver. WARNING: the entire command is pass to popen, which will invoke a shell to process the executable name and arguments; appropriate escaping of shell meta characters is the responsibility of the caller.

Definition at line 41 of file BinarySmtlibSolver.h.

Referenced by create().

virtual Ptr Rose::BinaryAnalysis::SmtlibSolver::create ( ) const
inlinevirtual

Virtual constructor.

Creates a new solver like this one.

Implements Rose::BinaryAnalysis::SmtSolver.

Reimplemented in Rose::BinaryAnalysis::Z3Solver.

Definition at line 49 of file BinarySmtlibSolver.h.

References instance(), Rose::BinaryAnalysis::SmtSolver::linkage(), and Rose::BinaryAnalysis::SmtSolver::name().

virtual void Rose::BinaryAnalysis::SmtlibSolver::reset ( )
virtual

Reset solver state.

Resets the solver to an initial state containing no assertions. The evidence of satisfiability is cleared. For API-based solvers, this function might also create a new solver and/or solver context.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

Reimplemented in Rose::BinaryAnalysis::Z3Solver.

virtual void Rose::BinaryAnalysis::SmtlibSolver::generateFile ( std::ostream &  ,
const std::vector< SymbolicExpr::Ptr > &  exprs,
Definitions
)
virtual

Generates an input file for for the solver.

Usually the input file will be SMT-LIB format, but subclasses might override this to generate some other kind of input. Throws Excecption if the solver does not support an operation that is necessary to determine the satisfiability.

Implements Rose::BinaryAnalysis::SmtSolver.

virtual std::string Rose::BinaryAnalysis::SmtlibSolver::getCommand ( const std::string &  config_name)
virtual

Given the name of a configuration file, return the command that is needed to run the solver.

The first line of stdout emitted by the solver should be the word "sat" or "unsat".

Implements Rose::BinaryAnalysis::SmtSolver.

virtual std::string Rose::BinaryAnalysis::SmtlibSolver::getErrorMessage ( int  exitStatus)
virtual

Error message from running a solver executable.

Given the solver exit status and (implicitly) the output of the solver, either return an error message or the empty string. This can be overridden by subclasses because some solvers exit with non-zero status if you try to get the model when (check-sat) returns not-satisfiable.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

virtual VariableSet Rose::BinaryAnalysis::SmtlibSolver::findVariables ( const SymbolicExpr::Ptr )
virtual

Return all variables that need declarations.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

virtual SymbolicExpr::Ptr Rose::BinaryAnalysis::SmtlibSolver::evidenceForName ( const std::string &  )
virtual

Evidence of satisfiability for a variable or memory address.

If the string starts with the letter 'v' then variable evidence is returned, otherwise the string must be an address. Valid strings are those returned by the evidenceNames method; other strings result in a null return value. Subclasses might define additional methods for obtaining evidence of satisfiability.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

virtual std::vector<std::string> Rose::BinaryAnalysis::SmtlibSolver::evidenceNames ( )
virtual

Names of items for which satisfiability evidence exists.

Returns a vector of strings (variable names or memory addresses) that can be passed to evidenceForName. Not all SMT solvers can return this information, in which case they return an empty vector.

The returned names are only for those variables and addresses whose evidence of satisfiability can be parsed by ROSE. The subclasses provide additional methods for obtaining more detailed information.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

virtual void Rose::BinaryAnalysis::SmtlibSolver::clearEvidence ( )
virtual

Clears evidence information.

Evidence of satisfiability is cleared by calling this function or by calling any function that changes the state of the solver, such as pushing or popping assertion sets, inserting new assertions, or checking satisfiability. Checking satisfiability re-initializes the evidence.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

Reimplemented in Rose::BinaryAnalysis::Z3Solver.

virtual void Rose::BinaryAnalysis::SmtlibSolver::clearMemoization ( )
virtual

Clear memoization table.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

void Rose::BinaryAnalysis::SmtlibSolver::varForSet ( const SymbolicExpr::InteriorPtr set,
const SymbolicExpr::LeafPtr var
)
protected

Specify variable to use for OP_SET.

Each OP_SET needs a free variable to choose from the available members of the set. This function sets (two arguments) or retrives (one argument) the variable associated with a set.

SymbolicExpr::LeafPtr Rose::BinaryAnalysis::SmtlibSolver::varForSet ( const SymbolicExpr::InteriorPtr set)
protected

Specify variable to use for OP_SET.

Each OP_SET needs a free variable to choose from the available members of the set. This function sets (two arguments) or retrives (one argument) the variable associated with a set.

virtual void Rose::BinaryAnalysis::SmtlibSolver::parseEvidence ( )
protectedvirtual

Parses evidence of satisfiability.

Some solvers can emit information about what variable bindings satisfy the expression. This information is parsed by this function and added to a mapping of variable to value.

Reimplemented from Rose::BinaryAnalysis::SmtSolver.

Reimplemented in Rose::BinaryAnalysis::Z3Solver.

virtual void Rose::BinaryAnalysis::SmtlibSolver::outputBvxorFunctions ( std::ostream &  ,
const std::vector< SymbolicExpr::Ptr > &
)
protectedvirtual

Generate definitions for bit-wise XOR functions.

This method scans the supplied list of expressiosn and for each bit-wise XOR operation taking arguments of width n, it emits a binary function definition named "bvxor<em>n</em>".

Reimplemented in Rose::BinaryAnalysis::Z3Solver.

virtual void Rose::BinaryAnalysis::SmtlibSolver::outputComparisonFunctions ( std::ostream &  ,
const std::vector< SymbolicExpr::Ptr > &
)
protectedvirtual

Generate functions for comparison of bitvectors.

Reimplemented in Rose::BinaryAnalysis::Z3Solver.


The documentation for this class was generated from the following file:
