Rosebud::Ast::Class Class Reference

Description

Represents a class definition.

Definition at line 363 of file Ast.h.

#include <Rosebud/Ast.h>

Inheritance diagram for Rosebud::Ast::Class:

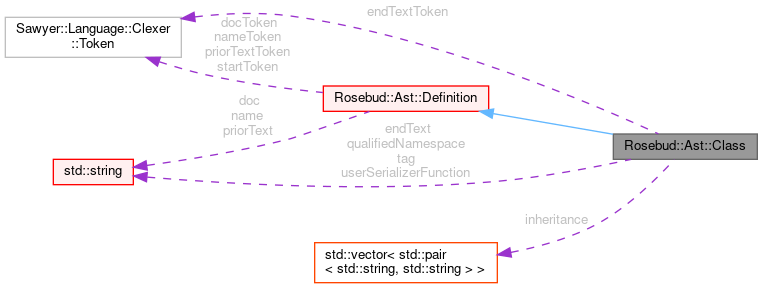

Collaboration diagram for Rosebud::Ast::Class:

Public Types
using	Ptr = ClassPtr
	Shared-ownership pointer.
using	Inheritance = std::vector< std::pair< std::string, std::string > >
	A list of access specifiers and class names used for class inheritance.
Public Types inherited from Rosebud::Ast::Definition
using	Ptr = DefinitionPtr
	Shared-ownership pointer.
Public Types inherited from Rosebud::Ast::Node
using	Ptr = NodePtr
Public Types inherited from Sawyer::Tree::Vertex< Node >
using	UserBase = Node
	User's base class.
using	UserBasePtr = std::shared_ptr< UserBase >
	Pointer to user's base class.
using	TraversalEvent = Sawyer::Tree::TraversalEvent
	Alias for traversal events.

Static Public Member Functions
static Ptr	instance ()
	Allocating constructor.

Public Attributes
EdgeVector< Property >	properties
	Non-null list of zero or more properties.
Inheritance	inheritance
	Information about base classes.
std::string	endText
	Text after the last member definition.
Token	endTextToken
	Token that encloses endText.
std::string	tag
	If non-empty, overrides the tag name for this type.
std::string	qualifiedNamespace
	If non-empty, the qualified namespace in which this class is defined.
Public Attributes inherited from Rosebud::Ast::Definition
Token	startToken
	Token at the start of the definition.
std::string	name
	Unqualified name for the definition.
Token	nameToken
	Token for the definition's unqualified name.
std::string	doc
	Doxygen documentation comment.
Token	docToken
	Token associated with the Doxygen comment.
Edge< CppStack >	cppStack
	C preprocessor pending conditional compilation directives.
std::string	priorText
	Input text before the definition.
Token	priorTextToken
	Token describing the location of the prior text.
EdgeVector< Attribute >	attributes
	Non-null pointer to the list of attributes controlling this property.
Public Attributes inherited from Sawyer::Tree::Vertex< Node >
ReverseEdge	parent
	Pointer to the parent in the tree.

Protected Member Functions
	Class ()
	Default constructor used only by derived classes.
Protected Member Functions inherited from Rosebud::Ast::Definition
	Definition ()
	Default constructor used only by derived classes.
Protected Member Functions inherited from Sawyer::Tree::Vertex< Node >
virtual void	destructorHelper ()

Additional Inherited Members
Public Member Functions inherited from Rosebud::Ast::Definition
AttributePtr	findAttribute (const std::string &fqName)
	Finds an attribute with the specified fully qualified name.
Public Member Functions inherited from Rosebud::Ast::Node
template<class T >
std::shared_ptr< T >	findAncestor ()
Public Member Functions inherited from Sawyer::Tree::Vertex< Node >
UserBasePtr	pointer ()
	Returns a shared pointer to this vertex.
std::shared_ptr< T >	isa ()
	Tests whether this object is a certain type.
auto	traverseReverse (const Visitor &visitor)
	Traverse in reverse direction from children to parents.
auto	traverse (const Visitor &visitor)
	Traverse in forward direction from parents to children.
auto	traversePre (const Visitor &visitor)
	Pre-order forward traversal.
auto	traversePost (const Visitor &visitor)
	Post-order forward traversal.
std::shared_ptr< T >	findFirstAncestor ()
	Traversal that finds the closest ancestor of type T or derived from T.
std::shared_ptr< T >	findLastAncestor ()
	Traversal that finds the farthest ancestor of type T or derived from T.
std::vector< std::shared_ptr< T > >	findDescendants ()
	Traversal that finds all the descendants of a particular type.
UserBasePtr	child (size_t i) const
	Returns the pointer for a child.
size_t	nChildren () const
	Returns the number of children.

Member Typedef Documentation

Ptr

using Rosebud::Ast::Class::Ptr = ClassPtr

Shared-ownership pointer.

Definition at line 366 of file Ast.h.

Inheritance

using Rosebud::Ast::Class::Inheritance = std::vector<std::pair<std::string , std::string> >

A list of access specifiers and class names used for class inheritance.

Definition at line 369 of file Ast.h.

Member Data Documentation

properties

EdgeVector<Property> Rosebud::Ast::Class::properties

Non-null list of zero or more properties.

Definition at line 373 of file Ast.h.

inheritance

Inheritance Rosebud::Ast::Class::inheritance

Information about base classes.

Definition at line 376 of file Ast.h.

endText

std::string Rosebud::Ast::Class::endText

Text after the last member definition.

This is the input text that appears after the last property definition and before the end of the entire class definition. It ends just before the closing curly brace for the class definition. If the class has no properties, then this is the entire body of the class definition (everthing between the opening and closing curly braces, excluding the braces).

The text is modified by removing trailing white space from each line, replacing consecutive blank lines with a single blank line, and removing leading and trailing blank lines.

Definition at line 386 of file Ast.h.

endTextToken

Token Rosebud::Ast::Class::endTextToken

Token that encloses endText.

This generated token of type TOK_OTHER encloses the file content that produced endText.

Definition at line 391 of file Ast.h.

tag

std::string Rosebud::Ast::Class::tag

If non-empty, overrides the tag name for this type.

Definition at line 394 of file Ast.h.

qualifiedNamespace

std::string Rosebud::Ast::Class::qualifiedNamespace

If non-empty, the qualified namespace in which this class is defined.

Definition at line 397 of file Ast.h.

---

The documentation for this class was generated from the following file:

• Ast.h
