Description

Semantic values for generating static semantic ASTs.

Each SValue has a pointer to a partly-constructed AST. In general, the parent pointers in these AST nodes are not initialized because many of these nodes are being shared across multiple subtrees. ROSE's instruction semantics framework relies very heavily on node sharing, but the AST was not designed for this. Do not expect AST traversals and analysis to work correctly for ASTs pointed to by an SValue. But never fear, the SValue's AST will be fixed when it's actually attached to an instruction node.

Definition at line 72 of file StaticSemantics2.h.

#include <StaticSemantics2.h>

Inheritance diagram for Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue:

[legend]

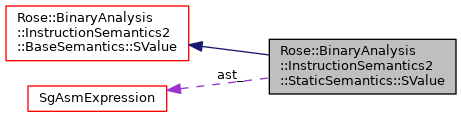

Collaboration diagram for Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue:

[legend]

Public Member Functions
virtual BaseSemantics::SValuePtr	bottom_ (size_t nbits) const ROSE_OVERRIDE
	Data-flow bottom value. More...

virtual BaseSemantics::SValuePtr	undefined_ (size_t nbits) const ROSE_OVERRIDE
	Create a new undefined semantic value. More...

virtual BaseSemantics::SValuePtr	unspecified_ (size_t nbits) const ROSE_OVERRIDE
	Create a new unspecified semantic value. More...

virtual BaseSemantics::SValuePtr	number_ (size_t nbits, uint64_t value) const ROSE_OVERRIDE
	Create a new concrete semantic value. More...

virtual BaseSemantics::SValuePtr	boolean_ (bool value) const ROSE_OVERRIDE
	Create a new, Boolean value. More...

virtual BaseSemantics::SValuePtr	copy (size_t new_width=0) const ROSE_OVERRIDE
	Create a new value from an existing value, changing the width if `new_width` is non-zero. More...

virtual Sawyer::Optional< BaseSemantics::SValuePtr >	createOptionalMerge (const BaseSemantics::SValuePtr &, const BaseSemantics::MergerPtr &, const SmtSolverPtr &) const ROSE_OVERRIDE
	Possibly create a new value by merging two existing values. More...

virtual bool	may_equal (const BaseSemantics::SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const ROSE_OVERRIDE
	Returns true if two values could be equal. More...

virtual bool	must_equal (const BaseSemantics::SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const ROSE_OVERRIDE
	Returns true if two values must be equal. More...

virtual void	set_width (size_t nbits) ROSE_OVERRIDE
	Accessor for value width.

virtual bool	isBottom () const ROSE_OVERRIDE
	Determines whether a value is a data-flow bottom. More...

virtual bool	is_number () const ROSE_OVERRIDE
	Determines if the value is a concrete number. More...

virtual uint64_t	get_number () const ROSE_OVERRIDE
	Return the concrete number for this value. More...

virtual void	print (std::ostream &, BaseSemantics::Formatter &) const ROSE_OVERRIDE
	Print a value to a stream using default format. More...


virtual SgAsmExpression *	ast ()
	Property: Abstract syntax tree.

virtual void	ast (SgAsmExpression *x)
	Property: Abstract syntax tree.

Public Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue
SValuePtr	createMerged (const SValuePtr &other, const MergerPtr &merger, const SmtSolverPtr &solver) const
	Create a new value by merging two existing values. More...

bool	isTrue () const
	Returns true if concrete non-zero. More...

bool	isFalse () const
	Returns true if concrete zero. More...

virtual size_t	get_width () const
	Accessor for value width.

void	print (std::ostream &stream) const
	Print a value to a stream using default format. More...

WithFormatter	with_format (Formatter &fmt)
	Used for printing values with formatting. More...

WithFormatter	operator+ (Formatter &fmt)
	Used for printing values with formatting. More...

virtual std::string	get_comment () const
	Some subclasses support the ability to add comments to values. More...

virtual void	set_comment (const std::string &) const
	Some subclasses support the ability to add comments to values. More...

Public Member Functions inherited from Sawyer::SharedObject
	SharedObject ()
	Default constructor. More...

	SharedObject (const SharedObject &)
	Copy constructor. More...

virtual	~SharedObject ()
	Virtual destructor. More...

SharedObject &	operator= (const SharedObject &)
	Assignment. More...

Public Member Functions inherited from Sawyer::SharedFromThis< SValue >
SharedPointer< SValue >	sharedFromThis ()
	Create a shared pointer from `this`. More...

SharedPointer< const SValue >	sharedFromThis () const
	Create a shared pointer from `this`. More...

Static Public Member Functions
static SValuePtr	instance ()
	Instantiate a prototypical SValue. More...

static SValuePtr	instance_bottom (size_t nbits)
	Instantiate a data-flow bottom value. More...

static SValuePtr	instance_undefined (size_t nbits)
	Instantiate an undefined value. More...

static SValuePtr	instance_unspecified (size_t nbits)
	Instantiate an unspecified value. More...

static SValuePtr	instance_integer (size_t nbits, uint64_t value)
	Instantiate an integer constant. More...

static SValuePtr	promote (const BaseSemantics::SValuePtr &v)
	Promote a base value to a static semantics value. More...

Static Public Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue
static SValuePtr	promote (const SValuePtr &x)

Static Public Member Functions inherited from Sawyer::SmallObject
static SynchronizedPoolAllocator &	poolAllocator ()
	Return the pool allocator for this class. More...

static void *	operator new (size_t size)

static void	operator delete (void *ptr, size_t size)

Protected Member Functions
	SValue (size_t nbits, SgAsmRiscOperation::RiscOperator op)

	SValue (size_t nbits, uint64_t number)

	SValue (const SValue &other)

Protected Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue
	SValue ()
	Width of the value in bits. More...

	SValue (size_t nbits)

	SValue (const SValue &other)

Protected Attributes
SgAsmExpression *	ast_

Protected Attributes inherited from Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue
size_t	width

Additional Inherited Members
Public Types inherited from Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue
typedef SValuePtr	Ptr
	Shared-ownership pointer for an SValue object. More...

Member Function Documentation

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::instance ( )

inlinestatic

Instantiate a prototypical SValue.

This SValue will be used only for its virtual constructors and will never appear in an expression.

Definition at line 99 of file StaticSemantics2.h.

References Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue::SValue().

Referenced by Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::RiscOperators::instance().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::instance_bottom ( size_t nbits )

inlinestatic

Instantiate a data-flow bottom value.

Definition at line 104 of file StaticSemantics2.h.

References Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue::SValue().

Referenced by bottom_().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::instance_undefined ( size_t nbits )

inlinestatic

Instantiate an undefined value.

Undefined values end up being a SgAsmRiscOperation of type OP_undefined which has a single child which is an integer identification number. This allows two such nodes in the AST to be resolved to the same or different undefined value by virtue of their ID number.

Definition at line 113 of file StaticSemantics2.h.

References Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue::SValue().

Referenced by undefined_().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::instance_unspecified ( size_t nbits )

inlinestatic

Instantiate an unspecified value.

Unspecified values end up being a SgAsmRiscOperation of type OP_unspecified which has a single child which is an integer identification number. This allows two such nodes in the AST to be resolved to the same or different unspecified value by virtue of their ID number.

Definition at line 122 of file StaticSemantics2.h.

References Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue::SValue().

Referenced by unspecified_().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::instance_integer	(	size_t	nbits,
		uint64_t	value
	)

inlinestatic

Instantiate an integer constant.

Definition at line 127 of file StaticSemantics2.h.

References Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue::SValue().

Referenced by boolean_(), and number_().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::bottom_ ( size_t nBits ) const

inlinevirtual

Data-flow bottom value.

Returns a new value that represents bottom in a data-flow analysis. If a semantic domain can represent a bottom value then the isBottom predicate is true when invoked on this method's return value. If a semantic domain cannot support a bottom value, then it may return some other value.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 132 of file StaticSemantics2.h.

References instance_bottom().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::undefined_ ( size_t nbits ) const

inlinevirtual

Create a new undefined semantic value.

The new semantic value will have the same dynamic type as the value on which this virtual method is called. This is the most common way that a new value is created. The unspecified_ method is closely related.

See also: unspecified_

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 135 of file StaticSemantics2.h.

References instance_undefined().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::unspecified_ ( size_t nbits ) const

inlinevirtual

Create a new unspecified semantic value.

The new semantic value will have the same dynamic type as the value on which this virtual method is called. Undefined (undefined_) and unspecified are closely related. Unspecified values are the same as undefined values except they're instantiated as the result of some machine instruction where the ISA documentation indicates that the value is unspecified (e.g., status flags for x86 shift and rotate instructions).

Most semantic domains make no distinction between undefined and unspecified.

See also: undefined_

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 138 of file StaticSemantics2.h.

References instance_unspecified().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::number_	(	size_t	nbits,
		uint64_t	number
	)		const

inlinevirtual

Create a new concrete semantic value.

The new value will represent the specified concrete value and have the same dynamic type as the value on which this virtual method is called. This is the most common way that a new constant is created. The number is truncated to contain nbits bits (higher order bits are cleared).

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 141 of file StaticSemantics2.h.

References instance_integer().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::boolean_ ( bool value ) const

inlinevirtual

Create a new, Boolean value.

The new semantic value will have the same dynamic type as the value on which this virtual method is called. This is how 1-bit flag register values (among others) are created. The base implementation uses number_() to construct a 1-bit value whose bit is zero (false) or one (true).

Reimplemented from Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 144 of file StaticSemantics2.h.

References instance_integer().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::copy ( size_t new_width = 0 ) const

inlinevirtual

Create a new value from an existing value, changing the width if new_width is non-zero.

Increasing the width logically adds zero bits to the most significant side of the value; decreasing the width logically removes bits from the most significant side of the value.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 147 of file StaticSemantics2.h.

References Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue::SValue().

virtual Sawyer::Optional<BaseSemantics::SValuePtr> Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::createOptionalMerge	(	const BaseSemantics::SValuePtr &	other,
		const BaseSemantics::MergerPtr &	merger,
		const SmtSolverPtr &	solver
	)		const

inlinevirtual

Possibly create a new value by merging two existing values.

This method optionally returns a new semantic value as the data-flow merge of this and other. If the two inputs are "equal" in some sense of the dataflow implementation then nothing is returned, otherwise a new value is returned. Typical usage is like this:

 if (SValuePtr merged = v1->createOptionalMerge(v2).orDefault()) {
     std::cout <<"v1 and v2 were merged to " <<*merged <<"\n";
 } else {
     std::cout <<"no merge is necessary\n";
 }
 or
@code
 SValuePtr merge;
 if (v1->createOptionalMerge(v2).assignTo(merged)) {
     std::cout <<"v1 and v2 were merged to " <<*merged <<"\n";
 } else {
     std::cout <<"v1 and v2 are equal in some sense (no merge necessary)\n";
 }

If you always want a copy regardless of whether the merge is necessary, then use the createMerged convenience function instead.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 154 of file StaticSemantics2.h.

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::promote ( const BaseSemantics::SValuePtr & v )

inlinestatic

Promote a base value to a static semantics value.

Definition at line 161 of file StaticSemantics2.h.

References Sawyer::SharedPointer< T >::dynamicCast().

virtual bool Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::may_equal	(	const BaseSemantics::SValuePtr &	other,
		const SmtSolverPtr &	solver = `SmtSolverPtr()`
	)		const

inlinevirtual

Returns true if two values could be equal.

The SMT solver is optional for many subclasses.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 169 of file StaticSemantics2.h.

virtual bool Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::must_equal	(	const BaseSemantics::SValuePtr &	other,
		const SmtSolverPtr &	solver = `SmtSolverPtr()`
	)		const

inlinevirtual

Returns true if two values must be equal.

The SMT solver is optional for many subclasses.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 174 of file StaticSemantics2.h.

virtual bool Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::isBottom ( ) const

inlinevirtual

Determines whether a value is a data-flow bottom.

Returns true if this value represents a bottom value for data-flow analysis. Any RiscOperation performed on an operand whose isBottom predicate returns true will itself return a bottom value. This includes operations like "xor x x" which would normally return zero.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 183 of file StaticSemantics2.h.

virtual bool Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::is_number ( ) const

inlinevirtual

Determines if the value is a concrete number.

Concrete numbers can be created with the number_(), boolean_() virtual constructors, or by other means.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 187 of file StaticSemantics2.h.

virtual uint64_t Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::get_number ( ) const

inlinevirtual

Return the concrete number for this value.

Only values for which is_number() returns true are able to return a concrete value by this method.

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

Definition at line 191 of file StaticSemantics2.h.

virtual void Rose::BinaryAnalysis::InstructionSemantics2::StaticSemantics::SValue::print	(	std::ostream &	,
		BaseSemantics::Formatter &
	)		const

virtual

Print a value to a stream using default format.

The value will normally occupy a single line and not contain leading space or line termination. See also, with_format().

Implements Rose::BinaryAnalysis::InstructionSemantics2::BaseSemantics::SValue.

The documentation for this class was generated from the following file:

StaticSemantics2.h

Description

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation
