Description

MIPS32 instruction decoder.

MIPS (Microprocessor without Interlocked Pipelined Stages) is a family of reduced instruction set computer (RISC) instruction set architectures (ISA) developed by MIPS Computer Systems, now MIPS Technologies, based in the United States.

There are multiple versions of MIPS: including MIPS I, II, III, IV, and V; as well as five releases of MIPS32/64 (for 32- and 64-bit implementations, respectively). The early MIPS architectures were 32-bit; 64-bit versions were developed later. As of April 2017, the current version of MIPS is MIPS32/64 Release 6. MIPS32/64 primarily differs from MIPS I–V by defining the privileged kernel mode System Control Coprocessor in addition to the user mode architecture.

The MIPS architecture has several optional extensions. MIPS-3D which is a simple set of floating-point SIMD instructions dedicated to common 3D tasks, MDMX (MaDMaX) which is a more extensive integer SIMD instruction set using the 64-bit floating-point registers, MIPS16e which adds compression to the instruction stream to make programs take up less room, and MIPS MT, which adds multithreading capability.

The first release of MIPS32, based on MIPS II, added conditional moves, prefetch instructions, and other features from the R4000 and R5000 families of 64-bit processors. The MUL and MADD (multiply-add) instructions, previously available in some implementations, were added to the MIPS32 specifications, as were cache control instructions. For the purpose of cache control, both SYNC and SYNCI instructions were prepared.

Definition at line 37 of file Disassembler/Mips.h.

#include <Rose/BinaryAnalysis/Disassembler/Mips.h>

Inheritance diagram for Rose::BinaryAnalysis::Disassembler::Mips:

[legend]

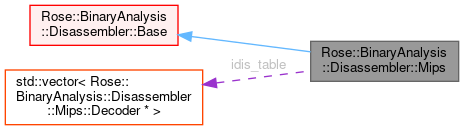

Collaboration diagram for Rose::BinaryAnalysis::Disassembler::Mips:

[legend]

Classes
class	Decoder
	Interface for disassembling a single instruction. More...

Public Types
using	Ptr = MipsPtr
	Reference counting pointer.

Public Types inherited from Rose::BinaryAnalysis::Disassembler::Base
using	Ptr = BasePtr

Public Member Functions
virtual Base::Ptr	clone () const override
	Creates a new copy of a disassembler.

virtual SgAsmInstruction *	disassembleOne (const MemoryMap::Ptr &, rose_addr_t start_va, AddressSet *successors=NULL) override
	This is the lowest level disassembly function and is implemented in the architecture-specific subclasses.

virtual size_t	nDelaySlots (MipsInstructionKind)

virtual SgAsmInstruction *	makeUnknownInstruction (const Exception &) override
	Makes an unknown instruction from an exception.

SgAsmMipsInstruction *	makeUnknownInstruction (rose_addr_t insn_va, unsigned opcode) const

Decoder *	find_idis (rose_addr_t insn_va, unsigned insn_bits) const
	Find an instruction-specific disassembler.

void	insert_idis (Decoder *, bool replace=false)
	Insert an instruction-specific disassembler.

SgAsmMipsInstruction *	disassemble_insn (Address insn_va, unsigned insn_bits, const std::vector< uint8_t > &bytes) const
	Disassemble a single instruction.

SgAsmMipsInstruction *	makeInstruction (rose_addr_t insn_va, MipsInstructionKind, SgAsmExpression arg1=NULL, SgAsmExpression arg2=NULL, SgAsmExpression arg3=NULL, SgAsmExpression arg4=NULL) const
	Create a new instruction.

SgAsmType *	makeType (MipsDataFormat) const
	Create a ROSE type form a MIPS data format.

SgAsmRegisterReferenceExpression *	makeRegister (rose_addr_t insn_va, unsigned regnum) const
	Create a new general purpose register reference expression.

SgAsmRegisterReferenceExpression *	makeFpRegister (rose_addr_t insn_va, unsigned regnum, MipsDataFormat) const
	Create a new floating point register reference expression.

SgAsmRegisterReferenceExpression *	makeCp0Register (rose_addr_t insn_va, unsigned regnum, unsigned sel) const
	Create a new register reference for Coprocessor 0.

SgAsmRegisterReferenceExpression *	makeCp2Register (unsigned regnum) const
	Create a new register reference for Coprocessor 2.

SgAsmRegisterReferenceExpression *	makeFpccRegister (rose_addr_t insn_va, unsigned cc) const
	Create a new floating point condition flag register reference expression.

SgAsmRegisterReferenceExpression *	makeCp2ccRegister (unsigned cc) const
	Create a new register reference for a COP2 condition code.

SgAsmRegisterReferenceExpression *	makeHwRegister (unsigned regnum) const
	Create a new register reference for a hardware register.

SgAsmRegisterReferenceExpression *	makeShadowRegister (rose_addr_t insn_va, unsigned regnum) const
	Create a new register reference for a shadow GPR.

SgAsmIntegerValueExpression *	makeImmediate8 (unsigned value, size_t bit_offset, size_t nbits) const
	Create a new 8-bit value expression from an 8-bit value.

SgAsmIntegerValueExpression *	makeImmediate16 (unsigned value, size_t bit_offset, size_t nbits) const
	Create a new 16-bit value expression from a 16-bit value.

SgAsmIntegerValueExpression *	makeImmediate32 (unsigned value, size_t bit_offset, size_t nbits) const
	Create a new 32-bit value expression from a 32-bit value.

SgAsmIntegerValueExpression *	makeBranchTargetRelative (rose_addr_t insn_va, unsigned offset16, size_t bit_offset, size_t nbits) const
	Create a 32-bit PC-relative branch target address from a 16-bit offset.

SgAsmIntegerValueExpression *	makeBranchTargetAbsolute (rose_addr_t insn_va, unsigned insn_index, size_t bit_offset, size_t nbits) const
	Create a 32-bit branch address from an instruction index value.

SgAsmBinaryAdd *	makeRegisterOffset (rose_addr_t insn_va, unsigned gprnum, unsigned offset16) const
	Build an expression for an offset from a register.

SgAsmBinaryAdd *	makeRegisterIndexed (rose_addr_t insn_va, unsigned base_gprnum, unsigned index_gprnum) const
	Build a register index expression.

SgAsmMemoryReferenceExpression *	makeMemoryReference (SgAsmExpression addr, SgAsmType type) const
	Build a memory reference expression.

Public Member Functions inherited from Rose::BinaryAnalysis::Disassembler::Base
Architecture::BaseConstPtr	architecture () const
	Property: Architecture.

virtual const std::string &	name () const
	Property: Name.

virtual size_t	bytesPerWord () const
	Property: Bytes per word for the architecture.

virtual ByteOrder::Endianness	byteOrder () const
	Property: Byte order of memory.

Unparser::BasePtr	unparser () const
	Unparser.

size_t	instructionAlignment () const
	Property: Instruction alignment requirement.

SgAsmInstruction *	disassembleOne (const unsigned char buf, rose_addr_t buf_va, size_t buf_size, rose_addr_t start_va, AddressSet successors=NULL)
	Similar in functionality to the disassembleOne method that takes a MemoryMap argument, except the content buffer is mapped 1:1 to virtual memory beginning at the specified address.

void	mark_referenced_instructions (SgAsmInterpretation *, const MemoryMap::Ptr &, const InstructionMap &)
	Marks parts of the file that correspond to instructions as having been referenced.

AddressSet	get_block_successors (const InstructionMap &, bool &complete)
	Calculates the successor addresses of a basic block and adds them to a successors set.

size_t	wordSizeBytes () const

RegisterDictionaryPtr	registerDictionary () const

virtual RegisterDescriptor	instructionPointerRegister () const

virtual RegisterDescriptor	stackPointerRegister () const

virtual RegisterDescriptor	stackFrameRegister () const

virtual RegisterDescriptor	stackSegmentRegister () const

virtual RegisterDescriptor	callReturnRegister () const

Public Member Functions inherited from Sawyer::SharedObject
	SharedObject ()
	Default constructor.

	SharedObject (const SharedObject &)
	Copy constructor.

virtual	~SharedObject ()
	Virtual destructor.

SharedObject &	operator= (const SharedObject &)
	Assignment.

Static Public Member Functions
static Ptr	instance (const Architecture::BaseConstPtr &)
	Allocating constructor for MIPS decoder.

Static Public Member Functions inherited from Rose::BinaryAnalysis::Disassembler::Base
static SgAsmInstruction *	find_instruction_containing (const InstructionMap &insns, rose_addr_t va)
	Finds the highest-address instruction that contains the byte at the specified virtual address.

Protected Member Functions
	Mips (const Architecture::BaseConstPtr &)

void	init ()

Protected Member Functions inherited from Rose::BinaryAnalysis::Disassembler::Base
	Base (const Architecture::BaseConstPtr &)

Protected Attributes
std::vector< Decoder * >	idis_table
	Table of instruction-specific disassemblers.

Protected Attributes inherited from Rose::BinaryAnalysis::Disassembler::Base
RegisterDescriptor	REG_IP

RegisterDescriptor	REG_SP

RegisterDescriptor	REG_SS

RegisterDescriptor	REG_SF

RegisterDescriptor	REG_LINK
	Register descriptors initialized during construction.

size_t	instructionAlignment_ = 1
	Positive alignment constraint for instruction addresses.

Member Typedef Documentation

◆ Ptr

using Rose::BinaryAnalysis::Disassembler::Mips::Ptr = MipsPtr

Reference counting pointer.

Definition at line 40 of file Disassembler/Mips.h.

Member Function Documentation

◆ instance()

static Ptr Rose::BinaryAnalysis::Disassembler::Mips::instance ( const Architecture::BaseConstPtr & )

static

Allocating constructor for MIPS decoder.

MIPS executables can be big- or little-endian.

◆ clone()

virtual Base::Ptr Rose::BinaryAnalysis::Disassembler::Mips::clone ( ) const

overridevirtual

Creates a new copy of a disassembler.

The new copy has all the same settings as the original.

Thread safety: The thread safety of this virtual method depends on the implementation in the subclass.

Implements Rose::BinaryAnalysis::Disassembler::Base.

◆ disassembleOne()

virtual SgAsmInstruction * Rose::BinaryAnalysis::Disassembler::Mips::disassembleOne	(	const MemoryMap::Ptr &	map,
		rose_addr_t	start_va,
		AddressSet *	successors = `NULL`
	)

overridevirtual

This is the lowest level disassembly function and is implemented in the architecture-specific subclasses.

It disassembles one instruction at the specified virtual address. The map is a mapping from virtual addresses to buffer and enables instructions to span file segments that are mapped contiguously in virtual memory by the loader but which might not be contiguous in the file. The instruction's successor virtual addresses are added to the optional successor set (note that successors of an individual instruction can also be obtained via Architecture::Base::getSuccessors). If the instruction cannot be disassembled then an exception is thrown and the successors set is not modified.

Thread safety: The safety of this method depends on its implementation in the subclass. In any case, no other thread can be modifying the MemoryMap or successors set at the same time.

Implements Rose::BinaryAnalysis::Disassembler::Base.

◆ makeUnknownInstruction()

virtual SgAsmInstruction * Rose::BinaryAnalysis::Disassembler::Mips::makeUnknownInstruction ( const Exception & )

overridevirtual

Makes an unknown instruction from an exception.

Thread safety: The safety of this method depends on its implementation in the subclass.

Implements Rose::BinaryAnalysis::Disassembler::Base.

◆ find_idis()

Decoder * Rose::BinaryAnalysis::Disassembler::Mips::find_idis	(	rose_addr_t	insn_va,
		unsigned	insn_bits
	)		const

Find an instruction-specific disassembler.

Using the specified instruction bits, search for and return an instruction-specific disassembler. Returns null if no appropriate disassembler can be found. Instruction-specific disassemblers know how to disassemble specific instruction types (or groups of closely related instructions).

◆ insert_idis()

void Rose::BinaryAnalysis::Disassembler::Mips::insert_idis	(	Decoder *	,
		bool	replace = `false`
	)

Insert an instruction-specific disassembler.

If replace is false (the default) then the table must not already contain an entry that has the same mask and match values. The pointers are managed by the caller and must not be deleted while they are in the table.

◆ disassemble_insn()

SgAsmMipsInstruction * Rose::BinaryAnalysis::Disassembler::Mips::disassemble_insn	(	Address	insn_va,
		unsigned	insn_bits,
		const std::vector< uint8_t > &	bytes
	)		const

Disassemble a single instruction.

Given the bits of a MIPS32 instruction, attempt to disassemble the instruction. If the bits can be disassembled, then a new SgAsmMipsInstruction is returned, otherwise it returns the null pointer. It may also throw an exception if a valid instruction-specific disassembler can be found but the instruction is malformed.

◆ makeFpccRegister()

SgAsmRegisterReferenceExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeFpccRegister	(	rose_addr_t	insn_va,
		unsigned	cc
	)		const

Create a new floating point condition flag register reference expression.

The return value is a reference to one of the bits from the FCSR register. If cc is zero then bit 23 is referenced, otherwise bit 24+cc is referenced. The cc value must be zero through seven, inclusive.

◆ makeCp2ccRegister()

SgAsmRegisterReferenceExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeCp2ccRegister ( unsigned cc ) const

Create a new register reference for a COP2 condition code.

See COP2ConditionCode() in the MIPS reference manual.

◆ makeHwRegister()

SgAsmRegisterReferenceExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeHwRegister ( unsigned regnum ) const

Create a new register reference for a hardware register.

See the RDHWR instruction documentation.

◆ makeImmediate8()

SgAsmIntegerValueExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeImmediate8	(	unsigned	value,
		size_t	bit_offset,
		size_t	nbits
	)		const

Create a new 8-bit value expression from an 8-bit value.

The bit_offset and nbits indicate where the value originally came from in the instruction.

◆ makeImmediate16()

SgAsmIntegerValueExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeImmediate16	(	unsigned	value,
		size_t	bit_offset,
		size_t	nbits
	)		const

Create a new 16-bit value expression from a 16-bit value.

The bit_offset and nbits indicate where the value originally came from in the instruction.

◆ makeImmediate32()

SgAsmIntegerValueExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeImmediate32	(	unsigned	value,
		size_t	bit_offset,
		size_t	nbits
	)		const

Create a new 32-bit value expression from a 32-bit value.

The bit_offset and nbits indicate where the value originally came from in the instruction.

◆ makeBranchTargetRelative()

SgAsmIntegerValueExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeBranchTargetRelative	(	rose_addr_t	insn_va,
		unsigned	offset16,
		size_t	bit_offset,
		size_t	nbits
	)		const

Create a 32-bit PC-relative branch target address from a 16-bit offset.

The bit_offset and nbits indicate where the value originally came from in the instruction (usually 0 and 16, respectively). The return address is the address of the delay slot plus four times the signed offset16.

◆ makeBranchTargetAbsolute()

SgAsmIntegerValueExpression * Rose::BinaryAnalysis::Disassembler::Mips::makeBranchTargetAbsolute	(	rose_addr_t	insn_va,
		unsigned	insn_index,
		size_t	bit_offset,
		size_t	nbits
	)		const

Create a 32-bit branch address from an instruction index value.

The returned value is the insn_index (nbits wide) multiplied by four and then combined with the address of the delay slot. They are combined such that the low-order nbits+2 bits are from the product and the upper bits are from the delay slot address.

◆ makeRegisterOffset()

SgAsmBinaryAdd * Rose::BinaryAnalysis::Disassembler::Mips::makeRegisterOffset	(	rose_addr_t	insn_va,
		unsigned	gprnum,
		unsigned	offset16
	)		const

Build an expression for an offset from a register.

The return value is GPR[regnum]+signExtend(offset) expressed as an SgAsmBinaryAdd expression whose first operand is the register reference expression and second operand is the sign-extended offset.

◆ makeRegisterIndexed()

SgAsmBinaryAdd * Rose::BinaryAnalysis::Disassembler::Mips::makeRegisterIndexed	(	rose_addr_t	insn_va,
		unsigned	base_gprnum,
		unsigned	index_gprnum
	)		const

Build a register index expression.

The returned value is makeRegister(base_gprnum)+makeRegister(index_gprnum).

Member Data Documentation

◆ idis_table

std::vector<Decoder*> Rose::BinaryAnalysis::Disassembler::Mips::idis_table

protected

Table of instruction-specific disassemblers.

This is the table of instruction-specific disassemblers consulted by find_idis().

Definition at line 173 of file Disassembler/Mips.h.

The documentation for this class was generated from the following file:

Disassembler/Mips.h

Description

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Member Typedef Documentation

◆ Ptr

Member Function Documentation

◆ instance()

◆ clone()

◆ disassembleOne()

◆ makeUnknownInstruction()

◆ find_idis()

◆ insert_idis()

◆ disassemble_insn()

◆ makeFpccRegister()

◆ makeCp2ccRegister()

◆ makeHwRegister()

◆ makeImmediate8()

◆ makeImmediate16()

◆ makeImmediate32()

◆ makeBranchTargetRelative()

◆ makeBranchTargetAbsolute()

◆ makeRegisterOffset()

◆ makeRegisterIndexed()

Member Data Documentation

◆ idis_table
